Choose Your Top Style — 20x40
The 20x40 West Coast Frame Tent with an Expandable Sectional Top gives rental operators 800 sq ft of commercial-grade covered space — enough for 6-8 stations, a seated dinner of 80, or a cocktail reception for 114 Guests. Instead of one continuous vinyl top, the canopy is built from multiple fastened panels that zip and lace together into a single weather-tight roof — the same clear-span, no-center-pole West Coast Frame you already know, with a top built to grow and to repair section by section.
Each panel connects to its neighbor with a reinforced hook-and-loop and lacing seam, creating a tight seal that performs like a one-piece top in wind and rain while staying easy to fold, box, and move. If one panel gets torn, stained, or sun-damaged after a few rental seasons, you replace that section — not the entire canopy.
Why Rental Operators Choose the Sectional Top
Built to expand: Add matching bay sections later to extend the tent's length as your inventory or event needs grow, without buying a whole new frame.
Lower cost of ownership: A damaged or worn panel is replaced individually — you're not writing off an entire top over one bad rental.
Easier to handle and store: Smaller folded panels are lighter to carry, easier to fit in a cargo trailer, and simpler for a two-person crew to manage than one large one-piece top.
Same commercial-grade seal: 16 oz / 540 gsm PVC blockout vinyl panels, fastened with a weatherproof hook-and-loop and lacing system engineered to hold a tight, professional-looking roofline.
7' or 8' eave height: Match the tent profile to your venue and event type — both pole heights are available on the Sectional Top.
| Feature |
Expandable Sectional Top |
1-Piece Top |
| Expand length later with add-on bays |
✔ Yes — built for it |
✘ Requires a new top |
| Replace a damaged section |
✔ Swap one panel |
✘ Replace the whole top |
| Folded panel size for transport/storage |
✔ Smaller, easier to handle |
~ One large fold |
| Weathertight seal |
✔ Reinforced panel seams |
✔ Continuous seam |
| Best fit for |
Growing rental fleets, long-term/semi-permanent installs |
Single fixed footprint, simplest setup |
| Beyond Tent price (20x40) |
$5799.93 – $6554.99 |
$5,301.97 – $6,057.03 |
Technical Resources & Downloads
| Size |
20 ft x 40 ft |
| Square Footage |
800 sq ft |
| Tent Top Construction |
Expandable Sectional (Multi-Panel) Top — fastened, weather-tight panel seams |
| Eave Height |
7 ft or 8 ft |
| Overall Peak Height |
12 ft (7' eave) / 13 ft (8' eave) |
| Pitch |
5 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Hook-and-Loop Attachment |
Yes — reinforced perimeter Hook-and-Loop Attachment for sidewalls |
| Replaceable Hook-and-Loop Attachment |
Yes |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

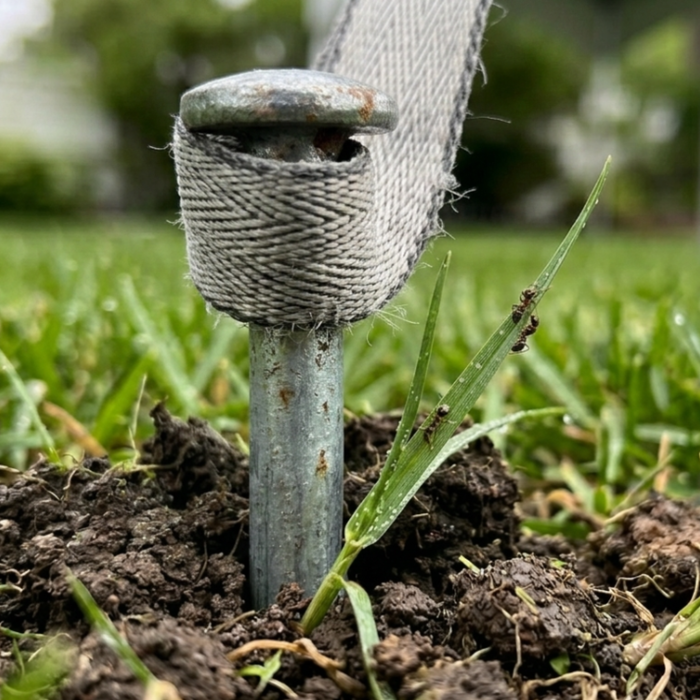

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes — add matching sectional bays to extend length (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
4-6 People |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
1-2 Days |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
6-8 Stations |
| Banquet Seating (60" rounds) |
80 Guests |
| Theatre / Ceremony Seating |
133 Guests |
| Standing / Cocktail Reception |
114 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$1000 |
| Break-Even Point |
6 Rentals |
| Estimated Annual Revenue (30 events) |
$30,000 / year |
| Feature |
Beyond Tent 20x40 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Growing Rental Fleet |
Start with the 20x40 footprint and add matching sectional bays later as inventory demand grows |
| Long-Term / Semi-Permanent Install |
Individual panels can be replaced over a multi-season deployment without re-topping the whole tent |
| Vendor Market |
6-8 Stations side-by-side vendor stations under one commercial canopy |
| Seated Outdoor Dinner |
Banquet layout for up to 80 Guests |
| Outdoor Ceremony |
Ceremony canopy for up to 133 Guests theatre-style |
| Festival Food Court |
Multi-vendor food and beverage section at large events |
| Wedding Reception |
Cocktail or seated reception for groups up to 114 Guests standing |
| Equipment Staging |
Protected zone for staging large event logistics |
Browse the Full West Coast Frame Tent Lineup
Choose Your Top Style — 20x40
Frequently Asked Questions — 20x40 Expandable Sectional Top
What's the difference between the 20x40 Sectional Top and the 1-Piece Top?
The 1-Piece Top is one continuous vinyl canopy. The Expandable Sectional Top is built from multiple panels fastened together with a reinforced hook-and-loop and lacing seam, giving the same weather-tight coverage while allowing individual panels to be replaced and the tent to be expanded with matching bays later.
Can I expand the 20x40 Sectional Top later?
Yes. That's the core advantage of the sectional design — you can add matching bay sections to extend the tent's length as your rental fleet or event footprint grows, instead of buying an entirely new top. Contact us for a configuration quote.
How do I replace a damaged sectional panel?
Because the top is built from individual fastened panels, a torn or worn section can be unlaced and replaced on its own. Contact sales@beyondtent.com with your tent's dimensions and the panel position for a replacement quote.
Does the Sectional Top perform as well as a One-Piece Top in wind and rain?
Yes. Each panel is joined with a reinforced, weather-tight seam that holds tension across the frame and keeps out water, performing like a single continuous top once installed.
What is the footprint of the 20x40 Sectional Top?
The 20x40 Expandable Sectional Top covers 800 sq ft of ground space. With no center pole, the entire interior is open and usable for vendors, seating, or mixed-use layouts.
How many people can fit under the 20x40 Sectional Top?
It accommodates 80 Guests banquet-style, 133 Guests in theatre seating, or 114 Guests for a standing cocktail reception. For vendor setups, it supports 6-8 stations.
What eave heights are available on the Sectional Top?
The Expandable Sectional Top is available in both 7 ft and 8 ft eave heights, so you can match the tent profile to your venue and event type.
Is the Sectional Top NFPA 701 fire-resistant certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl panels are NFPA 701 certified — required for most commercial events, venues, and permitted installations.
Can the Sectional Top tent be set up on concrete or asphalt?
Yes. The West Coast Frame system installs on any surface. Use weight bags for hard surfaces like concrete and asphalt, and ground stakes for grass or dirt.
What warranty comes with the 20x40 Expandable Sectional Top?
It comes with a 1-Year Commercial Warranty covering manufacturing defects. Contact sales@beyondtent.com or 866-296-3868 for support.
