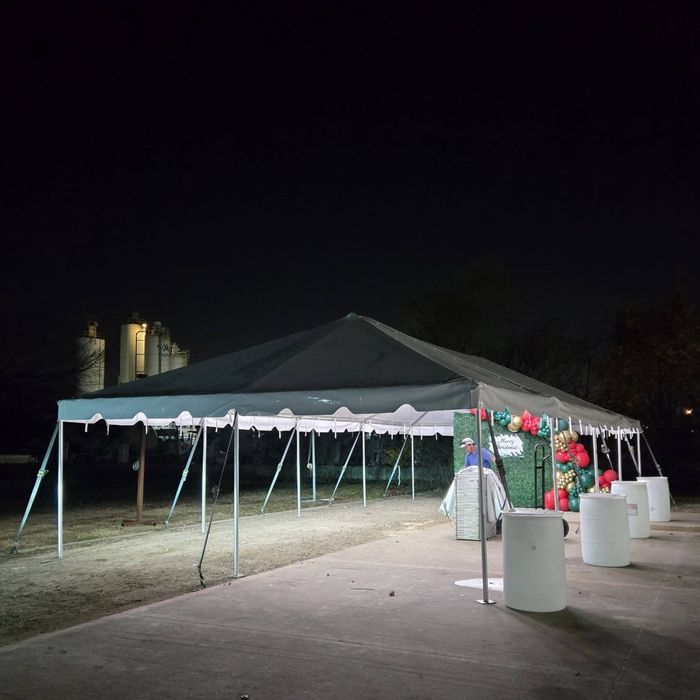

Beyond Tent's 20'x40' Classic Series West Coast Frame Tent Commercial Grade delivers 800 square feet of clear-span, center-pole-free covered space on a proven 2-inch anodized aluminum West Coast frame. Commercial-grade 16 oz blockout vinyl, NFPA 701 certified, any-surface setup — built for rental operators and event professionals who need professional infrastructure that deploys reliably, survives hundreds of events, and keeps earning.
The 20'x40' is the workhorse of the 20-wide West Coast lineup — a versatile format that covers vendor markets, corporate receptions, community fundraisers, and athletic event footprints without requiring a larger tent's crew and logistics.
Beyond Tent supplies commercial-grade tents exclusively to rental operators and event professionals. We are not a big-box store selling consumer-grade equipment. Our focus on heavy-duty commercial inventory means expert guidance, direct operator support, and pricing that reflects what the industry actually needs.
Why the 20'x40' Works
20 feet of usable width — two vendor rows, or full reception layout. The 20-wide format unlocks both-sides vendor deployment or full reception-style seating in a single unobstructed structure. No center poles. No guy wires. No compromises.
Any-surface deployment. Stake into grass or ballast-weight onto concrete, asphalt, or any hard surface. The same tent, the same setup process, any venue.
NFPA 701 certified for permitted events. Every canopy ships with a permanently attached flame-retardant label — the documentation fire marshals require for public assembly permits.
Expandable configuration. The 20'x40' links end-to-end with additional 20-wide sections to build any run length your event requires.
Technical Specifications
| Size |
20 ft x 40 ft |
| Square Footage |
800 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
10 ft standard · 11 ft with 8' legs |
| Pitch |
3 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2" Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
~650 lbs |
| Longest Component |
10 ft |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |
| Anchoring System |

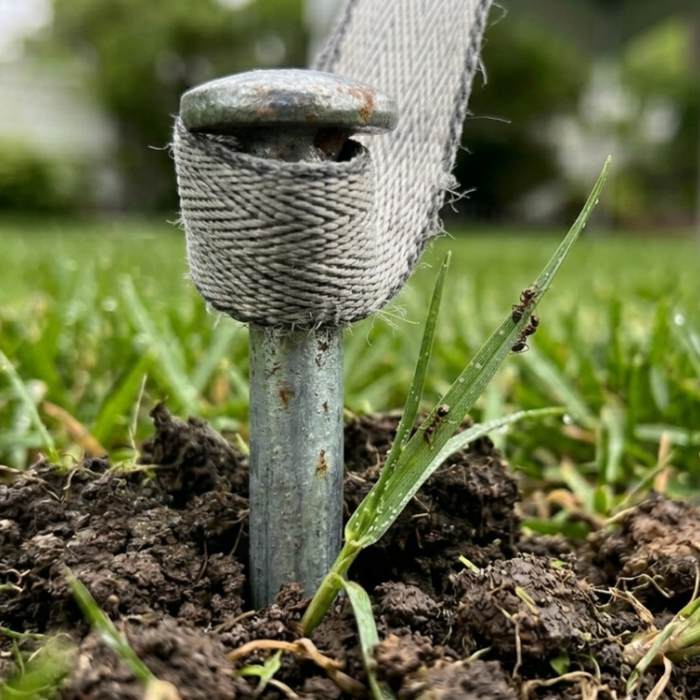

Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — expandable configurations available (Call for Quote) |
| Custom Printing Available |
Yes |
| Set Up Crew |
3–5 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1–3 business days |
| Shipping Method |
LTL Freight only |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide
| Vendor Rows (10x10 booths) |
8 booth stations — 4 booths per side, two rows |
| Banquet / Seated Dinner |
~67 guests — 60" round tables, 8 per table |
| Theatre / Ceremony Seating |
~53 guests — chairs in rows |
| Standing / Cocktail Reception |
Up to 80 guests |
| Covered Footprint |
800 sq ft |
Rental Operator ROI Estimate
| Average rental rate per event |
~$700 |
| Estimated break-even (events) |
~5 rentals |
| Annual events at 1/week (30 weeks) |
~30 events |
| Annual gross revenue potential |
~$21,000 |
Estimates based on market averages for commercial frame tent rentals in the U.S. Results vary by market, condition, and operator. Contact us for volume pricing.
Commercial Grade vs Standard Event Canopy
| Feature |
BeyondTent 20'x40' Commercial |
Standard Consumer Canopy |
| Frame Material |
✓ 2" Anodized Aluminum (rust-proof) |
✗ Powder-coated steel (rusts) |
| Fabric Weight |
✓ 16 oz / 540 gsm blockout vinyl |
✗ 8–10 oz thin polyester |
| Fire Certification |
✓ NFPA 701 (fire marshal approved) |
✗ Not fire-rated for public permits |
| Center Poles |
✓ None — fully clear-span |
✗ Center poles required |
| Event Permit Eligible |
✓ Yes — attached certification label |
✗ Typically rejected by fire marshal |
| Hard Surface Deployment |
✓ Ballast weights on concrete/asphalt |
✗ Stakes only (grass required) |
| Sidewall System |
✓ Internal perimeter rope system |
✗ Velcro or clip-on (fails in wind) |
| Long-Term Installation |
✓ 6+ months |
✗ Short-term use only |
| Replacement Parts |
✓ Universal West Coast components |
✗ Proprietary, often discontinued |
| Expandable |
✓ Yes — link sections for any length |
✗ Fixed size only |
Common Use Cases
| Outdoor Weddings & Receptions |
The 20'x40' seats 67 guests for a seated dinner with full catering space. Zero center poles means unobstructed sightlines, full décor flexibility, and a clean tent experience your clients will book again. |
| Vendor & Farmers Markets |
Deploy the 20'x40' as a covered marketplace with 8 standard 10×10 vendor booths — 4 on each side, leaving a clear center aisle. One tent covers an entire small-to-mid-size market. |
| Corporate & Private Events |
Corporate event producers use the 20'x40' for outdoor dining, product launches, award ceremonies, and brand activations. The 10-ft peak and blockout vinyl create an interior environment that works even in direct sunlight. |
| Community Fundraisers & Festivals |
Nonprofits, school booster clubs, and festival organizers deploy the 20'x40' as the main covered hub — a fire-marshal-approved, weatherproof space for 80 standing attendees or seated programming. |
| Athletic & Sporting Events |
Race organizers, tournament operators, and sports event producers use the 20'x40' for participant staging, registration, and spectator sheltering — deployed on hard surfaces using ballast weights at any venue. |
| Rental Operator Inventory |
The 20'x40' is a high-yield rental SKU — versatile enough to book for weddings, markets, and corporate events, durable enough to sustain 5x break-even within the first operating season at standard market rates. |
Browse the Full West Coast Frame Tent Lineup
Beyond Tent carries the complete commercial West Coast frame tent series. Find the exact footprint for every deployment:
Frequently Asked Questions: 20'x40' Classic West Coast Frame Tent
1) Is the 20'x40' fire-rated for public event permits?
Yes. The 20'x40' Classic Series West Coast Frame Tent Commercial Grade meets or exceeds NFPA 701 standards. Every tent canopy includes a permanently attached flame-retardant label — the documentation fire marshals require for permitted events at parks, fairgrounds, parking lots, and public venues. If your event requires a tent permit, this tent is compliant.
2) Can the 20'x40' be deployed on asphalt or concrete?
Yes. This freestanding structure anchors on hard surfaces using heavy-duty concrete ballast blocks or water weights instead of ground stakes. Fully deployable on parking lots, paved fairgrounds, concrete plazas, and any hard surface — without drilling or damaging the surface.
3) How many guests can the 20'x40' accommodate?
Capacity depends on your setup style. For a seated dinner with round tables: approximately 67 guests. For ceremony or theatre seating: approximately 53 guests. For a standing cocktail reception: up to 80 guests. For vendor markets: 8 standard 10x10 booth stations.
4) How does the 20'x40' attach to additional tent sections?
West Coast frame tents connect end-to-end using matching eave fittings and a continuous ridgeline. Additional sections of the same width (20-wide) extend the structure to any length. Contact us for multi-section configuration guidance and pricing on tent tops for your specific run.
5) What is the wind and rain performance of the 20'x40'?
The 16 oz PVC blockout vinyl is 100% waterproof — fully weatherproof for rain. The commercial-grade anodized aluminum frame handles moderate wind loads significantly better than consumer-grade pop-up canopies. As with any tent structure, always take down or ballast/stake to manufacturer specs before high-wind events. It is not rated for severe weather (storms, heavy snow).
6) How long does it take to process and ship my order?
Orders process in 1–3 business days. Ships LTL freight — delivery time 5–10 business days after 1–3 day processing. For time-sensitive event schedules, contact us at 866-296-3868 to confirm lead times before purchasing.
7) Does the 20'x40' have interior center poles?
No. The West Coast frame design is 100% pole-free in the interior. All 800 square feet of floor space is completely clear — no center poles, no guy wires, no structural obstructions. This is the primary operational advantage over pole tents and clearspan systems with internal truss work.
8) What is 16 oz blockout vinyl and why does it matter?
16 oz refers to the weight of the PVC-coated polyester fabric per square yard — nearly twice the weight of consumer-grade tent fabric. Blockout refers to the interior coating that blocks 95%+ of UV light. The result: a dramatically cooler interior temperature than consumer tents, complete UV protection for guests and vendors, and a fabric that holds up through hundreds of rental cycles without cracking or fading.
9) Can I add sidewalls to the 20'x40'?
Yes. Standard West Coast sidewalls attach to the internal perimeter rope on the tent top. Available in solid white, cathedral window, and mesh configurations. Sidewalls can be installed on any combination of sides — use all four for full enclosure or mix configurations by side.
10) Is the 20'x40' available with custom printing?
Yes. Custom-printed canopy tops and sidewalls are available for branding, sponsorship, or venue identification. Minimum order quantities apply. Contact sales@beyondtent.com with your artwork files for a custom quote.
11) How many people are needed to set up the 20'x40'?
3–5 people can efficiently set up the 20'x40'. The standard West Coast assembly process: build the roof skeleton flat on the ground, install the canopy top, then lift the assembled roof onto the perimeter legs. Larger configurations benefit from additional crew to manage the roof lift safely.
12) How do I maintain and store the 16 oz vinyl canopy?
Clean with warm water and mild soap — never use bleach or solvent-based cleaners. Rinse completely and allow the canopy to dry fully before folding for storage. Store in a dry, temperate location. Never fold a wet or damp canopy — trapped moisture causes mold that permanently stains the vinyl.
13) Are replacement parts available for the 20'x40'?

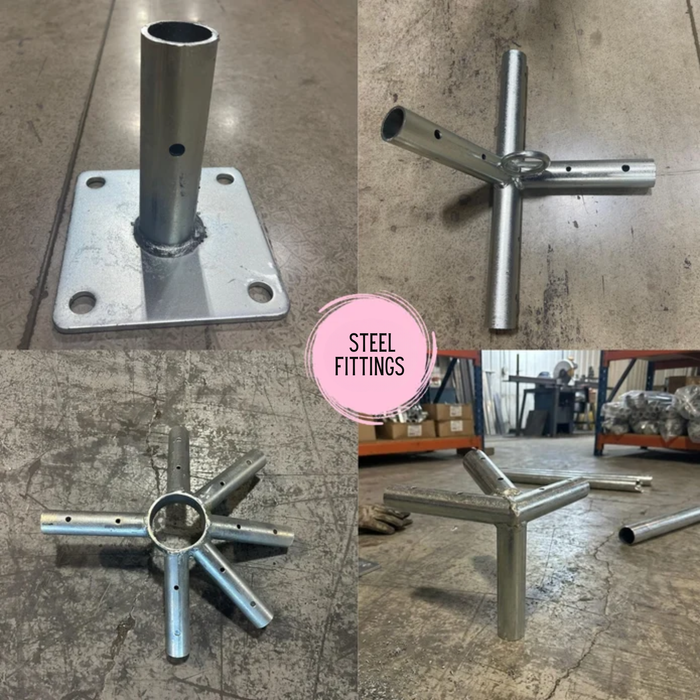

Yes. The West Coast frame system uses standardized aluminum pipes and universal fittings available from Beyond Tent and through the broader West Coast tent supply network. This is a critical advantage over proprietary tent systems where discontinued parts can strand your entire inventory. Contact sales@beyondtent.com with your specific part requirement.
14) What is the minimum temperature for deploying the 20'x40'?
The manufacturer recommends a minimum installation temperature of 40°F. Below this temperature, the vinyl canopy becomes stiff and can crack during installation. In cold climates, allow the canopy to warm before setup or move the installation process into a heated space when possible.
15) Why do rental operators and event professionals choose Beyond Tent?
Because Beyond Tent is a dedicated B2B commercial tent company — not a general retailer. We supply commercial-grade frame tents, inflatables, and event structures built to withstand the rigorous demands of the rental industry. Our team works exclusively with operators and event professionals, which means the guidance you get reflects real field experience, not a general product catalog. Call us at 866-296-3868 before you buy — we'll help you configure the right tent for your specific operation.
