40x60 West Coast Frame Tent - Commercial Party Tent

SKU 2M-3367
Original price $10,949.99 - Original price $10,949.99
Original price
$10,949.99
$10,949.99 - $10,949.99
Current price $10,949.99

Introducing the 40x60 West Coast Frame Tent - Commercial Party Tent

Elevate your event rental business or large-scale outdoor gathering with the West Coast Sectional Frame Tent 40' x 60'. Made for durability and versatility, this commercial-grade tent is the industry standard for weddings, corporate events, and large outdoor festivals.

    • Expandable Sectional Design: This sectional tent utilizes a lacing system (one 40'x20' middle and two 40'x20' ends), allowing you to easily scale your inventory to 40'x80' or 40'x120' with additional middle sections.

    • Premium Weather Protection: The tent top is crafted from 16 oz block-out vinyl that is 100% waterproof, UV resistant, and flame retardant (NFPA 701 compliant).

    • Industrial Strength Frame: Built with a 2-inch anodized aluminum frame and 7' legs, providing a rigid, pole-free interior for maximum usable floor space.

    • High Occupancy Capacity: This 40' x 60' unit comfortably hosts up to 200 guests for sit-down dinners, 240 for buffet service, or 480 guests for cocktail-style receptions.

Elevate your events, create unforgettable moments, and provide unparalleled comfort with our 40x60 West Coast Tent . Whether it’s a joyous wedding celebration or a lively birthday party, this tent sets the stage for extraordinary experiences. Choose excellence; choose our Compact Frame Tent for your next event.

- Stakes and ratchet straps included.

- Tent top rope attached to the top for hanging sidewalls.

Key Features:

Technical Specifications

Size 40'x60'
Square Ft 2400 Sq.ft.
Commercial Grade Yes
Expandable Yes
Frame Material 2" Anodized Aluminum
Custom Printing No
Shipping Method LTL Freight
Anchoring System Setup on grass (stakes) or hard surfaces (ballast/weights)
Fabric Material PVC Vinyl
Fabric Thickness 16 oz
Fabric Translucency Blockout
Long Term Installation Capability 6 Months or more
Water Repellency Waterproof
Ideal Ground Setup Asphalt, Blacktop, Soft Surface, Concrete, Grass
Sidewall Compatible Yes
Flame Resistant Yes
Minimum Temperature Level 40°F
UV Resistant Yes
Bonded Seams 1" Heat-sealed
Class Type Frame Tent
Clear-Span Structure Yes, no center poles
Side Pole Height 7'
Min/Max Handling Time Ships in 1-2 business days
Mold and Mildew Resistant Yes
Pole Material Anodized Aluminum
Longest Component 10'6"
Set Up Crew 4-6 Persons
Made in the USA No
Sidewall Connection Internal Perimeter Tent Top Rope
Replaceable Sidewall Rope 7/32" polyester sidewall rope
Fail-Safe Hardware R-Pins
Assembled Assembly Required
Flame Retardant NFPA 701, California State Fire Marshal
Seating Capacity Approx. 200 Sit Down Dinner - 480 Cathedral Seating
Audience Wedding Venues, Party Rental Companies, Government/Municipalities, Schools/Universities, Churches/Religious Groups









Frequently Asked Questions: 40x60 West Coast Frame Tent

1) Does the 40x60 West Coast Frame Tent meet fire safety regulations for public permits?
Yes. The 40x60 West Coast Frame Tent is fully compliant with NFPA 701 fire standards. Each canopy features a sewn-in flame-retardant tag, which provides the necessary proof for municipal inspectors and fire marshals to approve your public event permits.
2) Can I install the 40x60 West Coast Frame Tent on hard surfaces like concrete or asphalt?
Absolutely. Because this aluminum structure is freestanding, it adapts perfectly to city environments. For grass, standard stakes work fine, but for concrete or asphalt, we strongly recommend using heavy-duty concrete blocks. This allows you to safely host street fairs and parking lot events without drilling into the ground.
3) How wind-resistant is the 40x60 West Coast Frame Tent?
This 40x60 commercial tent is a robust, non-engineered heavy-duty structure. While it lacks a formal "stamped" wind rating like a permanent building, its commercial-grade aluminum skeleton offers significantly better wind resistance and overall stability than standard consumer pop-up tents.
4) What makes transporting the 40x60 West Coast Frame Tent easier than other models?
We engineered the 40x60 West Coast Frame Tent specifically to optimize logistics. By utilizing a smart sectional design for the frame, no single pipe exceeds 10'6" in length. This means the entire system can fit into standard cargo vans or box trucks, making transportation much easier and cutting down freight costs for replacement parts.
5) Are there any center poles inside the 40x60 West Coast Frame Tent?
No. This is a true clear-span structure. The commercial aluminum framework fully supports the heavy-duty canopy, eliminating the need for any internal poles. You get 2,400 square feet of completely open space to arrange stages, seating, and dance floors however you want.
6) Why do you use 16oz Blockout Vinyl for the tent top?
We use 16oz Blockout PVC vinyl because it is a premium, commercial-grade fabric that stops 100% of sunlight from passing through. This blockout technology keeps the interior up to 15 degrees cooler on hot days and removes harsh glare, providing a superior, comfortable experience for weddings and corporate events.
7) How long will it take to process my order for the 40x60 frame tent?
We pride ourselves on fast turnaround times. Once your order is placed, it typically takes just 1 to 2 business days for our team to process and prepare your 40x60 West Coast Frame Tent for freight shipping.

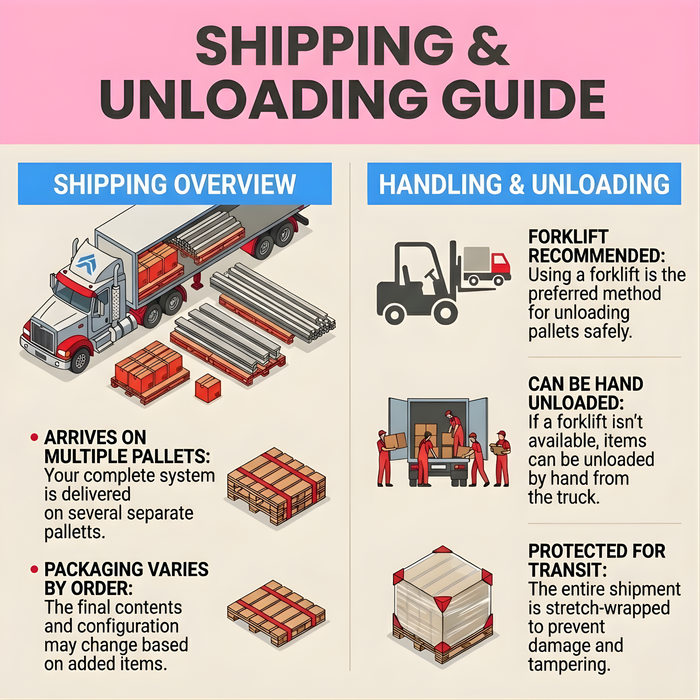

8) How will my 40x60 West Coast Frame Tent be delivered?
Due to the industrial size and weight of the aluminum poles and 16oz vinyl top, this tent is shipped via Less-Than-Truckload (LTL) freight. You will need a forklift or a loading dock at the delivery location, and someone must be present to inspect and sign for the pallets.
9) How should I clean the 16oz vinyl canopy?
To maximize the lifespan of your tent top, gently wash it with warm water, a mild soap, and a soft brush. Never apply bleach or harsh abrasive chemicals. Crucially, always make sure the vinyl is 100% dry before rolling it up for storage to avoid mold and mildew.
10) What is the benefit of the anodized aluminum tubing?
We construct our frames using 2-inch anodized aluminum, which features a special coating that resists oxidation and rust. For rental operators, this means the metal won't leave dark, dirty smudge marks on your clean white vinyl during setup, preserving that pristine, high-end look.
11) Can I purchase replacement parts for the 40x60 West Coast Frame Tent?
Yes, definitely. We carry a complete inventory of replacement parts. Whether you need a new canopy top, a replacement spreader pipe, or a specific steel fitting, you can buy exactly what you need to keep your tent in perfect shape.
12) How many people do I need to set up the 40x60 West Coast Frame Tent?
For a 40x60 structure, we advise using a trained crew of 4 to 6 people. The safest installation method involves assembling the metal roof frame on the ground, pulling the vinyl top over it, and then lifting the entire top section to insert the legs.
13) Can the 40x60 West Coast Frame Tent be left up for months at a time?
Yes, this tent is engineered for semi-permanent applications like seasonal dining or temporary storage. With its 2-inch heavy-duty aluminum frame and 16oz blockout vinyl, it can endure continuous use for 6 months or more. We strongly recommend heavy-duty anchoring and routine inspections to maintain safety during long-term setups.
14) Why should I choose Beyond Tent for my event business?
Beyond Tent is a dedicated B2B manufacturer and engineering company, not just a distributor. We specialize in creating high-ROI commercial event equipment—from frame tents to inflatables—built specifically to handle the rigorous use of the party rental industry, municipalities, and venues. By using heavy-duty materials like our anodized aluminum frames and 16oz blockout vinyl, combined with fast shipping and expert support, we provide the dependable infrastructure your business needs to succeed.

Commercial Grade: Yes
Weight: 1100 lbs.
Product Dimensions:40x60
2” Diameter Aluminum Poles
Top Material: 16 oz. PVC blackout vinyl
Fire Retardant and UV Protected
Occupancy: 200 to 480 People
Staff needed for setup: 7
Mold and Mildew Resistant : Yes
Center Pole: No
Tent Legs - 6' 8"
Hip Rafters - 14' 4" (2-piece design)
Rafters - 21' 10" (3-piece design)
Spreaders - 9' 4"
Corner Rafters - 10' 4"

1 Year Limited Warranty for Manufacturers Defects
