30x30 West Coast Sectional Frame Tent - Commercial Party Tent

SKU 2M-4415
Original price $4,779.00 - Original price $4,779.00
Original price
$4,779.00
$4,779.00 - $4,779.00
Current price $4,779.00

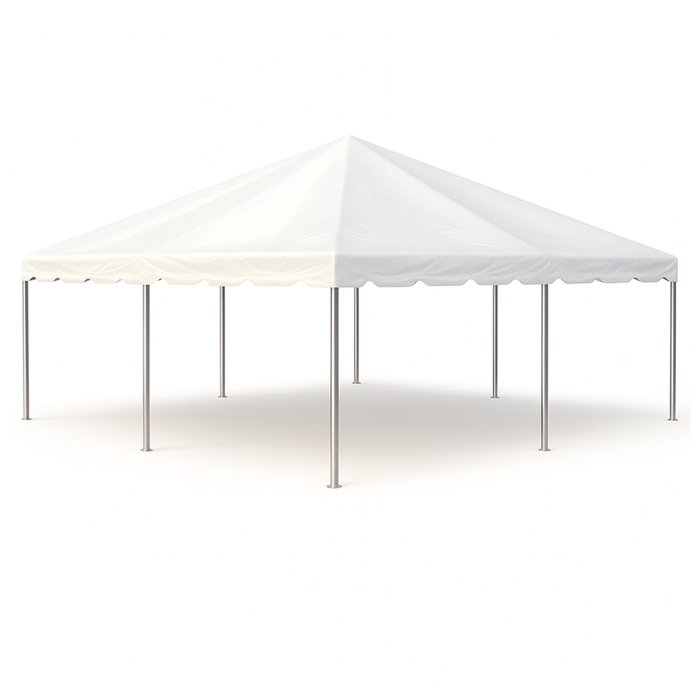

Maximize your event space with our 30x30 West Coast Style Sectional Frame Tent. Engineered for the demanding needs of the event rental industry, this heavy-duty structure offers 900 square feet of unobstructed space—perfect for weddings, corporate galas, and large-scale outdoor festivals.

Why Choose the West Coast Sectional Frame?

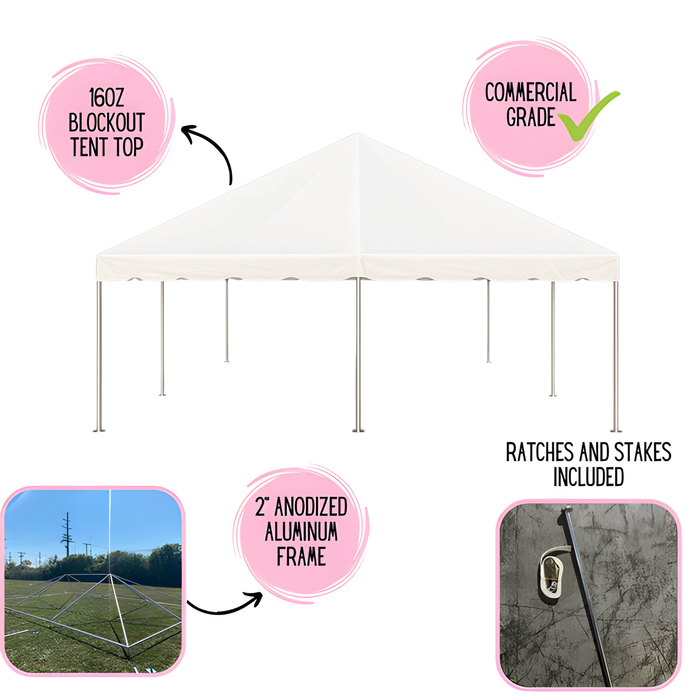

  • 100% Sunlight Blockout Technology: Features a premium 16 oz. Blockout PVC Vinyl top that provides total shade and UV protection, ensuring your guests stay cool and comfortable even in direct sunlight.

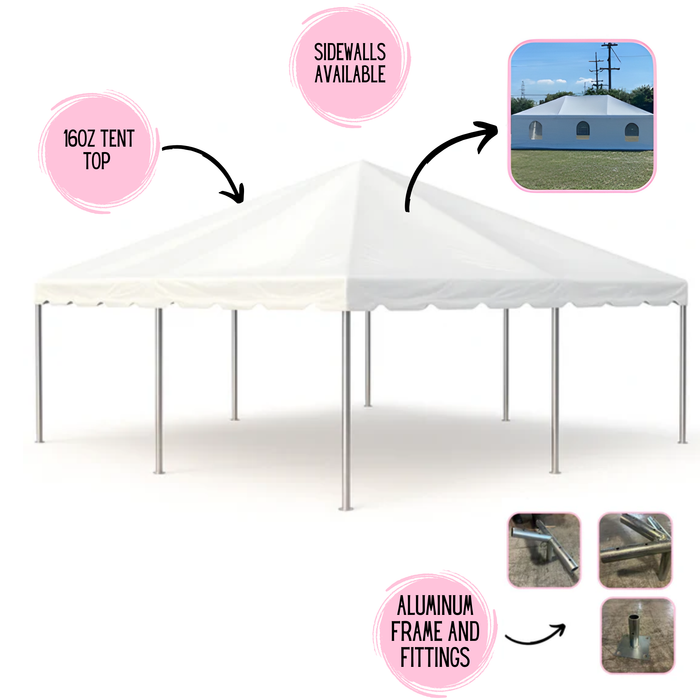

  • Heavy-Duty Aluminum Construction: Built with a 2” diameter anodized aluminum frame, this tent is designed for maximum wind resistance and long-term durability.

  • Engineered for Versatility: Our sectional design allows for easier transportation and modular flexibility, making it a top choice for professional installers.

  • Multi-Surface Compatibility: Whether you are setting up on a grassy field, concrete, or asphalt, this frame tent provides a secure and stable shelter for any venue.

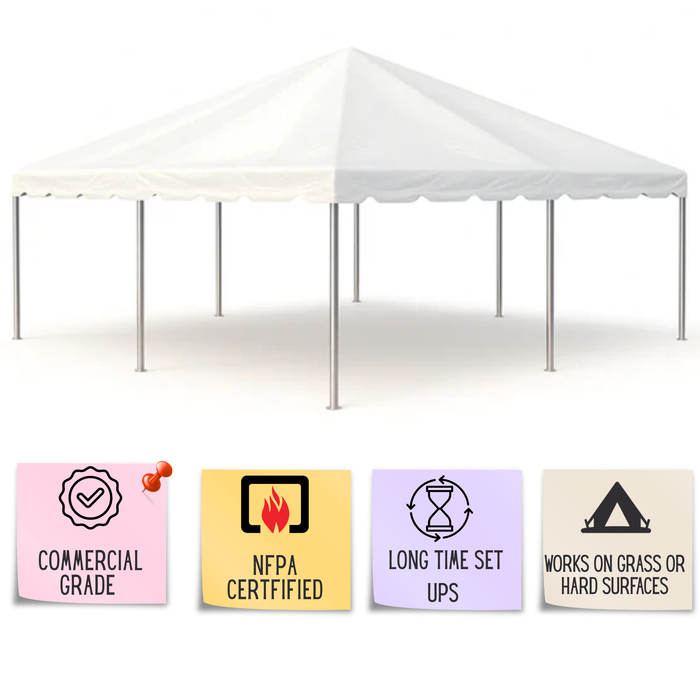

  • Safety & Compliance: All vinyl materials are Fire Retardant (NFPA certified) and water-resistant, meeting strict safety standards for public gatherings.

For rental businesses and event venues, investing in the 30x30 Compact Frame Tent offers a reliable and versatile solution, catering to a wide range of events and customer preferences. Collaborating with reputable suppliers ensures access to high-quality tents and professional services, ultimately contributing to the success of events and customer satisfaction.

* Ratches and Stakes are included.

* Tent top rope attached to the top for hanging sidewalls.

Technical Specifications

Size 30'x30'
Square Ft 900 Sq.ft.
Weight 500 LBS
Commercial Grade Yes
Expandable Yes
Frame Material 2" Anodized Aluminum
Custom Printing No
Shipping Method LTL Freight
Anchoring System Setup on grass (stakes) or hard surfaces (ballast/weights)
Fabric Material PVC Vinyl
Fabric Thickness 16 oz
Fabric Translucency Blockout
Long Term Installation Capability 6 Months or more
Water Repellency Waterproof
Ideal Ground Setup Asphalt, Blacktop, Soft Surface, Concrete, Grass
Sidewall Compatible Yes
Flame Resistant Yes
Minimum Temperature Level 40°F
UV Resistant Yes
Bonded Seams 1" Heat-sealed
Class Type Frame Tent
Clear-Span Structure Yes, no center poles
Side Pole Height 7'
Overall Height 14' 6"
Pitch 5'
Mold and Mildew Resistant Yes
Pole Material Anodized Aluminum
Longest Component 10'6"
Set Up Crew 4 Persons
Made in the USA No
Sidewall Connection Internal Perimeter Tent Top Rope
Replaceable Sidewall Rope 7/32" polyester sidewall rope
Fail-Safe Hardware R-Pins
Assembled Assembly Required
Flame Retardant NFPA 701, California State Fire Marshal
Seating Capacity 90 Sit Down Dinner - Up to 180 Guests Standing
Audience Wedding Venues, Party Rental Companies, Government/Municipalities, Schools/Universities, Churches/Religious Groups

Frequently Asked Questions: 30x30 West Coast Frame Tent

Is this 30x30 West Coast Frame Tent fire-rated for public event permits?
Yes. The 30x30 West Coast Frame Tent meets or exceeds NFPA 701. Each tent top includes a sewn-in flame-retardant certification label, which is the specific documentation required by fire marshals and municipal inspectors to grant public assembly permits.

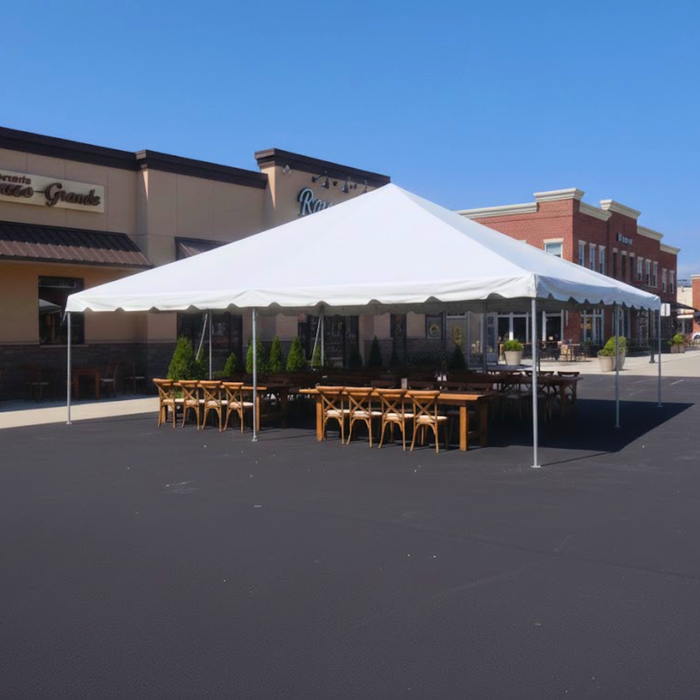

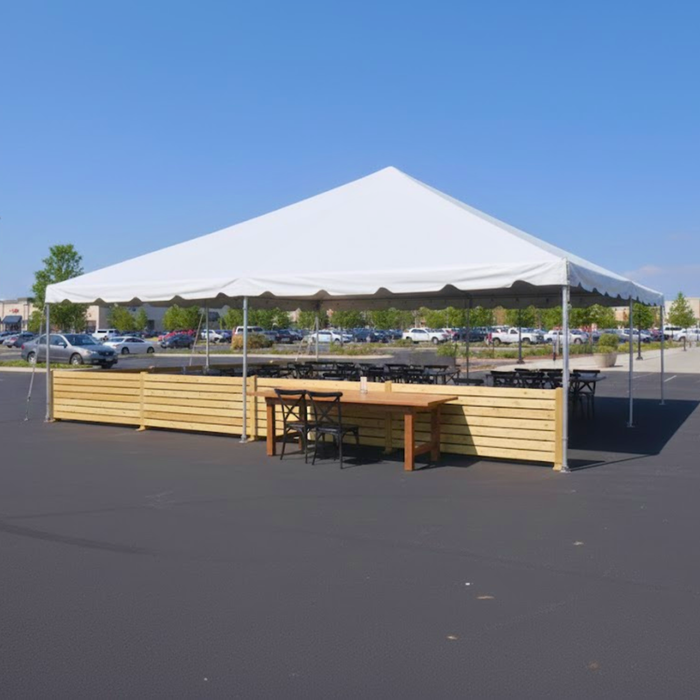

Can the 30x30 West Coast Frame Tent be installed on asphalt or concrete?
Yes. Because the 30x30 West Coast Frame Tent is a freestanding structure, it is highly versatile for urban environments. While grass installations use 36-inch double-head stakes, setups on asphalt or concrete require weighted anchors or G-Blocks. This flexibility allows customers to offer solutions for parking lot sales and festival venues where ground penetration is prohibited.
How much wind can the 30x30 West Coast Frame Tent handle?
The 30x30 West Coast Frame Tent is a commercial-grade, non-engineered structure. While it does not have a formal "stamped" wind rating like permanent buildings, it is designed for significantly higher stability than standard pop-up or DIY tents.
What makes the logistics of this 30x30 West Coast Frame Tent unique in the industry?
Our 30x30 West Coast Frame Tent is engineered for superior logistics, featuring a maximum component length of only 10'6". By utilizing a specialized two-piece design for the hip rafters, we ensure the kit fits in standard transport vehicles, simplifies onsite handling, and significantly reduces shipping costs for replacement parts compared to oversized single-piece tubing.
Does the 30x30 West Coast Frame Tent require interior center poles?
No. This model is a clear-span structure, meaning the rigid aluminum framework supports the roof without any interior poles. This provides 100% usable floor space (900 sq. ft.), allowing for the unrestricted placement of dance floors, buffet lines, and stages, which is a major operational advantage over traditional pole tents.
What makes 16oz Blockout Vinyl superior to standard tent fabric?
Our 16oz Blockout PVC vinyl is a commercial-grade material that prevents 100% of UV light from penetrating the top. This technology keeps guests 10-15 degrees cooler during daytime events and prevents sun-glare, making it a critical "Experience" feature for high-end wedding venues and corporate hospitality suites.
Can a 30x30 West Coast Frame Tent fit in a standard SUV or cargo van?
Unlike standard industry frames that use single-piece rafters, our unique 2-piece hip rafter design limits the maximum component length to just 10'6". This allows the entire 30x30 West Coast Frame Tent kit to be transported in standard cargo vans or large SUVs, eliminating the need for specialized long-bed trailers.
How is the 30x30 West Coast Frame Tent shipped and delivered?
Due to the size and weight of the heavy-duty aluminum pipes and vinyl canopy, this product is shipped via LTL (Less-Than-Truckload) freight. Delivery requires a loading dock or a forklift, and the buyer must be present to inspect and sign for the shipment upon arrival.
How do I clean and maintain the 16oz vinyl top?
To maximize the expected lifespan of your tent, clean the vinyl top regularly using a gentle soap, warm water, and a soft-bristle brush. Never use harsh bleach or abrasive chemicals. Ensure the tent is completely dry before folding and storing it to prevent mold and mildew buildup.
What are the benefits of the anodized aluminum frame?
The frame uses 2-inch anodized aluminum tubing, which features a protective coating that prevents oxidation. For event professionals, this means the metal will not leave black residue on the white vinyl fabric during setup or teardown, ensuring the tent remains in "Like-New" condition for years of heavy-duty rental use.
Are replacement parts available if the tent frame gets damaged?
Yes, we offer a full inventory of replacement parts for the 30x30 West Coast Frame Tent. Whether you need a replacement aluminum pipe, steel corner fitting, base plate, or a new canopy top, you can order individual components to keep your investment in perfect working condition.
How many crew members are needed for setup?
A professional crew of 4 people is recommended for the safe installation of a 30x30 West Coast Frame Tent. The process involves assembling the roof skeleton on the ground, fitting the fabric, and then "walking" the tent up onto its legs, a method that minimizes fabric strain and maximizes onsite safety.
Can this tent be set up for a long-term installation?
Yes, The West Coast Frame Tent is engineered for semi-permanent and long-term installation, making it an ideal solution for temporary warehousing or seasonal event venues. Built with a 2-inch anodized aluminum frame and industrial-grade 16oz blockout vinyl, these structures are rated for continuous use of 6 months or more. To ensure maximum longevity, we recommend high-capacity anchoring systems and a routine maintenance schedule to monitor tension and weather-load integrity.
Why do event professionals, municipalities, and government agencies choose Beyond Tent?
Beyond Tent is a dedicated B2B company specializing strictly in residential and commercial-grade event equipment. We do not rent; we engineer our frame tents, inflatables, and event furniture specifically for the rigorous demands of the party rental industry, municipalities, and government agencies. Whether supplying a city festival or a growing rental fleet, we utilize heavy-duty materials like 16oz blockout tent vinyl, 15oz to 18oz rip-stop inflatable PVC, and rust-proof anodized aluminum frames to ensure our products deliver maximum ROI. With fast LTL freight shipping and expert industry support, Beyond Tent provides the reliable infrastructure professionals and government organizations need to operate securely.

Commercial Grade
Weight: 500 lbs.
30 ft L X 30 ft W X 14.5 ft H
2” Diameter Aluminum Poles
16 oz. PVC blockout vinyl tent top
Fire Retardant and UV Protected
Tent Legs - 6' 8"
Hip Rafters - 14' 4"
Rafters - 10' 6"
Spreaders - 9' 4"
Occupancy: 90 Sit Down Dinner - 150 Cathedral Seating

1 Year Limited Warranty for Manufacturers Defects.
