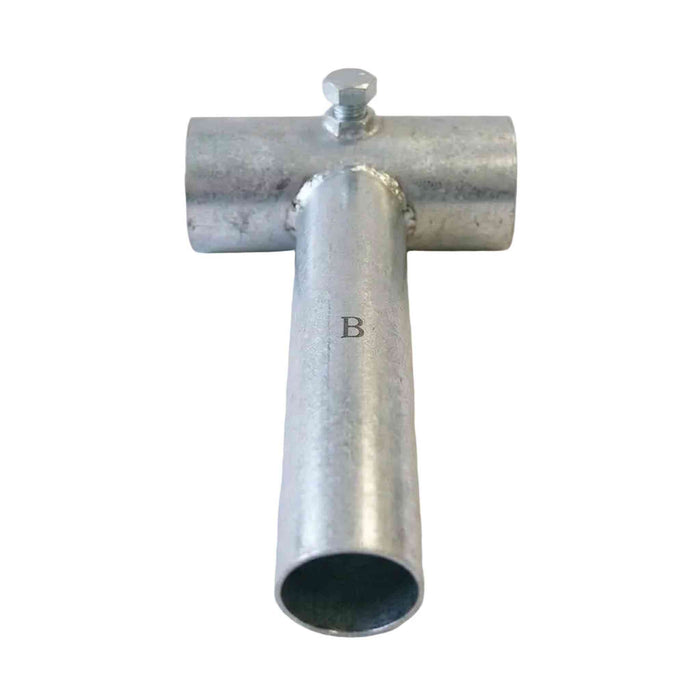

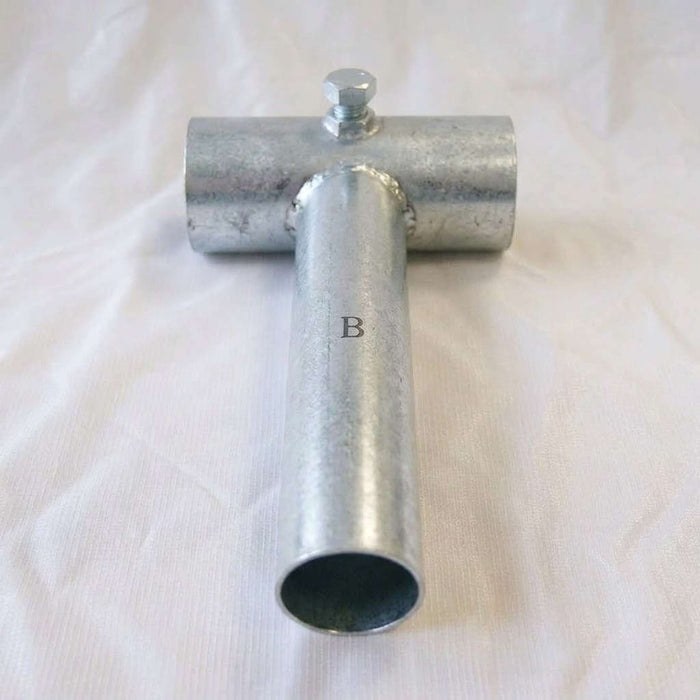

1-Way End Rail Fitting for West Coast Style Frame Tents
Every rail skirt run needs a clean stopping point, and that's exactly what this fitting is for. It clamps onto the tent leg tubing and gives you a single protrusion to close off the end of a rail or spreader tube run, so the last section of your rail curtain has somewhere secure to land instead of hanging loose.
Fits standard West Coast style Classic Frame tent systems from most major manufacturers.
Why This Fitting Matters
A rail skirt system only looks as clean as its weakest connection, and an unsupported end is usually the first thing to sag or shift during a long event. Anchoring that last rail section to the leg with a dedicated end fitting keeps the whole run tight and level, and it saves install crews from having to jury-rig a fix with whatever's on hand.
| Spec |
Detail |
| Connection Type |
Single protrusion with pin holes |
| Leg Tube Compatibility |
1.75" to 2.00" diameter |
| Material |
1.25" schedule 40 steel pipe |
| Finish |
Zinc-coated for corrosion resistance |
| Weight |
3.0 lbs |
| Compatibility |
West Coast style Classic Frame tent systems |
| Sold As |
Single replacement fitting — pin fasteners sold separately |
Installation Notes from Our Install Crews
Slide the fitting onto the leg tube and set it at the height your rail run calls for before tightening the built-in bolt — get the height right first, since it's harder to adjust once the rail tubing and pins are in. Insert the rail tubing onto the protrusion, line up the holes, and seat the pin fasteners fully so nothing works loose over the course of an event.
