The BeyondTent 8'x16' Classic Series West Coast Frame Tent delivers 128 square feet of fully clear-span covered space and is the only tent in the 8-wide lineup designed to link end-to-end into multi-section corridor runs of any length. No center poles across the entire 8'x16' footprint — seats 13 banquet-style, stands 12, or runs as a covered entrance corridor or extended vendor aisle when connected to additional 8'x16' sections. Built from 16 oz / 540 gsm PVC coated polyester blockout vinyl and NFPA 701 certified with permanently attached label.
The 8'x16' uses the same 2" anodized aluminum West Coast frame architecture as the entire BeyondTent 8-wide series, with the expandable configuration capability that makes it the workhorse format for festival corridors, multi-vendor market rows, and entrance tunnels. Stake into grass or ballast onto concrete and asphalt. The longest single frame component is 7 ft 4 in — fits in most standard pickup trucks and cargo vans. Beyond Tent supplies commercial-grade tents exclusively to rental operators and event professionals.
Why Rental Operators Choose the 8'x16' Classic Series Frame Tent
-
128 sq ft fully clear-span — the largest and most versatile format in the 8-wide lineup; zero center poles across the full footprint
-
Expandable — links end-to-end — connect multiple 8'x16' sections for covered corridors, vendor aisles, and entrance tunnels of any length
-
16 oz / 540 gsm blockout vinyl — nearly twice consumer canopy weight; blocks 95%+ UV across hundreds of rental cycles
-
NFPA 701 certified — permanently attached flame-retardant label; fire marshal compliant for all permitted public events
-
7 ft or 8 ft eave height — choose based on venue clearance and headroom requirements
-
Any-surface installation — grass stakes or concrete/asphalt ballast; same tent, any venue
-
7 ft 4 in longest component — fits in most standard pickup trucks; no trailer required
-
1-year warranty and Made in the USA
| Size |
8 ft × 16 ft |
| Covered Area |
128 sq ft |
| Eave Height |
7 ft (standard) or 8 ft (optional) |
| Overall Peak Height |
9 ft (7' eave) / 10 ft (8' eave) |
| Pitch |
2 ft |
| Center Pole |
None — Fully Clear-Span Interior |
| Frame Style |
West Coast (Industry Standard) |
| Frame Material |
2" Anodized Aluminum Pipes & Fittings |
| Complete Weight (Aluminum) |
Approx 279–285 lbs depending on eave height |
| Longest Component |
7 ft 4 in |
| Expandable |
Yes — Link Sections End-to-End for Corridors & Extended Rows |
| Fabric Material |
16 oz / 540 gsm PVC Coated Polyester |
| Fabric Translucency |
Blockout (95%+ Light Block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes — Solid White, Cathedral Window, or Mesh |
| Sidewall Connection |
Internal Perimeter Tent Top Rope System |
| Anchoring System |
Stakes on Grass / Ballast Weights on Hard Surfaces |
| Long-Term Installation |
6+ Months |
| Minimum Temperature |
40°F |
| Setup Crew |
2 Persons |
| Made in USA |
Yes |
| Warranty |
1 Year |
| Shipping Method |
LTL Freight Only |
Capacity Guide
| Setup Style |
Capacity |
| Corridor / Vendor Row (Linked) |
Link multiple sections end-to-end for covered rows of any length |
| Banquet / Seated Dinner |
Approx 10–13 guests — multiple 6 ft banquet tables |
| Theatre / Ceremony Seating |
Approx 8 guests — chairs in rows |
| Standing / Cocktail |
Up to 12 guests |
| Covered Footprint |
128 sq ft |
What's Included
| 8'x16' Canopy Top |
16 oz blockout vinyl, NFPA 701 certified |
| Aluminum Frame |
2" anodized aluminum pipes & fittings |
| Leg Poles |
7 ft or 8 ft aluminum single tube (per selected variant) |
| Stakes with Ratchet Assemblies |
36" × 1" or 42" × 1" (per selected variant) |
| Sidewalls |
Solid White, Cathedral Window, or None (per selected variant) |
| Storage / Carry Bags |
Included for top and frame components |
Safety & Compliance
- NFPA 701 flame retardant certified — permanently attached certification label for fire marshal inspection
- California State Fire Marshal certified
- 16 oz / 540 gsm PVC coated polyester — waterproof, UV resistant, mold and mildew resistant
- 2" anodized aluminum frame — rust-proof and corrosion-resistant in all weather conditions

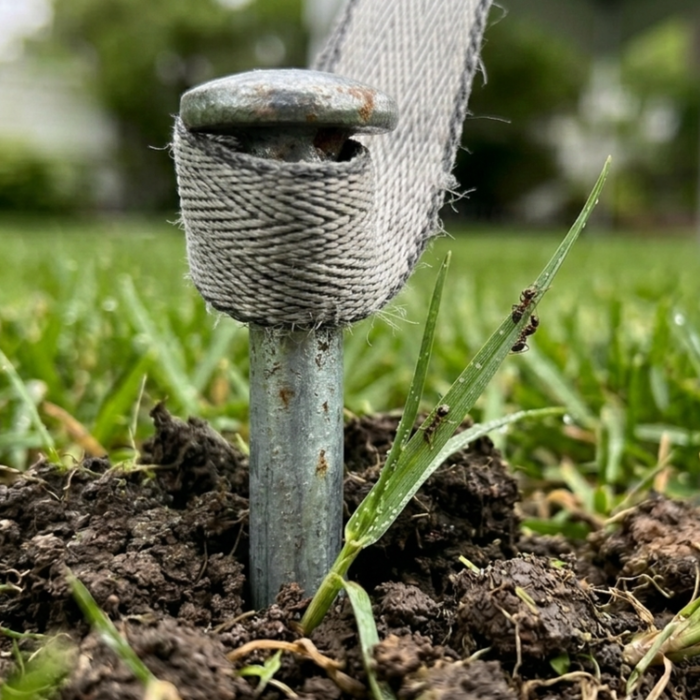

- Stake into grass with included ratchet assemblies; ballast onto concrete or asphalt with appropriate weight anchors

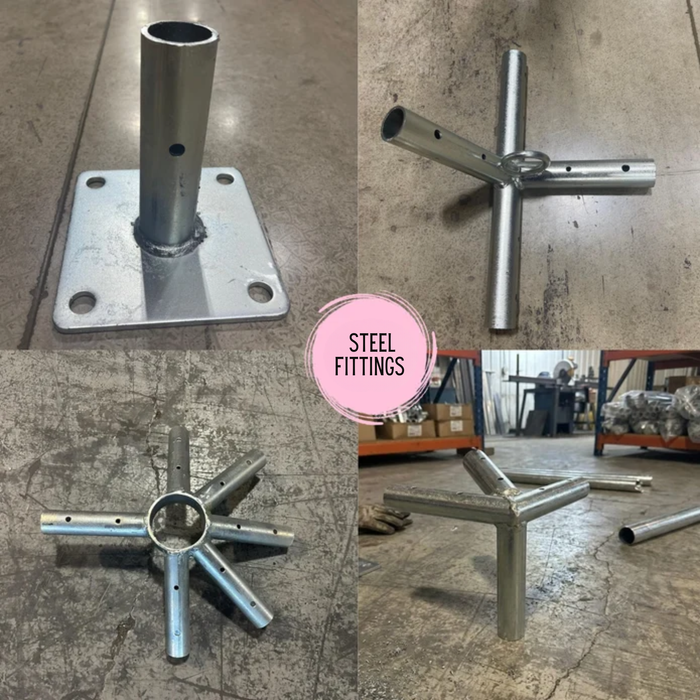

- Fail-safe hardware: R-pins or pin & bail connections at all key joints
- When linking sections, anchor all shared leg points between tent sections and inspect connections before opening to guests
- Minimum setup temperature 40°F — vinyl becomes stiff and can crack below this threshold
- 2-person minimum setup crew required at all times
Perfect For: Festival and fair entrance corridors (link multiple sections for covered walkways of any length), multi-vendor market rows, elongated concession setups, registration and check-in areas requiring depth, DJ and audio equipment shelters at large outdoor events, and rental operators building a fleet where one tent format can serve both single-station and corridor applications. The 8'x16' is the highest-value format in the 8-wide lineup for operators who book multi-tent corridor layouts.
Technical Resources & Downloads
Frequently Asked Questions: 8'x16' Classic Series West Coast Frame Tent
1) Is this tent NFPA 701 fire-rated?
Yes. NFPA 701 certified with permanently attached label sewn into the tent top. Required for all permitted public events where a fire marshal must approve tents. The attached label allows on-site verification without paperwork from the operator.
2) Can I link multiple 8'x16' sections together?
Yes. The 8'x16' is designed to link end-to-end with other 8-wide sections to create covered corridors, vendor rows, and entrance tunnels of any length. Shared leg points between sections must be anchored, and all frame connections must be inspected before opening to guests. Call 866-296-3868 for multi-section configuration guidance specific to your event layout.
3) Can it be installed on concrete or asphalt?
Yes. Use concrete ballast blocks or water-filled weight bags at each leg in place of ground stakes. No modifications to the tent required. See the Beyond Tent Ballasting Guide (download above) for weight requirements based on local wind conditions.
4) How many people does it take to set up?
2 persons minimum. Build the roof skeleton flat on the ground, attach the canopy top, then lift the assembled roof onto the perimeter legs. Setup takes Approx 20–40 minutes for an experienced two-person crew at this size. Never attempt single-person installation.
5) Does it have interior center poles?
No. The entire 128 sq ft is completely clear — no center poles, no guy wires, no interior obstructions. This is what makes the 8'x16' particularly effective for corridor and aisle applications where guests need to walk through the covered space without navigating around poles.
6) What is the longest single component?
7 ft 4 in — fits in most standard full-size pickup truck beds and cargo vans without a trailer. Despite being the largest tent in the 8-wide lineup, the frame is designed with multiple shorter rafters rather than a single long span, which is why the longest piece is shorter than the 8'x10' and 8'x12' models.
7) What sidewall options are available?
Three options: No Sidewalls (open on all four sides), Premium Solid White (fully enclosed), or Premium Cathedral Window (alternating solid and clear window panels). All sidewalls attach via the internal perimeter rope system sewn into the tent top perimeter — no hook and loop, no clip-on hardware that fails in wind. When using the 8'x16' as a corridor, sidewalls are typically installed only on the long sides.
8) What does "16 oz blockout vinyl" mean?
16 oz per square yard — nearly twice the weight of a standard consumer event canopy (typically 8–10 oz). The heavier fabric is more tear-resistant, puncture-resistant, and abrasion-resistant. "Blockout" means opaque — it blocks 95%+ UV and keeps the interior cooler than semi-translucent fabric. The commercial rental standard for high-volume tent fleets.
9) How does it ship?
LTL (Less Than Truckload) freight only. The carrier will contact you to schedule a delivery appointment — someone must be present to receive and sign. Ships in 1–3 business days; transit is typically 5–10 business days. Arrives on a pallet. Liftgate service is available upon request if a dock or forklift is not on-site.
10) What is the difference between 36" and 42" stakes?
42" stakes provide deeper penetration and are recommended for soft or sandy soil, events with higher anticipated winds, or long-term semi-permanent installations. 36" stakes are appropriate for most single-day events on standard grass. At 128 sq ft, wind load on the 8'x16' is significant — when in doubt, always choose 42". See the Stake Safety Standards guide (download above).
11) Are replacement parts available?
Yes. The 2" West Coast aluminum system uses industry-standard components. Email sales@beyondtent.com with a description or photo of the needed part. Because this is the universal West Coast frame standard, individual pipes, fittings, and connectors can be replaced without buying a new tent.
12) What is the warranty?
1-year limited warranty covering defects in materials and workmanship from the date of purchase. Limitations apply — review the Product Manual for full terms. Contact sales@beyondtent.com or call 866-296-3868 for warranty service.
Warranty: 1-year limited warranty covering defects in materials and workmanship from the date of purchase. Limitations apply. Review the Product Manual for full warranty terms. Contact sales@beyondtent.com or call 866-296-3868.
