Beyond Tent’s 30’x30’ Classic Series West Coast Frame Tent Commercial Grade delivers 900 square feet of clear-span, center-pole-free covered space — the most compact configuration in the 30-wide lineup, and one of the most versatile for rental operators who need a full-scale commercial tent in a compact footprint. 16 oz blockout vinyl, NFPA 701 certified, any-surface installation, built in the USA.
The 30’x30’ seats ~75 for a formal dinner, accommodates 6 dual vendor booth stations, or holds up to 90 standing guests — all in an unobstructed, pole-free interior.
Beyond Tent supplies commercial-grade tents exclusively to rental operators and event professionals — not a big-box store, not consumer equipment.
Why the 30’x30’ Works
900 sq ft, zero interior poles. Seats ~75 for dinner. 6 vendor booth stations. 90 standing guests. All without a single interior pole or guy wire.

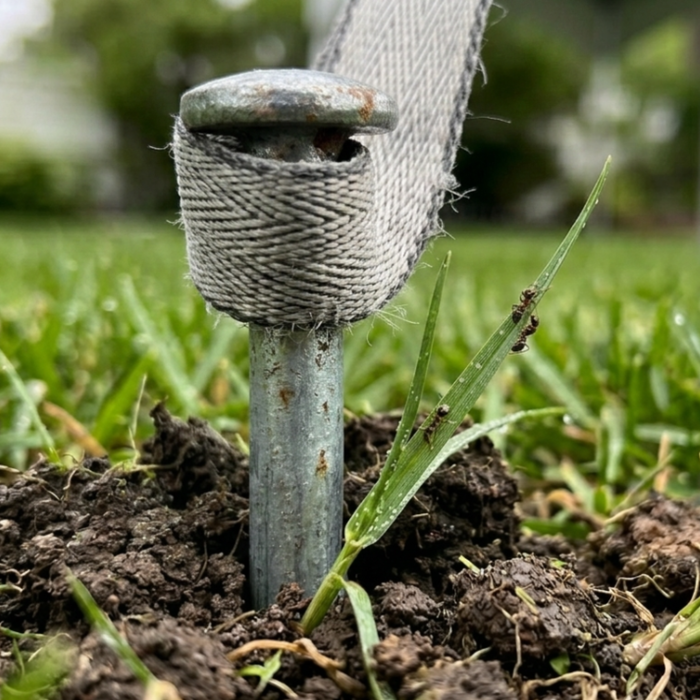

Any-surface installation. Stake into grass or ballast onto concrete/asphalt.
NFPA 701 certified. Permanently attached flame-retardant label — fire marshal compliant for permitted public events including parks, fairgrounds, and parking lots.
Expandable configurations available. Call for Quote — our team will spec the right multi-section layout for your application.
Technical Specifications
| Size |
30 ft x 30 ft |
| Square Footage |
900 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
12 ft standard · 13 ft with 8' legs |
| Pitch |
5 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2" Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
~650 lbs |
| Longest Component |
15 ft |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — expandable configurations available (Call for Quote) |
| Custom Printing Available |
Yes |
| Set Up Crew |
4–6 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1–3 business days |
| Shipping Method |
LTL Freight only |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide
| Vendor Rows (dual 10x10 booths) |
6 booth stations — two rows with a center aisle |
| Banquet / Seated Dinner |
~75 guests — 60" round tables, 8 per table |
| Theatre / Ceremony Seating |
~60 guests — chairs in rows |
| Standing / Cocktail Reception |
Up to 90 guests |
| Covered Footprint |
900 sq ft |
💰 Rental Operator ROI Estimate
| Average rental rate per event |
~$1,200 |
| Estimated break-even (events) |
~3–5 rentals |
| Annual events at 1/week (30 weeks) |
~30 events |
| Annual gross revenue potential |
~$36,000 |
Estimates based on market averages. Contact us for volume pricing.
| Grand Receptions & Weddings |
Seats ~75 for a formal dinner. Unobstructed sightlines across 900 sq ft — no center poles. |
| Festival & Fair Main Hub |
6 vendor booth stations across dual rows with clear center aisle. |
| Corporate Events & Galas |
Product launches, award ceremonies, gala dinners — professional commercial canopy with 12-ft blockout peak. |
| Government & Municipal Events |
NFPA 701-compliant structure for city events, public ceremonies, and community programs. |
| Athletic & Sporting Events |
Athlete staging, spectator zones, VIP areas on any surface. |
| Large-Scale Rental Inventory |
High per-event revenue potential. Break-even in 3–5 rentals. |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions: 30’x30’ Classic West Coast Frame Tent
1) Is the 30’x30’ NFPA 701 fire-rated for public permits?
Yes. NFPA 701 certified with permanently attached label. Compliant for parks, fairgrounds, parking lots, government sites, and all public venues.
2) Is this tent expandable?
Yes, expandable configurations are available. For expandable multi-section setups, call 866-296-3868 for a quote.
3) Can it be installed on concrete or asphalt?
Yes. Heavy-duty concrete ballast blocks or water weights at each leg. No ground stake modifications required.
4) How many people does setup require?
4–6 persons. Build the roof skeleton on the ground, install the canopy top, then raise onto perimeter legs.
5) Does it have interior center poles?
No. All 900 sq ft completely clear — no poles, no guy wires, no interior obstructions of any kind.
6) What is the peak height?
12 ft peak with standard 7-ft eave legs. 13 ft peak with optional 8-ft legs. 5 ft pitch across the 30-ft width.
7) Can I add sidewalls?
Yes. Solid white, cathedral window, or mesh sidewalls available for any combination of sides.
8) How does it ship?
LTL freight — carrier schedules delivery appointment. Ships in 1–3 business days, 5–10 days transit.
9) Is custom printing available?
Yes. Email sales@beyondtent.com with artwork files for a custom print quote.
10) Why choose Beyond Tent?
Dedicated B2B commercial tent company serving rental operators, event professionals, and government agencies. Call 866-296-3868 before you buy.
Width 30 ft. / 9.1m
Length 30 ft. / 9.1m
Area 900 ft² / 82.8 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 14'6" / 4.4m 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight Aluminum 641 Lbs. / 291 Kg. 649 Lbs. / 294 Kg.
Complete Weight Aluminum Hybrid 864 Lbs. / 392 Kg. 880 Lbs. / 399 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 21'10.5" / 6.7m
Persons required for setup 3-5
Occupancy 90 Sit Down Dinner - 150 Cathedral Seating
