Talk to a Commercial Tent Specialist
Questions about installation, sizing, permits, or general questions? Our team works exclusively with rental operators and event professionals.
✆ 866-296-3868 | ✉ sales@beyondtent.com
The 20x90 West Coast Frame Tent delivers 1800 sq ft of commercial-grade pole-free covered space enough for 16-18 vendor stations, a seated dinner for 180, or a ceremony for 300 guests. Available in 7' or 8' eave heights for maximum venue flexibility.
Built on a 2" anodized aluminum West Coast Frame system, the 20x90 assembles on any surface. The 16 oz / 540 gsm PVC blockout vinyl handles full-day sun, heat, and rain through the longest commercial event schedules.
Why it Works for Rental Operators
No center pole: All 1800 sq ft are open and usable. Run multiple vendor rows, banquet configurations, or mixed layouts without obstructions.
7' or 8' eave height: Two eave options let you scale the tent profile to any venue size or event type.
6-8 person setup: Designed for efficient assembly with a commercial crew in 4-6 hours.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 fire-retardant certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet.
Technical Resources & Downloads
| Size |
20 ft x 90 ft |
| Square Footage |
1800 sq ft |
| Eave Height |
7 ft or 8 ft |
| Overall Peak Height |
12 ft (7' eave) / 13 ft (8' eave) |
| Pitch |
5 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube or Double Tube |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop (Hook and Loop) Attachment |
| Replaceable Sidewall Rope |
Yes |

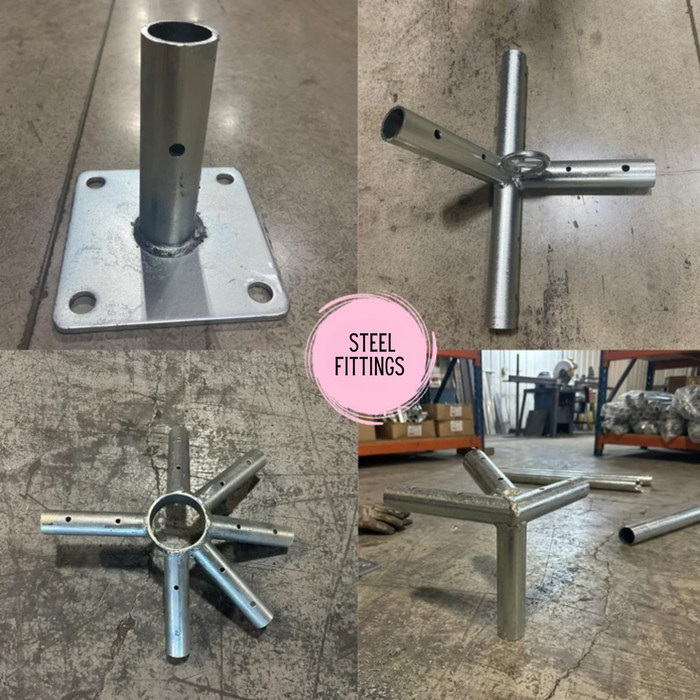

| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

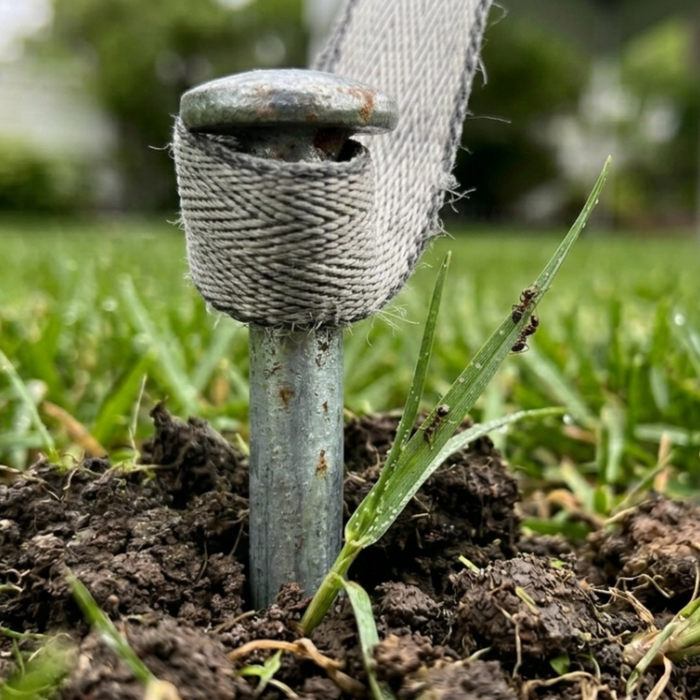

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
6-8 People |
| Commercial Grade |
Yes |
| Made in the USA |
YES |
| Min/Max Handling Time |
4-6 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
16-18 Stations |
| Banquet Seating (60" rounds) |
180 Guests |
| Theatre / Ceremony Seating |
300 Guests |
| Standing / Cocktail Reception |
257 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$2,500 |
| Break-Even Point |
6 Rentals |
| Estimated Annual Revenue (30 events) |
$75,000 / year |
| Feature |
Beyond Tent 20x90 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Vendor Market |
16-18 side-by-side vendor stations under one commercial canopy |
| Seated Outdoor Dinner |
Banquet layout for up to 180 guests |
| Outdoor Ceremony |
Ceremony canopy for up to 300 guests theatre-style |
| Festival Food Court |
Multi-vendor food and beverage section at large-scale events |
| Corporate Outdoor Event |
Client entertainment, awards, or outdoor conference coverage |
| Wedding Reception |
Cocktail or seated reception for up to 257 standing guests |
| Community or School Event |
Grand outdoor coverage for large fairs, festivals, or graduations |
| Equipment Staging |
Protected zone for staging large event logistics and production |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 20x90 West Coast Frame Tent
What is the footprint of the 20x90 West Coast Frame Tent?
The 20x90 covers 1800 sq ft of ground space with no center pole, delivering fully open, usable interior space for vendors, seating, or mixed-use layouts.
How many people can fit under a 20x90 frame tent?
The 20x90 accommodates 180 guests banquet-style, 300 in theatre seating, or 257 for a standing cocktail reception. For vendor setups, it supports 16-18 stations.
What eave heights are available for the 20x90?
The 20x90 is available in 7' and 8' eave heights, with overall peak heights of 12 ft and 13 ft respectively.
Can the 20x90 tent be set up on concrete or asphalt?
Yes. Use weight bags for hard surfaces like concrete and asphalt, and ground stakes for grass or dirt.
Is the 20x90 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for most commercial events, venues, and permitted installations.
What frame options are available for the 20x90?
The 20x90 is available in Single Tube and Double Tube frame configurations.
How long does it take to set up the 20x90 frame tent?
With a 6-8 person crew, setup typically takes 4-6 hours depending on surface conditions and crew experience.
Does the 20x90 frame tent include sidewalls?
Sidewalls are available as an add-on. The 20x90 is fully sidewall-compatible using hook-and-loop (Hook and Loop) attachment.
What warranty does the 20x90 come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 20 ft. / 6.1m
Length 90 ft. / 27.4m
Area 1800 ft² / 167.1 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 12' / 3.7m 13' / 4.06m
Pitch 5' / 1.5m
Complete Weight Aluminum 1424 Lbs. / 646 Kg. 1490 Lbs. / 676 Kg.
Complete Weight Galvanized 1708 Lbs. / 775 Kg. 1741 Lbs. / 790 Kg.
Complete Weight Aluminum Hybrid 1954 Lbs. / 886 Kg. 1997 Lbs. / 906 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 4-7
Occupancy 180 Sit Down Dinner - 300 Cathedral Seating
