Beyond Tent's 20'x60' Classic Series West Coast Frame Tent Commercial Grade delivers 1,200 square feet of clear-span, center-pole-free covered space. 16 oz blockout vinyl, NFPA 701 certified, any-surface setup — built for operators running high-volume rental businesses.
The 20'x60' is a large-format commercial tent designed for operators who need maximum covered square footage with a single continuous clear-span structure. Zero interior poles across all 1,200 sq ft.
Beyond Tent supplies commercial-grade tents exclusively to rental operators and event professionals — not a big-box store, not consumer equipment. Expert guidance, direct operator support, industry pricing.
Why the 20'x60' Works
1,200 sq ft of clear-span space. Seats 100 for dinner. 12 vendor booth stations (6 per side). 120 standing guests. All without a single interior pole, guy wire, or structural interruption.
Any-surface deployment. Stake into grass or ballast onto concrete/asphalt. Same tent, same process, any venue.
NFPA 701 certified. Permanently attached flame-retardant label — fire marshal compliant for permitted public events.
Expandable. Links end-to-end with additional 20-wide sections for any run length.
Technical Specifications
| Size |
20 ft x 60 ft |
| Square Footage |
1,200 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
10 ft standard · 11 ft with 8' legs |
| Pitch |
3 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2" Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
~970 lbs |
| Longest Component |
10 ft |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |
| Anchoring System |

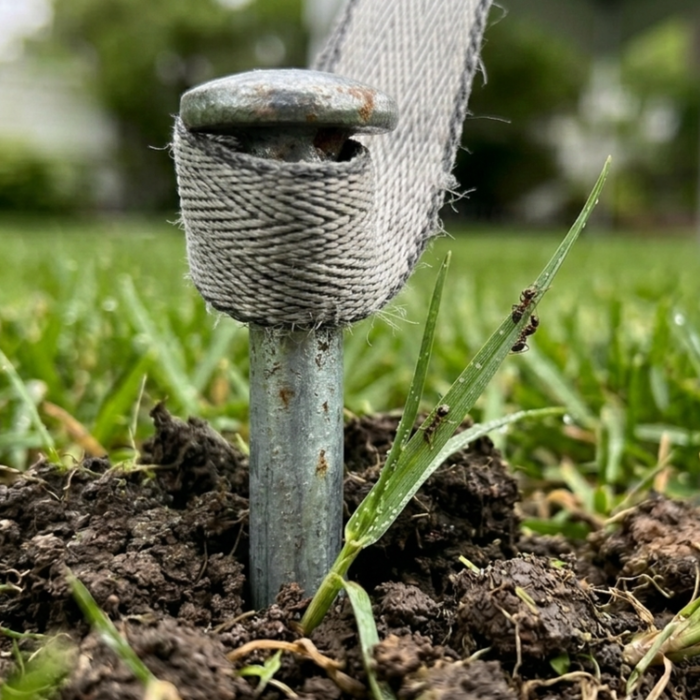

Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — expandable configurations available (Call for Quote) |
| Custom Printing Available |
Yes |
| Set Up Crew |
3–6 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1–3 business days |
| Shipping Method |
LTL Freight only |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide
| Vendor Rows (10x10 booths) |
12 booth stations — 6 booths per side, two rows |
| Banquet / Seated Dinner |
~100 guests — 60" round tables, 8 per table |
| Theatre / Ceremony Seating |
~80 guests — chairs in rows |
| Standing / Cocktail Reception |
Up to 120 guests |
| Covered Footprint |
1,200 sq ft |
Rental Operator ROI Estimate
| Average rental rate per event |
~$1,100 |
| Estimated break-even (events) |
~3 rentals |
| Annual events at 1/week (30 weeks) |
~30 events |
| Annual gross revenue potential |
~$33,000 |
Estimates based on market averages. Results vary by market and operator. Contact us for volume pricing.
Commercial Grade vs Standard Event Canopy
| Feature |
BeyondTent 20'x60' Commercial |
Standard Consumer Canopy |
| Frame Material |
✓ 2" Anodized Aluminum (rust-proof) |
✗ Powder-coated steel (rusts) |
| Fabric Weight |
✓ 16 oz / 540 gsm blockout vinyl |
✗ 8–10 oz thin polyester |
| Fire Certification |
✓ NFPA 701 (fire marshal approved) |
✗ Not fire-rated for public permits |
| Center Poles |
✓ None — fully clear-span |
✗ Center poles required |
| Event Permit Eligible |
✓ Yes — attached certification label |
✗ Typically rejected by fire marshal |
| Hard Surface Deployment |
✓ Ballast weights on concrete/asphalt |
✗ Stakes only (grass required) |
| Sidewall System |
✓ Internal perimeter rope system |
✗ Velcro or clip-on (fails in wind) |
| Long-Term Installation |
✓ 6+ months |
✗ Short-term use only |
| Replacement Parts |
✓ Universal West Coast components |
✗ Proprietary, often discontinued |
| Expandable |
✓ Yes — link sections for any length |
✗ Fixed size only |
Common Use Cases
| Outdoor Weddings & Receptions |
Seats 100 guests for dinner. Unobstructed sightlines, full décor flexibility — zero center poles. |
| Vendor & Farmers Markets |
12 standard 10×10 vendor booths — 6 per side with clear center aisle. |
| Corporate & Private Events |
Product launches, awards, brand activations under the 10-ft blockout canopy. |
| Community Fundraisers & Festivals |
NFPA 701-compliant main hub for 120 standing or full seated programming. |
| Athletic & Sporting Events |
Staging, registration, spectator shelter on hard surfaces via ballast weights. |
| Rental Operator Inventory |
Strong annual revenue potential. Break-even in ~3 rentals at standard rates. |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions: 20'x60' Classic West Coast Frame Tent
1) Is the 20'x60' fire-rated for public event permits?
Yes. NFPA 701 certified with permanently attached label. Compliant for parks, fairgrounds, parking lots, and all public venues.
2) Can the 20'x60' be deployed on hard surfaces?
Yes. Heavy-duty concrete ballast blocks or water weights. No ground stakes required.
3) How many guests can the 20'x60' accommodate?
Seated dinner: ~100. Theatre: ~80. Standing: 120. Vendor booths: 12 stations.
4) How does the 20'x60' link to additional sections?
End-to-end connection via matching eave fittings and continuous ridgeline. Contact us for multi-section configuration and pricing.
5) What is the weather performance?
100% waterproof 16 oz vinyl. Moderate wind rated. Not for storms or heavy snow. Always ballast/stake to spec.
6) How long does shipping take?
1–3 day processing + 5–10 day LTL freight delivery. Call 866-296-3868 for time-sensitive schedules.
7) Does it have interior center poles?
No. All 1,200 sq ft completely clear. No poles, no guy wires.
8) What is 16 oz blockout vinyl?
16 oz per sq yard, nearly twice consumer weight. Blocks 95%+ UV. Cooler interior, lasting durability through hundreds of rentals.
9) Can I add sidewalls?
Yes. Solid white, cathedral window, or mesh. Any combination of sides.
10) Is custom printing available?
Yes. Email sales@beyondtent.com with artwork files for a quote.
11) Setup crew required?
3–6 people. Roof skeleton on ground, canopy top installed, lift onto perimeter legs.
12) How do I maintain the vinyl top?
Warm water and mild soap. Fully dry before storage. Never fold wet — causes permanent mold staining.
13) Are replacement parts available?
Yes. Universal West Coast aluminum pipes and fittings. Email sales@beyondtent.com.
14) Minimum setup temperature?
40°F. Below this, vinyl stiffens and can crack.
15) Why choose Beyond Tent?
Dedicated B2B commercial tent company. We work exclusively with rental operators and event professionals. Call 866-296-3868 before you buy.
Width 20 ft. / 6.1m
Length 60 ft. / 18.3m
Area 1200 ft² / 111.6 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 12' / 3.7m 13' / 4.06m
Pitch 5' / 1.5m
Complete Weight Aluminum 1005 Lbs. / 456 Kg. 1053 Lbs. / 478 Kg.
Complete Weight Galvanized 1207 Lbs. / 547 Kg. 1231 Lbs. / 558 Kg.
Complete Weight Aluminum Hybrid 1387 Lbs. / 629 Kg. 1419 Lbs. / 644 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 3-6
Occupancy 120 Sit Down Dinner - 200 Cathedral Seating
