The 20x100 West Coast Frame Tent is our largest 20-wide configuration, delivering 2000 sq ft of commercial-grade pole-free covered space. It accommodates 18-20 vendor stations, a seated dinner for 200, a ceremony for 333 guests, or a standing reception for 286. Available in 7' or 8' eave heights for maximum venue flexibility.
Built on a 2" anodized aluminum West Coast Frame system, the 20x100 assembles on any surface. The 16 oz / 540 gsm PVC blockout vinyl is engineered for full-day and multi-day commercial event schedules in all conditions.
Why it Works for Rental Operators
No center pole: All 2000 sq ft are open and usable. Run multiple vendor rows, large banquet configurations, or mixed-use layouts without any obstructions.
7' or 8' eave height: Two eave options give you the flexibility to match any venue profile or event scale.
6-8 person setup: Designed for efficient assembly with a commercial crew in 4-6 hours.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 fire-retardant certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet.
Technical Resources & Downloads
| Size |
20 ft x 100 ft |
| Square Footage |
2000 sq ft |
| Eave Height |
7 ft or 8 ft |
| Overall Peak Height |
12 ft (7' eave) / 13 ft (8' eave) |
| Pitch |
5 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube or Double Tube |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop (Hook and Loop) Attachment |
| Replaceable Sidewall Rope |
Yes |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

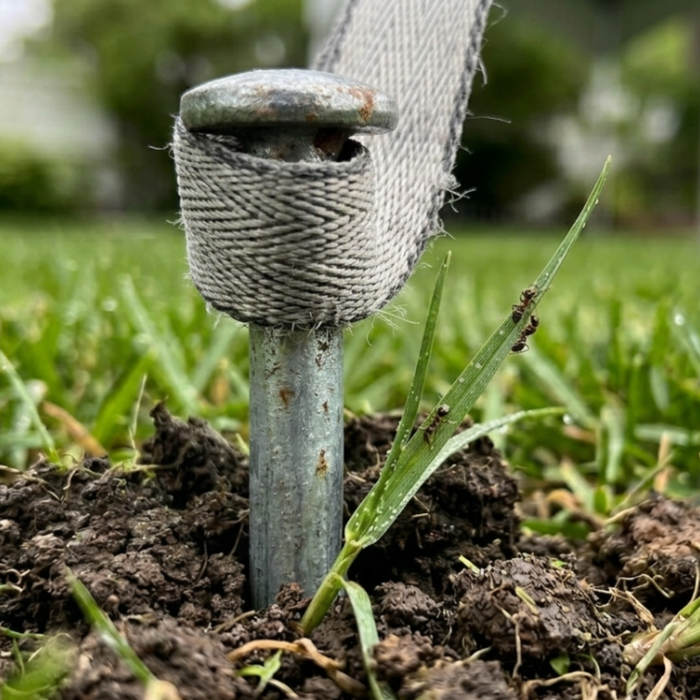

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
6-8 People |
| Commercial Grade |
Yes |
| Made in the USA |
YES |
| Min/Max Handling Time |
4-6 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
18-20 Stations |
| Banquet Seating (60" rounds) |
200 Guests |
| Theatre / Ceremony Seating |
333 Guests |
| Standing / Cocktail Reception |
286 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$2,800 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$84,000 / year |
| Feature |
Beyond Tent 20x100 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Vendor Market |
18-20 side-by-side vendor stations under one commercial canopy |
| Seated Outdoor Dinner |
Banquet layout for up to 200 guests |
| Outdoor Ceremony |
Ceremony canopy for up to 333 guests theatre-style |
| Festival Food Court |
Large multi-vendor food and beverage section at major events |
| Corporate Outdoor Event |
Large-scale client entertainment, awards, or outdoor conference coverage |
| Wedding Reception |
Cocktail or seated reception for up to 286 standing guests |
| Community or School Event |
Grand outdoor coverage for large fairs, festivals, or graduations |
| Equipment Staging |
Protected zone for staging large event logistics and full production crews |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 20x100 West Coast Frame Tent
What is the footprint of the 20x100 West Coast Frame Tent?
The 20x100 covers 2000 sq ft of ground space with no center pole, delivering fully open, usable interior space for vendors, seating, or mixed-use layouts.
How many people can fit under a 20x100 frame tent?
The 20x100 accommodates 200 guests banquet-style, 333 in theatre seating, or 286 for a standing cocktail reception. For vendor setups, it supports 18-20 stations.
What eave heights are available for the 20x100?
The 20x100 is available in 7' and 8' eave heights, with overall peak heights of 12 ft and 13 ft respectively.
Can the 20x100 tent be set up on concrete or asphalt?
Yes. Use weight bags for hard surfaces like concrete and asphalt, and ground stakes for grass or dirt.
Is the 20x100 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for most commercial events, venues, and permitted installations.
What frame options are available for the 20x100?
The 20x100 is available in Single Tube and Double Tube frame configurations.
How long does it take to set up the 20x100 frame tent?
With a 6-8 person crew, setup typically takes 4-6 hours depending on surface conditions and crew experience.
Does the 20x100 frame tent include sidewalls?
Sidewalls are available as an add-on. The 20x100 is fully sidewall-compatible using hook-and-loop (Hook and Loop) attachment.
How does the 20x100 frame tent ship?
The 20x100 ships via LTL freight on a pallet directly to your facility.
What warranty does the 20x100 come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 20 ft. / 6.1m
Length 90 ft. / 27.4m
Area 1800 ft² / 167.1 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 12' / 3.7m 13' / 4.06m
Pitch 5' / 1.5m
Complete Weight Aluminum 1424 Lbs. / 646 Kg. 1490 Lbs. / 676 Kg.
Complete Weight Galvanized 1708 Lbs. / 775 Kg. 1741 Lbs. / 790 Kg.
Complete Weight Aluminum Hybrid 1954 Lbs. / 886 Kg. 1997 Lbs. / 906 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 4-7
Occupancy 180 Sit Down Dinner - 300 Cathedral Seating
