Beyond Tent's 12'x40' Classic Series West Coast Frame Tent Commercial Grade delivers 480 square feet of clear-span, center-pole-free covered space on a proven 2-inch anodized aluminum West Coast frame. Commercial-grade 16 oz blockout vinyl, NFPA 701 certified, any-surface setup — built for rental operators and event professionals who need a reliable, versatile tent that deploys on grass, asphalt, or concrete without compromise.
Beyond Tent specializes in commercial-grade event tents for rental operators and event professionals. Our focus on heavy-duty commercial inventory means expert guidance, direct support, and pricing that reflects what the industry demands.
Why the 12'x40' Works
Versatile mid-width format. At 12 feet wide, this tent bridges the gap between a narrow corridor tent and a full gathering tent — wide enough for comfortable seating or a single vendor row, compact enough to deploy in tight or irregular venues where larger tents don't fit.
Any-surface deployment. Stake into grass or ballast-weight onto concrete, asphalt, or any hard surface. The same tent, the same setup, any venue.
NFPA 701 certified for permitted events. Every canopy ships with a permanently attached flame-retardant label — the documentation fire marshals require for public assembly permits.
Technical Specifications
| Size |
12 ft x 40 ft |
| Square Footage |
480 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
10 ft standard · 11 ft with 8' legs |
| Pitch |
3 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2" Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
~675 lbs |
| Longest Component |
11 ft |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |

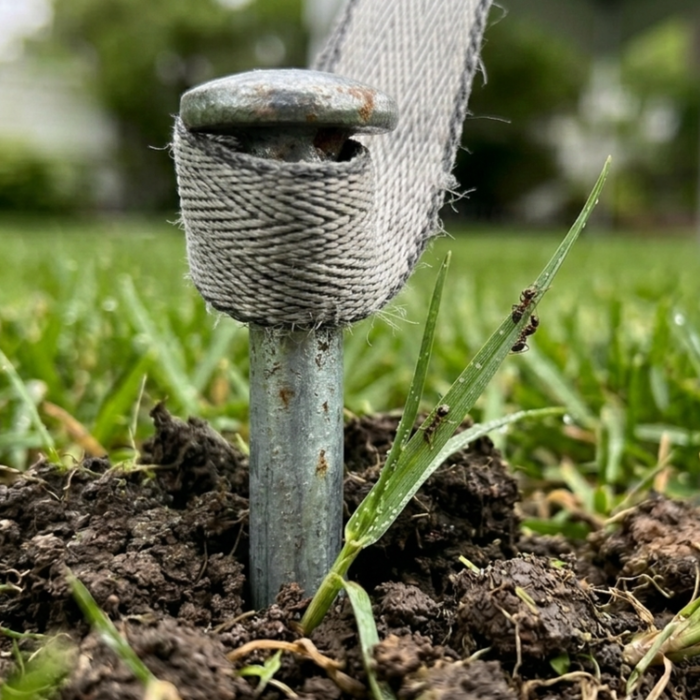

| Anchoring System |
Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — add sections to extend length |
| Custom Printing Available |
Yes |
| Set Up Crew |
3–5 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1-3 business days |
| Shipping Method |
LTL Freight |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide
| Seated Guests (banquet tables) |
~40 guests — rectangular tables along the interior perimeter |
| Seated Guests (round tables) |
~32 guests — 60-inch rounds with chairs on all sides |
| Standing / Cocktail |
Up to 48 guests |
| Vendor Display (single row) |
4 standard 6–8 ft vendor booth stations along one side |
| Covered Footprint |
480 sq ft of continuous sheltered space |
Common Use Cases
| Outdoor Celebrations & Gatherings |
The 12x40's 480 sq ft of covered space comfortably accommodates 40–48 guests for birthdays, anniversaries, graduation parties, and community celebrations — large enough for meaningful group coverage, compact enough for residential and small-venue deployment. |
| Vendor Markets & Pop-Up Retail |
Deploy the 12x40 as a covered display row for single-sided vendor booths or a solo operator setup — ideal for craft fairs, farmers markets, and pop-up retail events where a full-width vendor-row tent is more than needed. |
| Registration & Check-In Stations |
Event coordinators use the 12x40 as a covered registration or check-in corridor — a dedicated entry point structure that keeps staff and incoming guests protected during high-traffic arrival windows. |
| Church & Community Events |
Churches, civic clubs, and neighborhood associations use the 12x40 for outdoor fellowship events, potluck gatherings, and seasonal community programming where a mid-size covered area is needed without requiring a full-scale event tent. |
| Food & Beverage Service |
Catering operators and food service vendors use the 12x40 as a covered service station — buffet line, bar setup, or food prep area — keeping food, staff, and guests protected from weather throughout an event. |
| Tent Rental Inventory |
Rental operators add the 12x40 as a versatile mid-size SKU — bookable as a standalone for small events, or deployed as a supplemental covered area alongside larger tents at complex event setups. |
Frequently Asked Questions: 12'x40' Classic West Coast Frame Tent
1) Is the 12'x40' Classic West Coast Frame Tent fire-rated for public event permits?
Yes. The 12'x40' Classic Series West Coast Frame Tent Commercial Grade meets or exceeds NFPA 701 standards. Every tent canopy features a permanently attached flame-retardant label — the documentation fire marshals require for public assembly permits at schools, parks, and public venues.
2) Can the 12'x40' be set up on asphalt or concrete?
Yes. This freestanding aluminum structure anchors on hard surfaces using heavy-duty concrete blocks or water weights — fully deployable on parking lots, paved event venues, and concrete pads without ground stakes.
3) How much wind can the 12'x40' withstand?
It handles moderate winds well. The commercial-grade aluminum framework is significantly more stable than standard pop-up canopies. Ensure all perimeter legs are properly staked or ballasted for safe deployment in variable conditions.
4) Is the 12'x40' snow resistant?
No. This non-engineered frame structure is not designed to support accumulated snow weight. Take the tent down or clear snow buildup before any significant snowfall event.
5) How long does it take to process my order?
It takes 1 to 3 business days. Once your order is placed, our team processes, packs, and preps your tent for freight pickup.
6) How long will it take for my order to arrive?
It takes 7 to 10 days depending on your location. Transit times vary based on freight carrier routing to your city or state.
7) Does the 12'x40' require interior center poles?
No. The West Coast frame is fully freestanding — all 480 square feet of interior space is 100% unobstructed. No center poles, no guy wires, no structural interruptions.
8) Why is 16oz Blockout Vinyl better than standard canopy fabric?
It blocks 100% of UV rays, keeping the interior significantly cooler than under standard canopy fabric. The opaque blockout material also gives full control over interior lighting and protects guests and merchandise from direct sun exposure.
9) Is the 12'x40' expandable?
Yes — the 12'x40' can be extended by adding additional tent sections end-to-end. Contact us for sectional top availability to configure your ideal run length.
10) How is the 12'x40' shipped and delivered?
It ships via LTL freight. Delivery requires a forklift or loading dock, and someone must be present to inspect and sign for the pallets. Document any shipping damage with photos before signing.
11) How do I clean and maintain the 16oz vinyl top?
Wash with warm water and mild soap — never bleach or abrasive chemicals. Always ensure the canopy is completely dry before folding for storage to prevent mold and mildew.
12) What are the benefits of the anodized aluminum frame?
Anodized aluminum completely prevents rust and oxidation. The 11 ft longest component makes the 12-wide series straightforward to transport and store, fitting in standard cargo vans and box trucks used by most rental operators.
13) Are replacement parts available?
Yes. The West Coast system uses universally available components — pipes, fittings, and canopy tops. Contact us at sales@beyondtent.com with your specific part need.
14) How many crew members are needed for setup?
3–5 people for this size. Build the roof skeleton on the ground, lace the vinyl top over the framework, then lift the assembled structure to insert the perimeter legs.
15) Why do event professionals and government agencies choose Beyond Tent?
Because we are a dedicated B2B company. We supply commercial-grade frame tents, inflatables, and event furniture built specifically to withstand the rigorous demands of the rental industry. By focusing on heavy-duty materials like rust-proof frames and 16oz blockout vinyl, we provide the reliable infrastructure your business needs to generate maximum ROI.
Width 12 ft. /3.7m
Length 40 ft. /12.2m
Area 480 ft² / 45.1 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 10' / 3.1m 11' / 3.4m
Pitch 3' / 0.9m
Complete Weight Aluminum 506 Lbs. / 230 Kg. 516 Lbs. / 234 Kg.
Complete Weight Galvanized 596 Lbs. / 270 Kg. 611 Lbs. / 277 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 11'4" / 3.5m
Persons required for setup 2-4
Occupancy 48 Sit Down Dinner - 80 Cathedral Seating
