Talk to a Commercial Tent Specialist
Questions about installation, sizing, permits, or general questions? Our team works exclusively with rental operators and event professionals.
☎ 866-296-3868 | ✉ sales@beyondtent.com
Beyond Tent's 12'x24' Classic Series West Coast Frame Tent Commercial Grade delivers 288 square feet of clear-span, center-pole-free covered space. 16 oz blockout vinyl, NFPA 701 certified, any-surface installation — the 12-wide is the versatile mid-size format that handles single vendor rows, intimate receptions, and small-to-mid corporate events with equal ease.
The 12'x24' bridges the narrow corridor format of the 10-wide and the full-width layouts of the 20-wide. Zero interior poles across all 288 sq ft.
Beyond Tent supplies commercial-grade tents exclusively to rental operators and event professionals — not a big-box store, not consumer equipment.
Why the 12'x24' Works
288 sq ft, zero interior poles. Seats 24 for dinner. 2 standard 10×10 vendor booths in a single row. 28 standing guests.

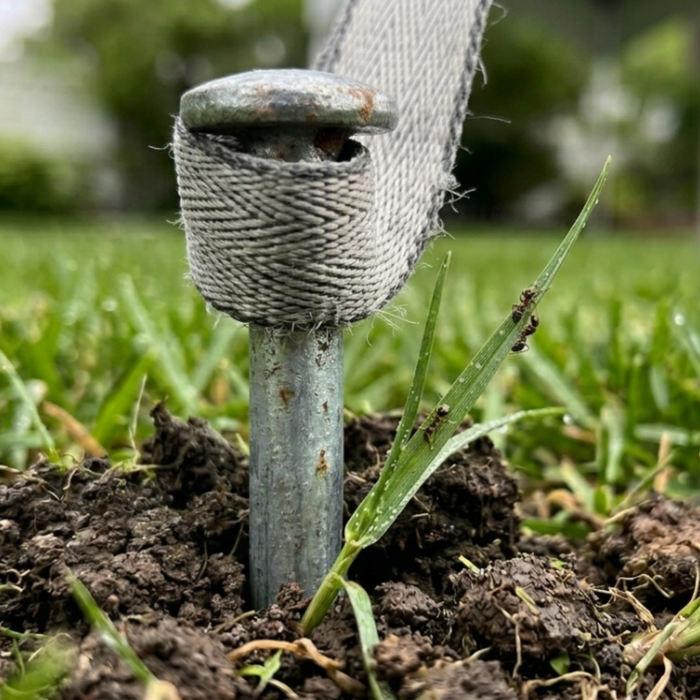

Any-surface installation. Stake into grass or ballast onto concrete/asphalt.
NFPA 701 certified. Permanently attached flame-retardant label — fire marshal compliant for permitted public events.
Expandable configurations available. Call for Quote — our team will spec the right multi-section layout for your application.
Technical Specifications
| Size |
12 ft x 24 ft |
| Square Footage |
288 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
9 ft standard · 10 ft with 8’ legs |
| Pitch |
2.5 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2” Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
~215 lbs |
| Longest Component |
10 ft |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32” Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — expandable configurations available (Call for Quote) |
| Custom Printing Available |
Yes |
| Set Up Crew |
2 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1–3 business days |
| Shipping Method |
LTL Freight only |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide
| Vendor Row (10x10 booths) |
2 booth stations — single row along the length |
| Banquet / Seated Dinner |
~24 guests — 60” round tables |
| Theatre / Ceremony Seating |
~19 guests — chairs in rows |
| Standing / Cocktail Reception |
Up to 28 guests |
| Covered Footprint |
288 sq ft |
Rental Operator ROI Estimate
| Average rental rate per event |
~$185 |
| Estimated break-even (events) |
~3–6 rentals |
| Annual events at 1/week (30 weeks) |
~30 events |
| Annual gross revenue potential |
~$5550 |
Estimates based on market averages. Contact us for pricing.
Commercial Grade vs Standard Event Canopy
| Feature |
BeyondTent 12'x24' Commercial |
Standard Consumer Canopy |
| Frame Material |
✓ 2” Anodized Aluminum (rust-proof) |
✗ Powder-coated steel (rusts) |
| Fabric Weight |
✓ 16 oz / 540 gsm blockout vinyl |
✗ 8–10 oz thin polyester |
| Fire Certification |
✓ NFPA 701 (fire marshal approved) |
✗ Not fire-rated for public permits |
| Center Poles |
✓ None — fully clear-span |
✗ Center poles required |
| Event Permit Eligible |
✓ Yes — attached certification label |
✗ Typically rejected by fire marshal |
| Hard Surface Installation |
✓ Ballast weights on concrete/asphalt |
✗ Stakes only (grass required) |
| Sidewall System |
✓ Internal perimeter rope system |
✗ Velcro or clip-on (fails in wind) |
| Long-Term Installation |
✓ 6+ months |
✗ Short-term use only |
| Replacement Parts |
✓ Universal West Coast components |
✗ Proprietary, often discontinued |
| Expandable |
✓ Yes — Call for Quote |
✗ Fixed size only |
Common Use Cases
| Vendor Row & Market Aisle |
2 standard 10×10 booths in a covered single row — farmers markets, craft fairs, artisan shows. |
| Outdoor Weddings & Receptions |
Intimate seated dinner for 24 guests. Zero center-pole obstruction. |
| Corporate & Private Events |
Registration, catering, branded activations. |
| School & Community Events |
NFPA 701-compliant covered space for carnivals, fundraisers, and community gatherings on any surface. |
| Covered Walkway |
Link multiple 12'x24' units for covered entrance corridors at festivals and outdoor venues. |
| Rental Operator Inventory |
Versatile mid-size tent that pairs with 20-wide for custom multi-width layouts. |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions: 12'x24' Classic West Coast Frame Tent
1) Is the 12'x24' NFPA 701 fire-rated?
Yes. NFPA 701 certified with permanently attached label. Compliant for parks, fairgrounds, parking lots, and all public venues.
2) Is this tent expandable?
Yes, expandable configurations are available. The standard unit ships with a single-piece tent top. For expandable multi-section setups, call 866-296-3868 for a quote — our team will spec the right configuration for your needs.
3) Can it be installed on concrete or asphalt?
Yes. Concrete ballast blocks or water weights at each leg. No ground stake modifications required.
4) How many people does setup take?
2 persons. Build roof skeleton on the ground, attach canopy top, lift onto perimeter legs. Typically 20–45 minutes.
5) Does it have interior center poles?
No. All 288 sq ft completely clear — no poles, no guy wires.
6) What is the peak height?
9 ft peak with standard 7-ft eave legs. 10 ft peak with optional 8-ft legs. 2.5 ft pitch across the 12-ft width.
7) Can I add sidewalls?
Yes. Solid white, cathedral window, or mesh. Any combination of sides via the internal perimeter rope system.
8) How does it ship?
LTL freight — carrier schedules delivery appointment. Ships in 1–3 business days, 5–10 days transit. Someone must be present to sign.
9) What is 16 oz blockout vinyl?
16 oz per sq yard — nearly twice consumer canopy weight. Blocks 95%+ UV through hundreds of rental cycles.
10) Is custom printing available?
Yes. Email sales@beyondtent.com with artwork files for a quote.
11) Minimum setup temperature?
40°F. Below this, vinyl stiffens and can crack.

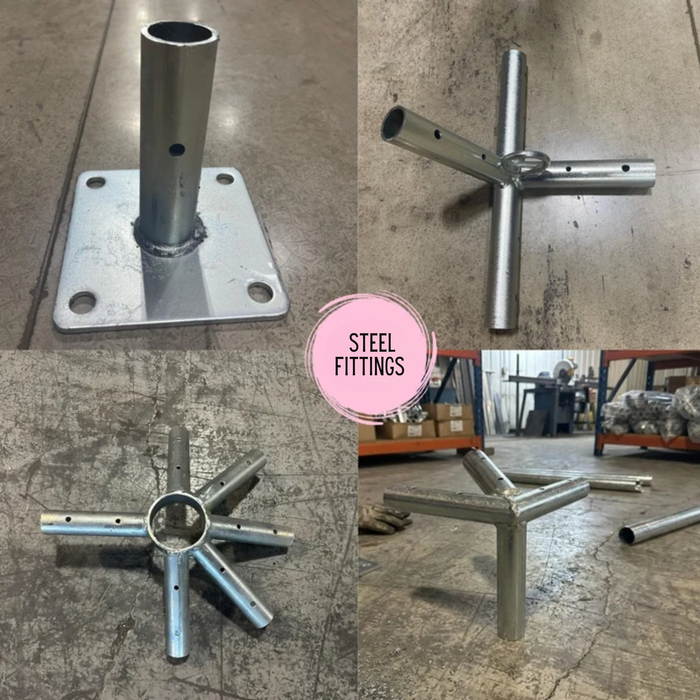

12) Are replacement parts available?
Yes. Universal West Coast aluminum pipes and fittings. Email sales@beyondtent.com.
13) How long can it stay installed?
6 months or more for long-term semi-permanent installations.
14) How do I maintain the vinyl top?
Warm water and mild soap. Fully dry before storage. Never fold wet — causes permanent mold staining.
15) Why choose Beyond Tent?
Dedicated B2B commercial tent company. We work exclusively with rental operators and event professionals. Call 866-296-3868 before you buy.
Width 12 ft. /3.7m
Length 24 ft. /7.3m
Area 288 ft² / 27.0 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 10' / 3.1m 11' / 3.4m
Pitch 3' / 0.9m
Complete Weight Aluminum 346 Lbs. / 157 Kg. 352 Lbs. / 160 Kg.
Complete Weight Galvanized 401 Lbs. / 182 Kg. 410 Lbs. / 186 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 11'4" / 3.5m
Persons required for setup 2-4
Occupancy 29 Sit Down Dinner - 48 Cathedral Seating
