The 10x60 West Coast Frame Tent delivers 600 sq ft of commercial-grade pole-free covered space — 6 full vendor stations, a seated dinner for 60, or a ceremony for 100 guests. At 7' eave with a fully clear-span interior, this is a full market-row tent ready for farmers markets, craft fairs, and multi-day events.
The 2" anodized aluminum West Coast Frame assembles on any surface with a 2-4 person crew in 1-2 hours. Links end-to-end with other 10-wide sections for longer covered runs. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified and built for hundreds of commercial rental cycles.
No center pole: All 600 sq ft open — 6 booth stations with no frame obstructions.
Linkable: Connects end-to-end with other 10-wide sections.
Commercial-grade vinyl: NFPA 701 certified, UV resistant, mold & mildew resistant.
LTL freight delivery: Ships to your facility on a pallet.
Technical Resources & Downloads
| Size |
10 ft x 60 ft |
| Square Footage |
600 sq ft |
| Eave Height |
7 ft |
| Overall Peak Height |
Approx 9'6" |
| Pitch |
Approx 2'6" |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube |
| Longest Component |
Approx 9'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop Attachment |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

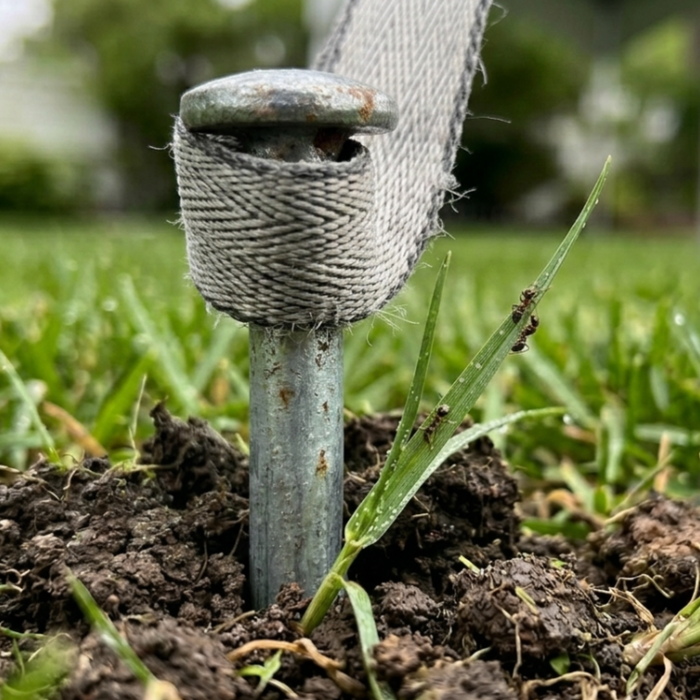

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Linkable / Expandable |
Yes — Links End-to-End with Other 10-Wide Sections |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
2-4 People |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
1-2 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
6 Stations |
| Banquet Seating (60" rounds) |
60 Guests |
| Theatre / Ceremony Seating |
100 Guests |
| Standing / Cocktail Reception |
86 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$1,300 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$39,000 / year |
| Feature |
Beyond Tent 10x60 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| Linkable / Corridor-Ready |
✔ Yes |
✘ Not designed for linking |
| Use Case |
Details |
| 6-Booth Vendor Row |
Six side-by-side 10x10 stations in one covered frame |
| Full Market Row |
Self-contained covered vendor row at farmers markets and craft fairs |
| Seated Outdoor Dinner |
Banquet layout for up to 60 guests |
| Outdoor Ceremony |
Ceremony coverage for up to 100 guests |
| Corporate Outdoor Event |
Client entertainment, awards, or outdoor conference coverage |
| Community Event |
School fair, church festival, or large outdoor market |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 10x60 West Coast Frame Tent
What is the footprint of the 10x60 West Coast Frame Tent?
The 10x60 covers 600 sq ft with no center pole — 6 full vendor stations or a ceremony for up to 100 guests.
How many vendor stations or guests fit under a 10x60?
6 full vendor stations, up to 60 guests banquet-style, 100 in theatre seating, or 86 standing.
What eave height is available for the 10x60?
The 10x60 has a 7 ft eave height with an overall peak height of approximately 9'6".
Can the 10x60 tent be installed on concrete or asphalt?
Yes. Use weight bags on hard surfaces and ground stakes for grass or dirt.
Is the 10x60 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for permitted events at parks, fairgrounds, parking lots, and public venues.
What frame material is used in the 10x60?
2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial use.
How long does it take to set up the 10x60?
With a 2-4 person crew, setup typically takes 1-2 hours depending on surface conditions.
Does the 10x60 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 10x60 is fully sidewall-compatible using hook-and-loop attachment. Select the Sidewall Kit variant at checkout or contact sales@beyondtent.com for custom panel options.
How does the 10x60 frame tent ship?
Ships via LTL freight on a pallet directly to your facility.
Can I link multiple 10x60 tents together?
Yes. Links end-to-end with any other 10-wide section for covered corridors of any length. Call 866-296-3868 for multi-section guidance.
What warranty does the 10x60 West Coast Frame Tent come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 10 ft. / 3.0m
Length 60 ft. /18.3m
Area 600 ft² / 54.9 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 9'6" / 2.9m 10'6" / 3.2m
Pitch 2'6" / 0.8m
Complete Weight Aluminum 755 Lbs. / 342 Kg. 769 Lbs. /349 Kg.
Complete Weight Galvanized 869 Lbs. / 394 Kg. 890 Lbs. / 404 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 9'4" / 2.8m
Persons required for setup 3-6
Occupancy 60 Sit Down Dinner - 100 Cathedral Seating
