The 10x30 West Coast Frame Tent delivers 300 sq ft of commercial-grade pole-free covered space — 3 full vendor stations, a seated dinner for 30, or a covered corridor unit for markets and festivals. With a 7' eave and clear-span interior, it deploys on any surface without a single pole in the way.
The 2" anodized aluminum West Coast Frame system assembles in under an hour with a 2-3 person crew on grass, dirt, concrete, or asphalt. Link multiple 10-wide units end-to-end for covered runs of any length. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified and engineered for hundreds of commercial rental cycles.
Why it Works for Rental Operators
No center pole: All 300 sq ft is open — 3 clean booth stations in a single covered frame.
Linkable: Connect to other 10-wide sections to build market corridors of any length.
2-3 person setup: Efficient assembly on any surface in 30-60 minutes.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet.
Technical Resources & Downloads
| Size |
10 ft x 30 ft |
| Square Footage |
300 sq ft |
| Eave Height |
7 ft |
| Overall Peak Height |
Approx 9'6" |
| Pitch |
Approx 2'6" |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube |
| Longest Component |
Approx 9'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop Attachment |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

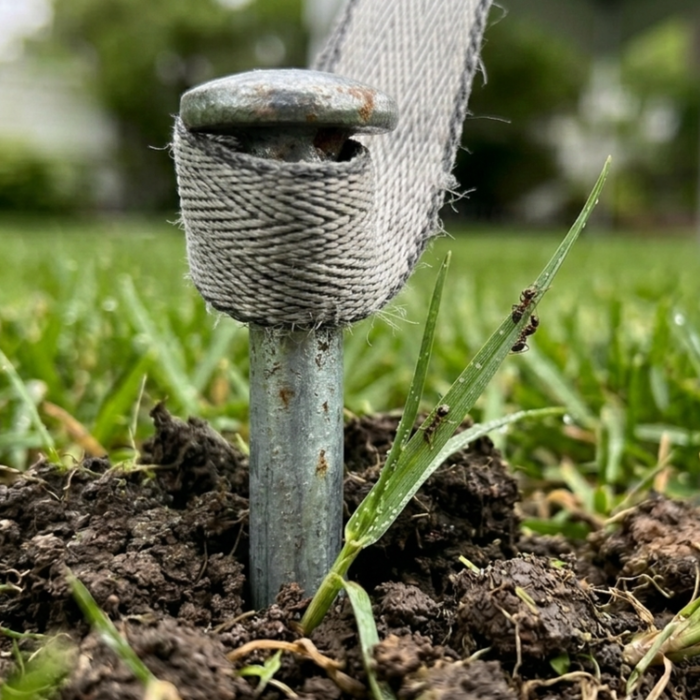

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Linkable / Expandable |
Yes — Links End-to-End with Other 10-Wide Sections |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
2-3 People |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
30-60 Minutes |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
3 Stations |
| Banquet Seating (60" rounds) |
30 Guests |
| Theatre / Ceremony Seating |
50 Guests |
| Standing / Cocktail Reception |
43 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$750 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$22,500 / year |
| Feature |
Beyond Tent 10x30 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| Linkable / Corridor-Ready |
✔ Yes |
✘ Not designed for linking |
| Use Case |
Details |
| 3-Booth Vendor Row |
Three side-by-side 10x10 stations in one covered frame |
| Covered Market Corridor |
Core unit for end-to-end vendor corridor runs |
| Seated Outdoor Dinner |
Banquet layout for up to 30 guests |
| Outdoor Ceremony |
Compact ceremony coverage for up to 50 guests |
| Brand Activation |
Multi-station corporate activation or sponsor tent |
| Community Event |
School fair, church festival, or neighborhood market |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 10x30 West Coast Frame Tent
What is the footprint of the 10x30 West Coast Frame Tent?
The 10x30 covers 300 sq ft with no center pole — enough for 3 full vendor stations or a covered outdoor reception for 30 guests.
How many vendor stations or guests fit under a 10x30?
3 full vendor stations, up to 30 guests banquet-style, 50 in theatre seating, or 43 standing.
What eave height is available for the 10x30?
The 10x30 has a 7 ft eave height with an overall peak height of approximately 9'6".
Can the 10x30 tent be installed on concrete or asphalt?
Yes. Use weight bags on hard surfaces and ground stakes for grass or dirt.
Is the 10x30 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for permitted events at parks, fairgrounds, parking lots, and public venues.
What frame material is used in the 10x30?
2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial use.
How long does it take to set up the 10x30?
With a 2-3 person crew, setup typically takes 30-60 minutes depending on surface conditions.
Does the 10x30 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 10x30 is fully sidewall-compatible using hook-and-loop attachment. Select the Sidewall Kit variant at checkout or contact sales@beyondtent.com for custom panel options.
How does the 10x30 frame tent ship?
Ships via LTL freight on a pallet directly to your facility.
Can I link multiple 10x30 tents together?
Yes. The 10-wide system links end-to-end with any other 10-wide section for covered corridors of any length. Call 866-296-3868 for multi-section guidance.
What warranty does the 10x30 West Coast Frame Tent come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 10 ft. / 3.0m
Length 30 ft. / 9.1m
Area 300 ft² / 27.3m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 9'6" / 2.9m 10'6" / 3.2m
Pitch 2'6" / 0.8m
Complete Weight Aluminum 415 Lbs. / 188 Kg. 423 Lbs. / 192 Kg.
Complete Weight Galvanized 481 Lbs. / 218 Kg. 493 Lbs. / 224 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 9'4" / 2.8m
Persons required for setup 2-4
Occupancy 30 Sit Down Dinner - 50 Cathedral Seating
