The 10x20 West Coast Frame Tent gives rental operators 200 sq ft of commercial-grade pole-free covered space — enough for 2 full vendor stations in a single covered run, a seated dinner for 20, or a compact outdoor reception. At 7' eave with a fully open interior, this is the entry-level dual-booth tent in the Classic Series lineup.
Built on a 2" anodized aluminum West Coast Frame system, the 10x20 assembles in under 40 minutes with a 2-person crew on any surface. Link multiple units end-to-end to build vendor corridors of any length for markets and festivals. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified and engineered for hundreds of commercial rental cycles.
Why it Works for Rental Operators
No center pole: All 200 sq ft is open — run two side-by-side 10x10 booth stations in one covered frame.
Linkable: Connect end-to-end with other 10-wide sections to build market corridors of any length.
2-person setup: Fast assembly on any surface in under 40 minutes.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet.
Technical Resources & Downloads
| Size |
10 ft x 20 ft |
| Square Footage |
200 sq ft |
| Eave Height |
7 ft |
| Overall Peak Height |
Approx 9'6" |
| Pitch |
Approx 2'6" |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube |
| Longest Component |
Approx 9'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop Attachment |

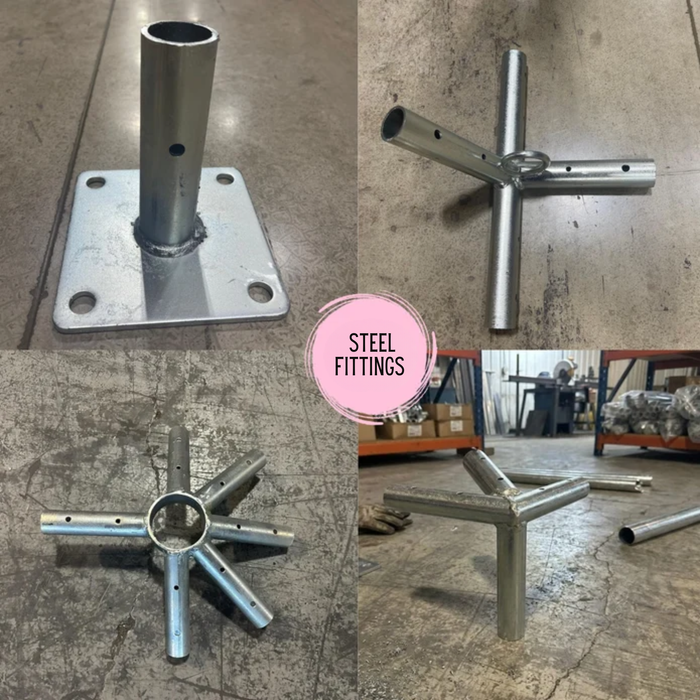

| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |

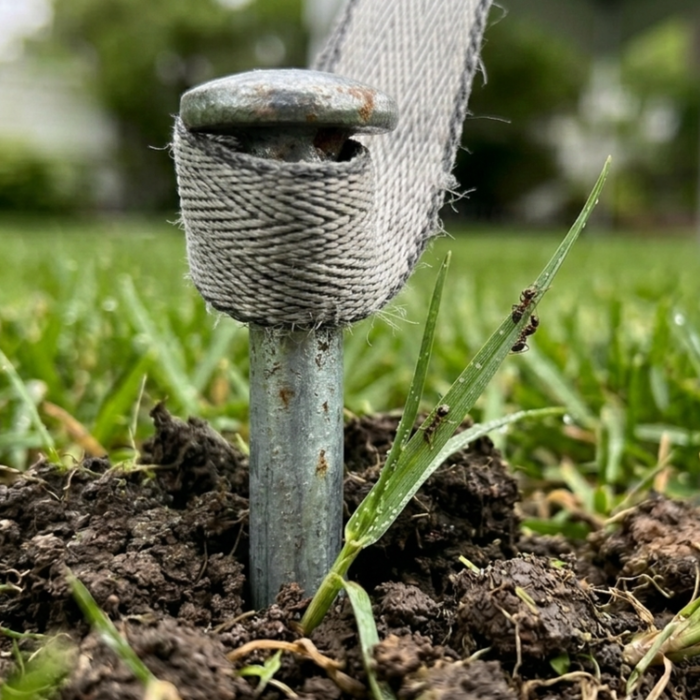

Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Linkable / Expandable |
Yes — Links End-to-End with Other 10-Wide Sections |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
2 People |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
20-40 Minutes |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
2 Stations |
| Banquet Seating (60" rounds) |
20 Guests |
| Theatre / Ceremony Seating |
33 Guests |
| Standing / Cocktail Reception |
29 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$600 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$18,000 / year |
| Feature |
Beyond Tent 10x20 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| Linkable / Corridor-Ready |
✔ Yes |
✘ Not designed for linking |
| Use Case |
Details |
| Dual Vendor Booth Row |
Two side-by-side 10x10 stations in one covered frame |
| Covered Walkway |
Building block for end-to-end market corridor runs |
| Seated Outdoor Dinner |
Intimate banquet layout for up to 20 guests |
| Brand Activation |
Corporate identity station or product sampling setup |
| Community Event |
School fair, church festival, or neighborhood market canopy |
| Equipment Staging |
Covered staging zone for event crew equipment |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 10x20 West Coast Frame Tent
What is the footprint of the 10x20 West Coast Frame Tent?
The 10x20 covers 200 sq ft with no center pole — enough for 2 full vendor stations or a compact outdoor reception.
How many vendor stations or guests fit under a 10x20?
2 full vendor stations, up to 20 guests banquet-style, 33 in theatre seating, or 29 standing.
What eave height is available for the 10x20?
The 10x20 has a 7 ft eave height with an overall peak height of approximately 9'6".
Can the 10x20 tent be installed on concrete or asphalt?
Yes. Use weight bags on hard surfaces and ground stakes for grass or dirt.
Is the 10x20 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for permitted events at parks, fairgrounds, parking lots, and public venues.
What frame material is used in the 10x20?
2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial use.
How long does it take to set up the 10x20?
With a 2-person crew, setup typically takes 20-40 minutes depending on surface conditions.
Does the 10x20 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 10x20 is fully sidewall-compatible using hook-and-loop attachment. Select the Sidewall Kit variant at checkout or contact sales@beyondtent.com for custom panel options.
How does the 10x20 frame tent ship?
Ships via LTL freight on a pallet directly to your facility. The carrier schedules a delivery appointment.
Can I link multiple 10x20 tents together?
Yes. The 10-wide system links end-to-end with any other 10-wide section for covered corridors of any length. Call 866-296-3868 for multi-section guidance.
What warranty does the 10x20 West Coast Frame Tent come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 10 ft. / 3.0m
Length 20 ft. / 6.1m
Area 200 ft² / 18.3m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 9'6" / 2.9m 10'6" / 3.2m
Pitch 2'6" / 0.8m
Complete Weight Aluminum 306 Lbs. / 139 Kg. 312 Lbs. / 142 Kg.
Complete Weight Galvanized 356 Lbs. / 161 Kg. 365 Lbs. / 166 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 9'4" / 2.8m
Persons required for setup 2-4
Occupancy 20 Sit Down Dinner - 33 Cathedral Seating
