The 10x10 West Coast Frame Tent delivers 100 sq ft of commercial-grade pole-free covered space — a complete single vendor booth or compact event station on any surface. The 7' eave height and clear-span interior make it the cleanest single-station tent in the Classic Series lineup.
Built on a 2" anodized aluminum West Coast Frame system, the 10x10 sets up on grass, dirt, concrete, or asphalt in under 30 minutes with a two-person crew. Link multiple units end-to-end to build covered vendor corridors of any length. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified and rated for hundreds of commercial rental cycles.
Why it Works for Rental Operators
No center pole: The full 100 sq ft is open and unobstructed — clean booth setup, no frame in the way.
Linkable: Connect end-to-end with additional 10-wide sections to build covered runs of any length for markets and festivals.
2-person setup: Assemble the roof skeleton on the ground, attach the canopy, lift onto legs — under 30 minutes.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet.
Technical Resources & Downloads
| Size |
10 ft x 10 ft |
| Square Footage |
100 sq ft |
| Eave Height |
7 ft |
| Overall Peak Height |
Approx 9'6" |
| Pitch |
Approx 2'6" |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube |
| Longest Component |
Approx 9'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| NFPA Certified |
Yes — View NFPA 701 Certificate
|
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop Attachment |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Linkable / Expandable |
Yes — Links End-to-End with Other 10-Wide Sections |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
2 People |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
20-30 Minutes |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
1 Station |
| Banquet Seating (60" rounds) |
10 Guests |
| Theatre / Ceremony Seating |
16 Guests |
| Standing / Cocktail Reception |
14 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$350 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$10,500 / year |
| Feature |
Beyond Tent 10x10 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| Linkable / Corridor-Ready |
✔ Yes |
✘ Not designed for linking |
| Use Case |
Details |
| Single Vendor Booth |
One complete 10x10 commercial vendor station |
| Covered Walkway |
Starting unit for end-to-end market corridor runs |
| Brand Activation |
Corporate identity station, product demos, sampling setups |
| Ticket or Check-In Station |
Compact covered entry point for any event |
| Community Event |
School fair, church festival, or neighborhood market canopy |
| Equipment Staging |
Covered registration or equipment zone for event crews |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 10x10 West Coast Frame Tent
What is the footprint of the 10x10 West Coast Frame Tent?
The 10x10 covers 100 sq ft of ground space. With no center pole, the entire interior is open and usable as a complete vendor station or compact event canopy.
How many vendor stations or guests fit under a 10x10?
The 10x10 fits 1 full vendor station, up to 10 guests banquet-style, 16 in theatre seating, or 14 standing. It is the entry-level single-booth tent in the Classic Series.
What eave height is available for the 10x10?
The 10x10 has a 7 ft eave height with an overall peak height of approximately 9'6".
Can the 10x10 tent be installed on concrete or asphalt?

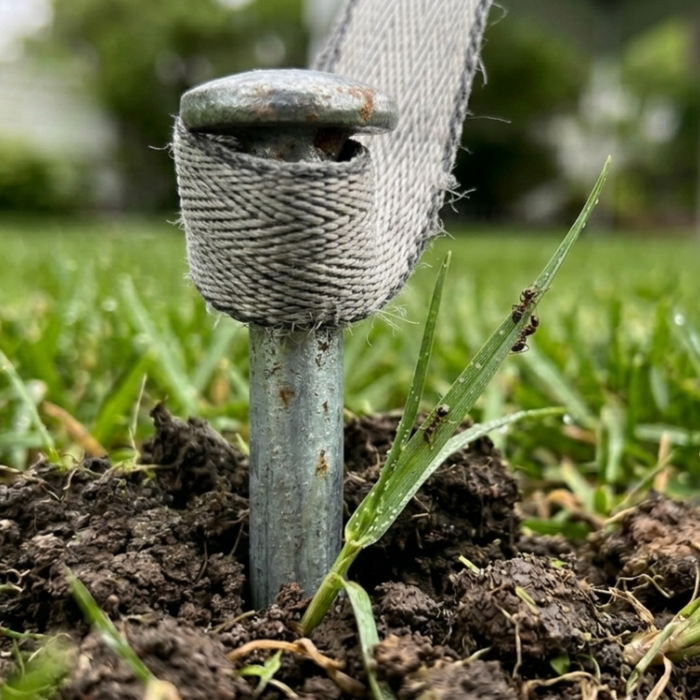

Yes. Use weight bags on hard surfaces like concrete and asphalt, and ground stakes for grass or dirt. The West Coast Frame system installs on any surface.
Is the 10x10 frame tent NFPA 701 certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for permitted events at parks, fairgrounds, parking lots, and public venues.
What frame material is used in the 10x10 frame tent?
The frame is 2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial rental use.
How long does it take to set up the 10x10?
With a 2-person crew, setup typically takes 20-30 minutes. Build the roof skeleton on the ground, attach the canopy top, then lift onto the perimeter legs.
Does the 10x10 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 10x10 is fully sidewall-compatible using hook-and-loop attachment. Select the Sidewall Kit variant at checkout or contact sales@beyondtent.com for custom panel options.
How does the 10x10 frame tent ship?
The 10x10 ships via LTL freight on a pallet directly to your facility. A delivery appointment is scheduled by the carrier.
Can I link multiple 10x10 tents together?
Yes. The 10-wide West Coast Frame system links end-to-end with any other 10-wide section to build covered corridors of any length. Call 866-296-3868 for multi-section configuration guidance.
Can I get custom printing on the 10x10 frame tent?
Yes. Custom printing is available on the canopy top. Contact sales@beyondtent.com with your artwork files for a quote.
What warranty does the 10x10 West Coast Frame Tent come with?
The 10x10 comes with a 1-Year Commercial Warranty covering manufacturing defects. Contact sales@beyondtent.com or 866-296-3868 for support.
Width 10 ft. / 3.0m
Length 10 ft. / 3.0m
Area 100 ft² / 9.0m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 9'6" / 2.9m 10'6" / 3.2m
Pitch 2'6" / 0.8m
Complete Weight Aluminum 193 Lbs. / 88 Kg. 197 Lbs. / 89 Kg.
Complete Weight Galvanized 225 Lbs. / 102 Kg. 231 Lbs. / 105 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes - NFPA 701 Certified
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 9'4" / 2.8m
Persons required for setup 2
Occupancy 10 Sit Down Dinner - 17 Cathedral Seating
