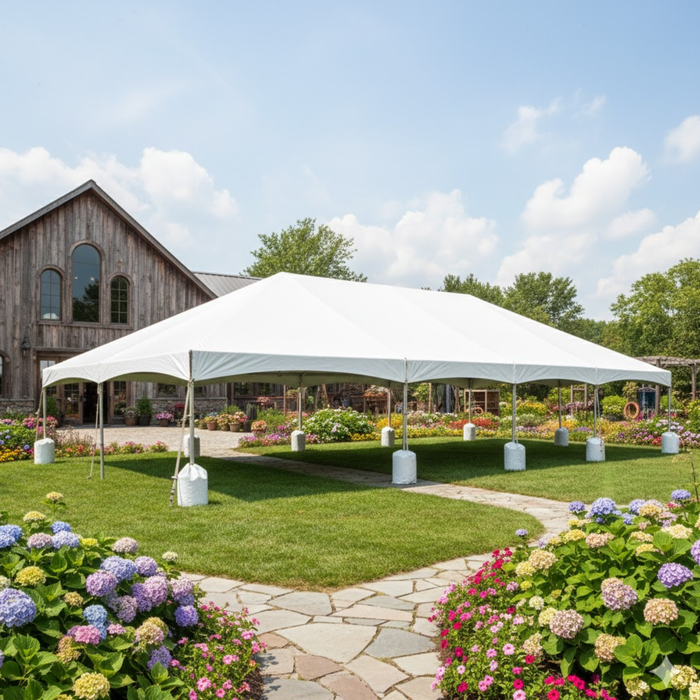

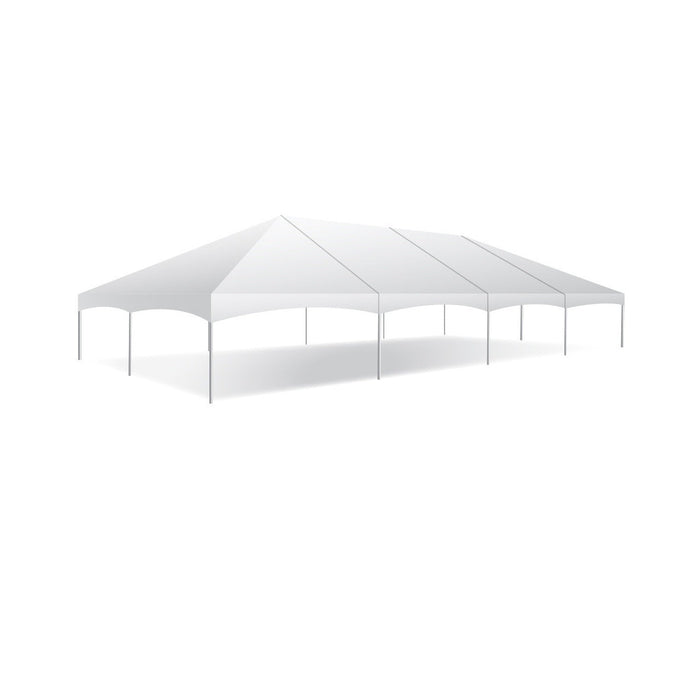

Master Series Frame Tent: Combining Efficiency with Classic Design
The Master Series Frame Tent is a standout choice when you desire a classic look without compromising on efficiency and ease of setup. Here are the key features of this tent style:
West Coast Style Compatibility: The Master Series Frame Tent is built on the West Coast Style frame and fittings system, ensuring compatibility with a wide range of tents and accessories. This interchangeability simplifies the process of customizing your tent setup and finding replacement parts if needed.

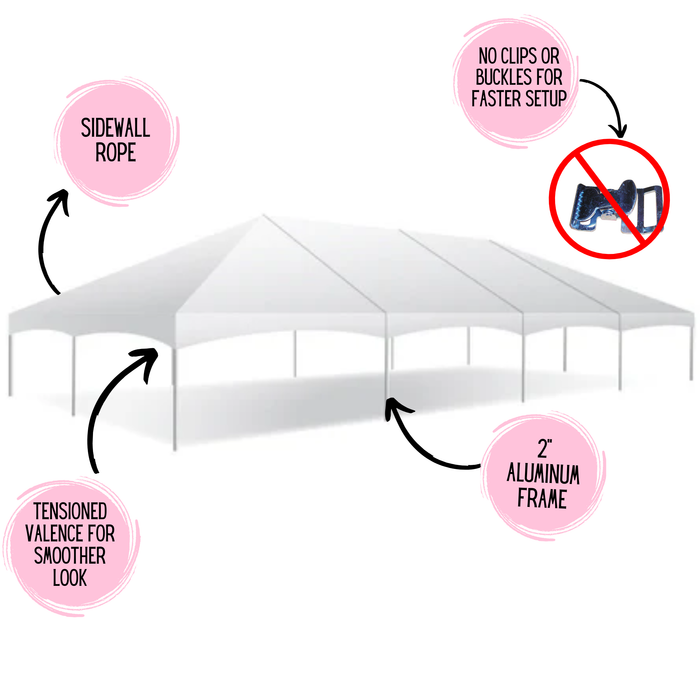

Tensioned Valance for a Sleek Look: What sets the Master Series Frame Tent apart is its design approach. Instead of traditional clips or buckles, it uses a tensioned valance, also known as a catenary curve. This design element not only enhances the tent's appearance by providing a smooth and taut valance but also reduces the need for extensive hardware.
Efficiency and Speed: Thanks to its tensioned valance and simplified design, the Master Series Frame Tent offers faster and more straightforward installations. This can be a significant advantage when you're setting up tents for events, ensuring that the process is efficient and hassle-free.
The Master Series Frame Tent strikes a balance between classic aesthetics and modern convenience. It provides the timeless look of frame tents with the added benefits of compatibility, efficiency, and speedy installation. Whether you're organizing a wedding, festival, or corporate event, this tent style offers a seamless blend of style and practicality.
Width 30 ft. / 9.1m
Length 60 ft. / 18.3m
Area 1800 ft² / 166.5 m²
Eave Height 8' / 2.4m
Overall Height 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight Aluminum 1289 Lbs. / 585 Kg.
Complete Weight Aluminum Hybrid 1553 Lbs. / 704 Kg.
Series / Brand Master
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum
Longest Component 21'10.5" / 6.7m
Persons required for setup 3-6
Occupancy 180 Sit Down Dinner - 300 Cathedral Seating
1. How many guests can fit under a 30x60 Master Series tent?
- The 30' x 60' footprint provides 1,800 square feet of coverage.
Banquet Seating: 144–180 guests (using 8' rectangular tables).
Round Table Seating: 120–144 guests.
Row/Cathedral Seating: Up to 300 guests.
Cocktail/Standing: Approximately 360 guests.
2. What makes the Master Series better for weddings than a standard frame tent?
- The Master Series features an engineered tension design. Unlike standard tents that can look "baggy," the Master Series uses catenary curves and tensioned valances to pull the vinyl tight. This creates a smooth, luxury appearance that is highly sought after by wedding planners and high-end venues.
3. Is the 30x60 tent top one single piece or sectional?

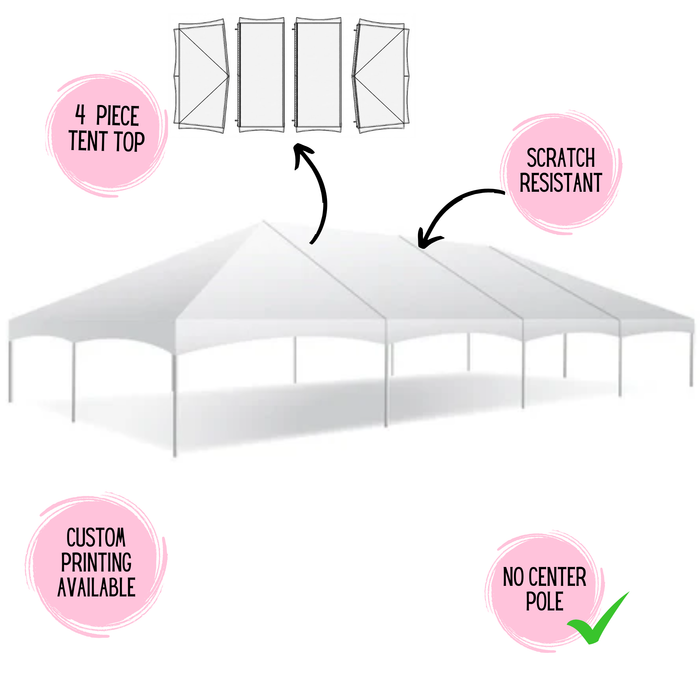

-This specific model features a 4-piece tent top. The advantage of a 4-piece top is that it can be extended to other sizes.
4. Does this 30x60 tent require center poles?
-No. This is a clear-span frame structure. All support comes from the 2" anodized aluminum perimeter and rafters. This allows for 1,800 sq. ft. of unobstructed space, giving you total flexibility for dance floors, stages, and seating layouts.
5. What is "Blockout" vinyl and why do I need it?

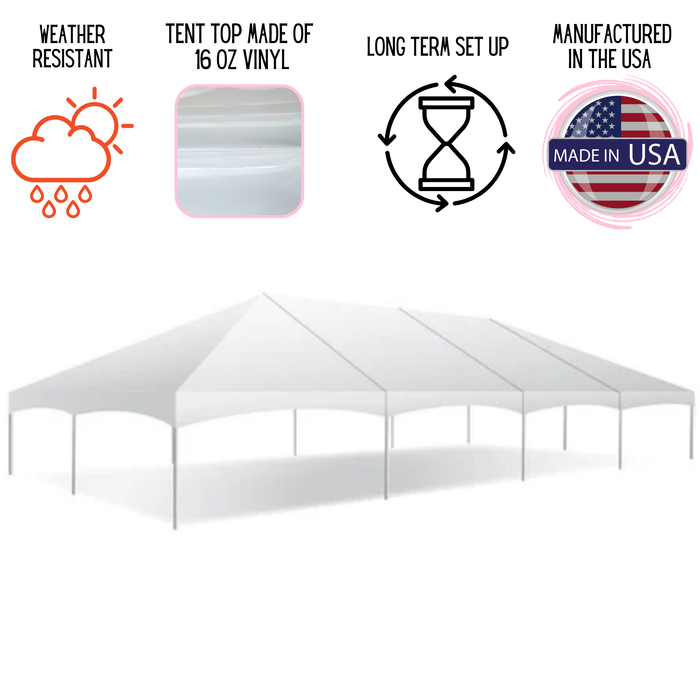

-Our 16 oz. Blockout PVC vinyl is 100% opaque. It prevents sunlight from shining through the fabric, which keeps the interior significantly cooler during summer events. It also ensures that shadows from trees or debris on top of the tent are not visible to guests inside.
6. Is this tent fire-rated for commercial use?

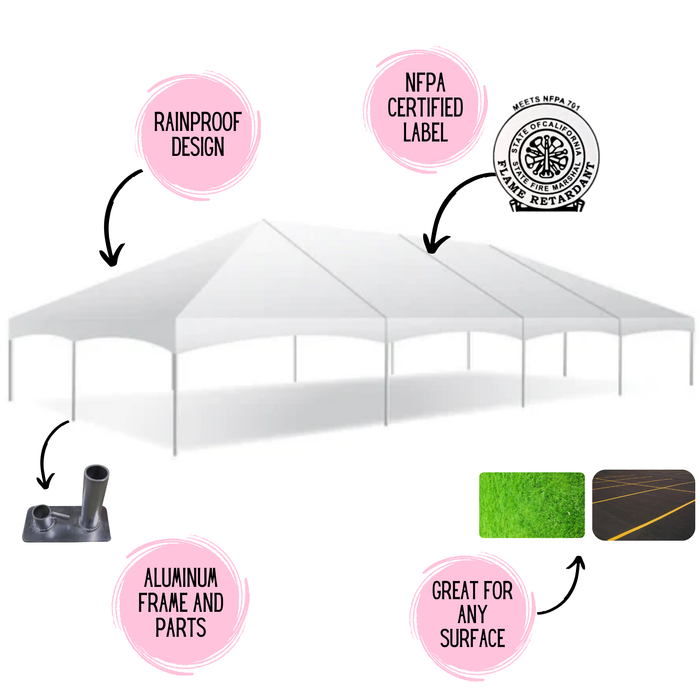

-Yes. All BeyondTent Master Series tops are certified Flame Retardant. They meet or exceed NFPA 701, CSFM (California State Fire Marshal), and CAN/ULC-S109 standards, which are required by fire marshals for commercial permits and public events.
7. What is the frame made of?

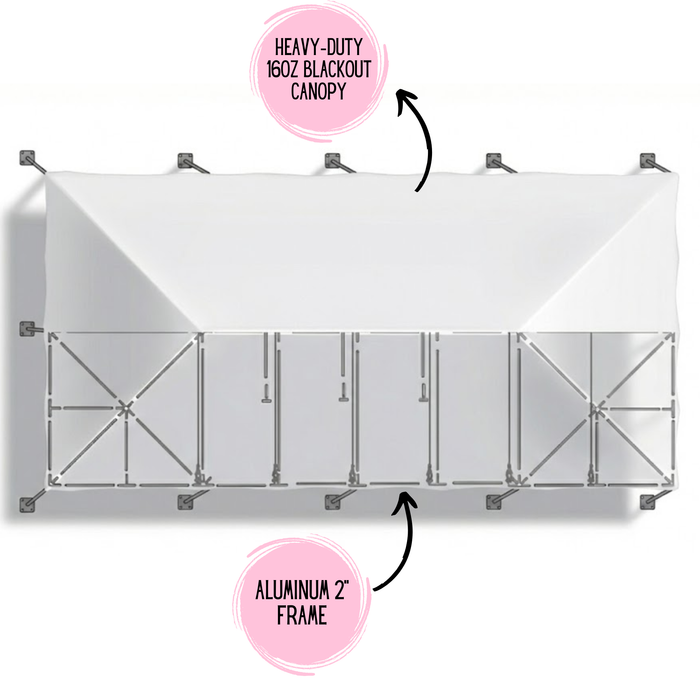

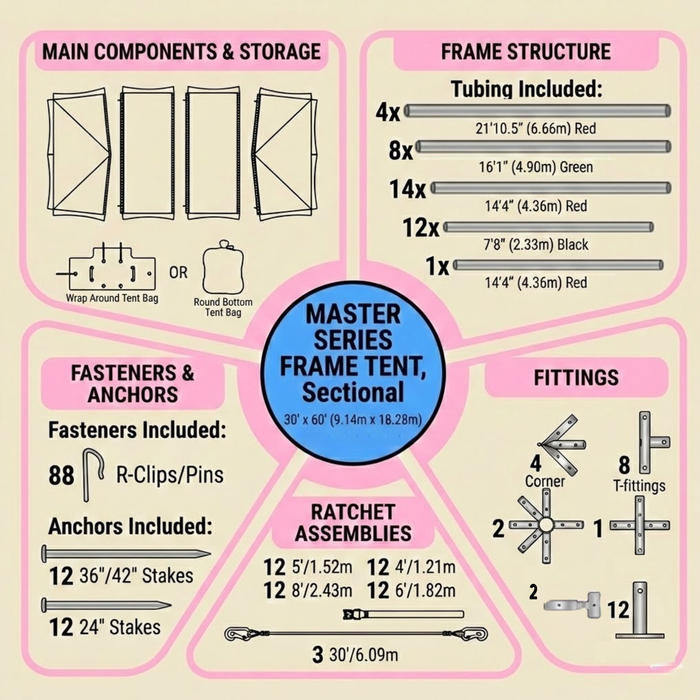

-The frame is constructed from 2-inch anodized aluminum tubing with galvanized steel fittings. Anodized aluminum is rust-proof and won't leave "gray marks" on your white vinyl, ensuring your equipment stays looking new for years of rental use.
8. How do I anchor a 30x60 tent on concrete or a parking lot?

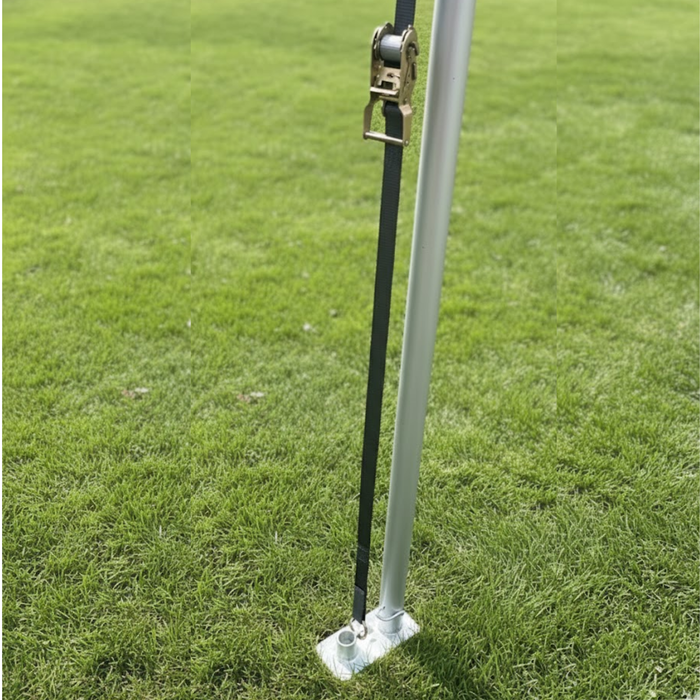

-While it comes with stakes for grass, the Master Series can be installed on hard surfaces using concrete ballasts or heavy-duty water weights. You must ensure the weighting meets local wind-load requirements for a structure of this size.
9. How many people are needed for the installation?
-Because the 30x60 is a large 4-piece top, we recommend a professional crew of 6 to 8 people. We also highly recommend using a "drop cloth" (ground tarp) during setup to protect the white vinyl from dirt and abrasions while pulling it over the frame.
10. Can I add sidewalls to this tent?
-Absolutely. The Master Series is designed with a dedicated track/system for sidewalls. We offer 16 oz. blockout solid walls, window walls (Cathedral style), and mesh walls to fully enclose the 180 linear feet of the tent perimeter.
