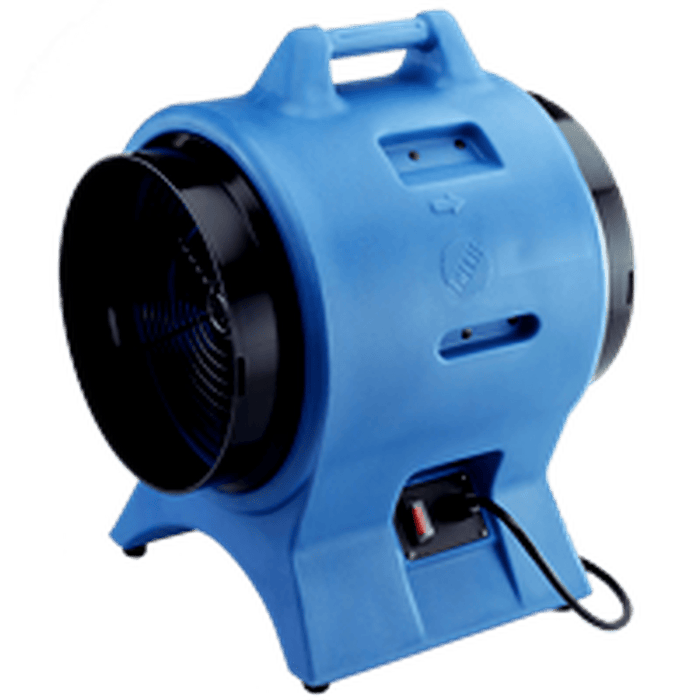

Americ Confined Space Ventilator

SKU 16P-VF
Original price $699.00 - Original price $699.00
Original price
$699.00
$699.00 - $699.00
Current price $699.00

Ideal for use in confined spaces that require a powerhouse air ventilator, this ventilator can handle your most demanding industrial needs. With a forceful 1 hp motor, the VAF3000 can deliver both positive and negative airflow at an incredible maximum capacity of 2,796 CFM in the most difficult work environments.

Features

  • Industry leading airflow in all sizes, rated from 750-10,000 cfm
  • Dual wall polyethylene housing designed to withstand the harshest of conditions, providing years of durability and dependability
  • Premium quality motors rated for over 100,000 hours of heavy duty, continuous use for unmatched return on investment
  • Safety tested to UL, CSA and CE certifications, exceeding industry standards
  • Provides positive and negative airflow (blows and extracts)
  • Lightweight for easy portability
  • Stackable to save storage space
  • Three year warranty
  • Made in the USA

Blade Color
Black
Brand
Schaefer
Cfm (free Air)
2796
Cfm (with 25' Of Duct)
1830
Drive
Direct
Housing Material
Polyethylene
Maximum Duct Length (feet)
125
Phase
1
Speeds
1
Cfm/watt (free Air)
3.6
Cord
Included - Wired
Diameter (inches)
12
Frequency (hz)
60/50
Guard Color
Black
Nameplate Amps
9.0/9.0
Number Of Wings
7
Power (hp)
1
Product Dimensions (l X W X H Inches)
21" x 17" x 14"
Product Net Weight (lbs)
32.5
Performance Test #
498
Switch
On product
Voltage
115
Maximum Rpm
3300
Blade Material
Polypropylene
Cfm Calculation Standard
ANSI/AMCA Standard 230-99
Pallet Quantity
20
Product Color
Blue
Product Shipping Dimensions (in)
18 x 16 x 24
Cfm Range (free Air)
2501 - 5000
Cord Length (feet)
20
Distinguishing Feature
Suitable with Ducting
Fixed Or Portable
Portable
Guard Material
Powder Coated Steel
Oscillating
No
Product Certifications
cULus
Country Of Origin
US
Guard Spacing (inches)
1/2 OSHA
Housing Color
Blue
Maximum Static Pressure (in. H2o)
3

3 Year Limited Warranty
