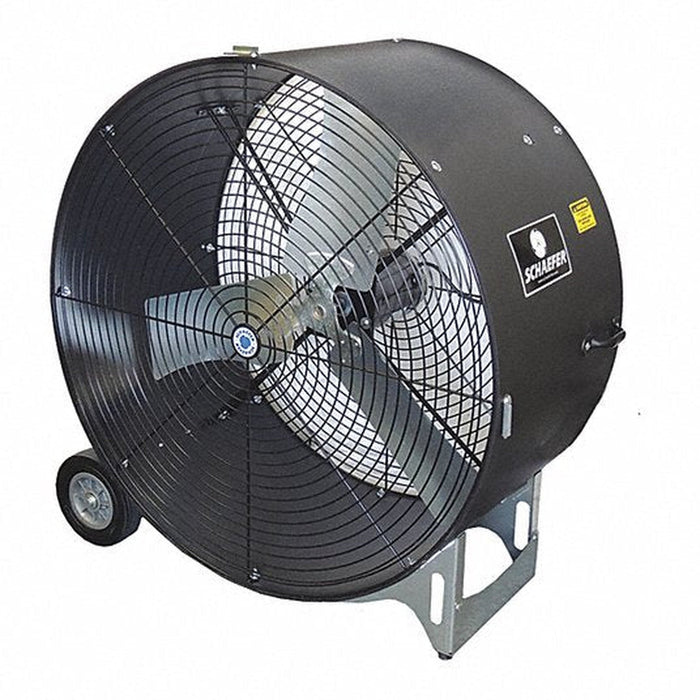

Tired of continually replacing your mobile drum fans? Schaefer mobile drum fans have “Schaefer-Tough” polyethylene housing and durable reinforced galvanized steel wheel carriage for impact and rust resistance. These fans are built to last, the best looking fans in the industry and move massive amounts of air at high velocities. A single “Schaefer-Tough” mobile fan will not only take the place of several lower performance fans, but out live them as well, lasting for 10+ years.

Features

  • High-density polyethylene housing for superior impact, abrasion and temperature-cracking resistance
  • Galvanized steel base for complete corrosion resistance inside and out
  • Narrow fan profile, and ergonomic pull and base handles for easy portability
  • Large rubber wheels mounted inside the fan profile for convenience and safety
  • Stacking tabs for storage and transportation savings included on OSHA VKM models, optional on others
  • OSHA compliant guard
  • Two year warranty
  • Made in the USA

Blade Color
Gray
Brand
Schaefer
Cfm (free Air)
11020
Drive
Direct
Enclosure
TEAO
Frame Size
48Y
Housing Material
Polyethylene
Phase
1
Speeds
1
Vfd Compatible
No
Cfm/watt (free Air)
25.1
Cord
Included - Wired
Diameter (inches)
36
Frequency (hz)
60
Guard Color
Black
Nameplate Amps
7/3.5
Number Of Wings
3
Bess Lab Performance Test #
13212
Power (hp)
1/2
Product Net Weight (lbs)
85
Switch
On cord
Voltage
115/230
Maximum Rpm
825
Air Velocity (@ 5 Times Diameter)
610
Blade Material
Galvanized Steel
Cfm Calculation Standard
ANSI/AMCA Standard 230-99
Product Color
Black
Product Shipping Dimensions (in)
43 x 41 x 21
Speed Control Compatible?
No
Able To Ship Small Parcel
No
Cfm Range (free Air)
10001 - 15000
Cord Length (feet)
12
Fixed Or Portable
Portable
Guard Material
Powder Coated Steel
Oscillating
No
Product Certifications
CSA
Rpm 50 Hz Motor
700-800

2 Year Limited Warranty
