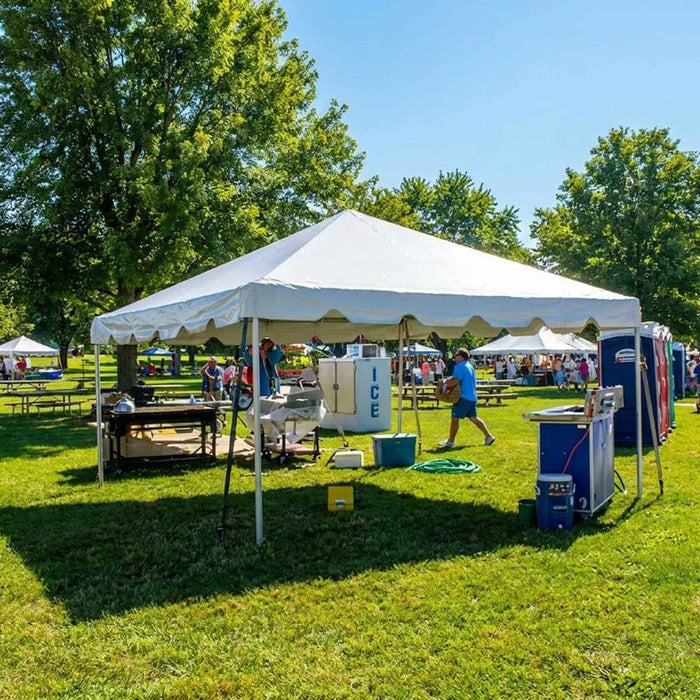

The 15x20 West Coast Frame Tent delivers 300 sq ft of commercial-grade covered space in a footprint that fits almost any venue layout. Whether you're running a dual-vendor farmer's market setup, hosting a small outdoor reception, or covering a service station at a corporate event, this tent brings professional performance without requiring a large crew or a big truck.
The 2" anodized aluminum West Coast Frame system installs on any surface — grass, dirt, asphalt, or concrete — with no center pole interrupting your interior space. The 16 oz / 540 gsm PVC blockout vinyl top keeps guests and merchandise protected from sun, heat, and rain in virtually any weather.
Why it Works for Rental Operators
No center pole: The full 300 sq ft is usable — set up two vendor booths side by side, or run a banquet table layout without obstacles.
Any-surface installation: Stakes on grass and dirt, weight bags on concrete and asphalt. One tent, every venue.
Fast 2–3 person setup: Compact frame components mean a small crew can get this tent up quickly between events.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 fire-retardant certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet — no freight surprises.
Technical Resources & Downloads
| Size |
15 ft x 20 ft |
| Square Footage |
300 sq ft |
| Eave Height |
7 ft |
| Overall Peak Height |
11 ft |
| Pitch |
4 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Complete Weight |
193 lbs |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop (Velcro) Attachment |
| Replaceable Sidewall Rope |
Yes |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
2–3 People |
| Commercial Grade |
Yes |
| Made in the USA |
YES |
| Min/Max Handling Time |
1–2 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
2 Stations |
| Banquet Seating (60" rounds) |
24 Guests |
| Theatre / Ceremony Seating |
35 Guests |
| Standing / Cocktail Reception |
45 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$350 |
| Break-Even Point |
8 Rentals |
| Estimated Annual Revenue (30 events) |
$10,500 / year |
| Feature |
Beyond Tent 15x20 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Dual Vendor Booth Setup |
Two side-by-side vendor stations in a single canopy |
| Small Outdoor Reception |
Intimate dinner or cocktail reception for up to 45 guests |
| Farmers Market Coverage |
Multi-product vendor display with professional look |
| Food & Beverage Service |
Shaded service area for caterers and food vendors |
| Corporate Event Activation |
Brand booth or product demo station at outdoor events |
| Outdoor Bar or Lounge |
Covered bar area for cocktail hour or festival events |
| Ceremony or Memorial Canopy |
Intimate outdoor ceremony coverage for small gatherings |
| Equipment Staging Zone |
Protected storage for event gear and supplies |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 15x20 West Coast Frame Tent
What is the footprint of the 15x20 West Coast Frame Tent?
The 15x20 West Coast Frame Tent covers 300 sq ft of ground space with no center pole reducing your usable interior space.
How many people can fit under a 15x20 frame tent?
24 guests banquet-style, 35 in theatre seating, or 45 standing. For vendor setups, it comfortably runs 2 side-by-side stations.
What is the peak height of the 15x20 frame tent?
7 ft eave height and an overall peak height of 11 ft, with a pitch of 4 ft.
Can the 15x20 tent be set up on concrete or asphalt?
Yes. Use weight bags for hard surfaces, ground stakes for grass or dirt.
Is the 15x20 frame tent NFPA 701 fire-resistant certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified.
What frame material is used in the 15x20 frame tent?
2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial use.
How long does it take to set up the 15x20 frame tent?
With a 2–3 person crew, 1–2 hours depending on surface and crew experience.
Does the 15x20 frame tent come with sidewalls?
Sidewalls are available as an add-on. The 15x20 is fully sidewall-compatible via hook-and-loop attachment.
How does the 15x20 frame tent ship?
Via LTL freight on a pallet directly to your facility.
Is the 15x20 tent expandable?
Yes. The West Coast Frame Tent system is expandable — add sections to extend the length.
Can I get custom printing on a 15x20 frame tent?
Yes. Custom canopy printing is available. Contact us for a quote.
What anchoring options does the 15x20 support?
Ground stakes for grass/dirt, weight bags for concrete/asphalt.
What fabric is used in the 15x20 frame tent?
16 oz / 540 gsm PVC blockout vinyl — water repellent, UV resistant, mold and mildew resistant, NFPA 701 certified.
How many people are needed to set up the 15x20?
2–3 people recommended for safe and efficient setup.
What warranty does the 15x20 West Coast Frame Tent come with?
1-Year Commercial Warranty. Contact sales@beyondtent.com or 866-296-3868.
