20x20 Premium Series Frame Tent – Commercial Grade, 16oz Blockout Vinyl

SKU
Original price $3,402.59 - Original price $4,140.90
Original price
$3,402.59
$3,402.59 - $4,140.90
Current price $3,402.59

Premium Series Frame Tent: Combining Efficiency with Classic Design

The Premium Series Frame Tent is a standout choice when you desire a classic look without compromising on efficiency and ease of setup. Here are the key features of this tent style:

West Coast Style Compatibility: The Premium Series Frame Tent is built on the West Coast Style frame and fittings system, ensuring compatibility with a wide range of tents and accessories. This interchangeability simplifies the process of customizing your tent setup and finding replacement parts if needed.

Tensioned Valance for a Sleek Look: What sets the Premium Series Frame Tent apart is its design approach. Instead of traditional clips or buckles, it uses a tensioned valance, also known as a catenary curve. This design element not only enhances the tent's appearance by providing a smooth and taut valance but also reduces the need for extensive hardware.

Efficiency and Speed: Thanks to its tensioned valance and simplified design, the Premium Series Frame Tent offers faster and more straightforward installations. This can be a significant advantage when you're setting up tents for events, ensuring that the process is efficient and hassle-free.

The Premium Series Frame Tent strikes a balance between classic aesthetics and modern convenience. It provides the timeless look of frame tents with the added benefits of compatibility, efficiency, and speedy installation. Whether you're organizing a wedding, festival, or corporate event, this tent style offers a seamless blend of style and practicality.



Technical Specifications

Size 20'x20'
Square Ft 400
Weight 543 Lbs
Commercial Grade Yes
Expandable No

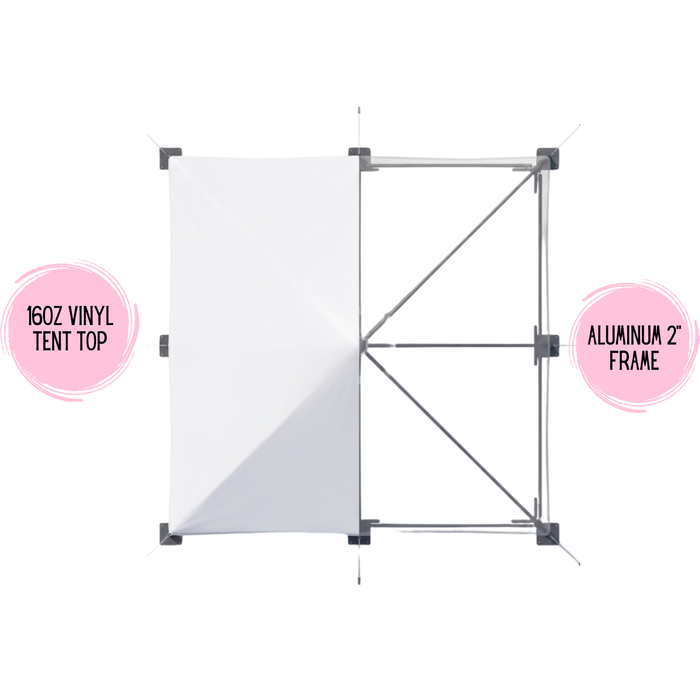

Frame Material 2" Anodized Aluminum
Custom Printing Yes
Shipping Method LTL Freight
Anchoring System Setup on grass (stakes) or hard surfaces (ballast/weights)
Fabric Material PVC Coated Polyester
Fabric Thickness 16 oz
Fabric Translucency Blackout
Water Repellency Waterproof
Ideal Ground Setup Asphalt, Blacktop, Soft Surface, Concrete, Grass
Sidewall Compatible Yes
Flame Resistant Yes
Minimum Temperature Level 40F
UV Resistant Yes
Bonded Seams 1" Heat-sealed
Class Type Frame Tent
Center Pole No
Side Pole Height 8'
Overall Height 13'
Pitch 5'
Mold and Mildew Resistant Yes
Pole Material Aluminum
Longest Component 14'4"
Set Up Crew 3-6 Persons
Made in the USA Yes
Replaceable Sidewall Rope 7/32" polyester sidewall rope
Fail-Safe Hardware R-Pins or Pin & Bail hardware
Assembled Assembly Required
Flame Retardant NFPA 701, California State Fire Marshall
Seating Capacity 40 Sit Down Dinner - 67 Cathedral Seating
Audience Wedding Venues, Party Rental Companies, Government/Municipalities, Schools/Universities, Churches/Religious Groups



Frequently Asked Questions: 20x20 Premium Series Frame Tent

Is this tent fire-rated for public event permits?
Yes. The 20x20 Premium Frame Tent meets or exceeds NFPA 701. Each tent top includes a sewn-in flame-retardant certification label, which is the specific documentation required by fire marshals and municipal inspectors to grant public assembly permits.
Can the 20x20 Premium tent be installed on asphalt or concrete?
Yes. Because this is a freestanding frame structure, it is highly versatile for urban environments. While grass installations use 36-inch double-head stakes, setups on asphalt or concrete require weighted anchors or G-Blocks. This flexibility allows customers to offer solutions for parking lot sales and festival venues where ground penetration is prohibited.
How much wind can the 20x20 Premium Series handle?
The Premium Series is a tension structure. While specific wind ratings depend on proper anchoring (stakes or weights), its design is significantly more stable and wind-resistant than standard "party" tents, as the vinyl is tensioned tightly over the frame to prevent flapping.
Does the 20x20 Premium frame tent require interior center poles?
No. This model is a clear-span structure, meaning the rigid aluminum framework supports the roof without any interior poles. This provides 100% usable floor space, allowing for the unrestricted placement of dance floors, buffet lines, and stages, which is a major operational advantage over traditional pole tents.
What is the guest capacity for a 20x20 Premium Frame Tent?
A 20x20 frame tent provides 400 square feet of unobstructed space, accommodating 40 guests for a seated dinner or up to 67 guests for cathedral-style row seating. This capacity is ideal for professional event planners who require a clear-span interior without the footprint of traditional center poles.
What makes 16oz Blockout Vinyl superior to standard tent fabric?
Our 16oz Blockout PVC vinyl is a commercial-grade material that prevents 100% of UV light from penetrating the top. This technology keeps guests 10-15 degrees cooler during daytime events and prevents sun-glare, making it a critical "Experience" feature for high-end wedding venues and corporate hospitality suites.
How is the 20x20 commercial tent shipped and delivered?
Due to the size and weight of the heavy-duty aluminum pipes and vinyl canopy, this product is shipped via LTL (Less-Than-Truckload) freight. Delivery requires a loading dock or a forklift, and the buyer must be present to inspect and sign for the shipment upon arrival.
How do I clean and maintain the 16oz vinyl top?
To maximize the expected lifespan of your tent, clean the vinyl top regularly using a gentle soap, warm water, and a soft-bristle brush. Never use harsh bleach or abrasive chemicals. Ensure the tent is completely dry before folding and storing it to prevent mold and mildew buildup.
What are the benefits of the anodized aluminum frame?
The frame uses 2-inch anodized aluminum tubing, which features a protective coating that prevents oxidation. For event professionals, this means the metal will not leave black residue on the white vinyl fabric during setup or teardown, ensuring the tent remains in "Like-New" condition for years of heavy-duty rental use.
Are replacement parts available if the tent frame gets damaged?
Yes, we offer a full inventory of replacement parts for the 20x20 Premium Frame Tent. Whether you need a replacement aluminum pipe, steel corner fitting, base plate, or a new canopy top, you can order individual components to keep your investment in perfect working condition.
How many crew members are needed for setup?
A professional crew of 3 to 4 people is recommended for the safe installation of a 20x20 frame. The process involves assembling the roof skeleton on the ground, fitting the fabric, and then "walking" the tent up onto its legs, a method that minimizes fabric strain and maximizes onsite safety.
Can this tent be set up for a long-term installation?
Yes, the Premium Series is designed for durability and can be set up for extended periods of 6 months or more. Because it features a 2-inch anodized aluminum frame and heavy-duty 16oz blockout vinyl, it is robust enough for seasonal venue use or temporary warehousing. However, for long-term installations, we strictly recommend enhanced heavy-duty staking or anchoring and regular monitoring of weather conditions. It is essential to ensure the structure is properly tensioned and inspected periodically to maintain its integrity against the elements. While the frame is extremely strong, the tent should be cleared of heavy snow accumulation and evacuated during extreme weather warnings.

Width 20 ft. / 6.1m
Length 20 ft. / 6.1m
Area 400 ft² / 37.2m²
Eave Height 8' / 2.4m
Overall Height 13'/ 4m
Pitch 5' / 1.5m
Complete Weight Aluminum 543 Lbs. / 246 Kg.
Complete Weight Galvanized 579Lbs. / 263Kg.
Complete Weight Aluminum Hybrid 620 Lbs. / 281 Kg.
Series / Brand Master
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 2-4
Occupancy 40 Sit Down Dinner - 67 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
