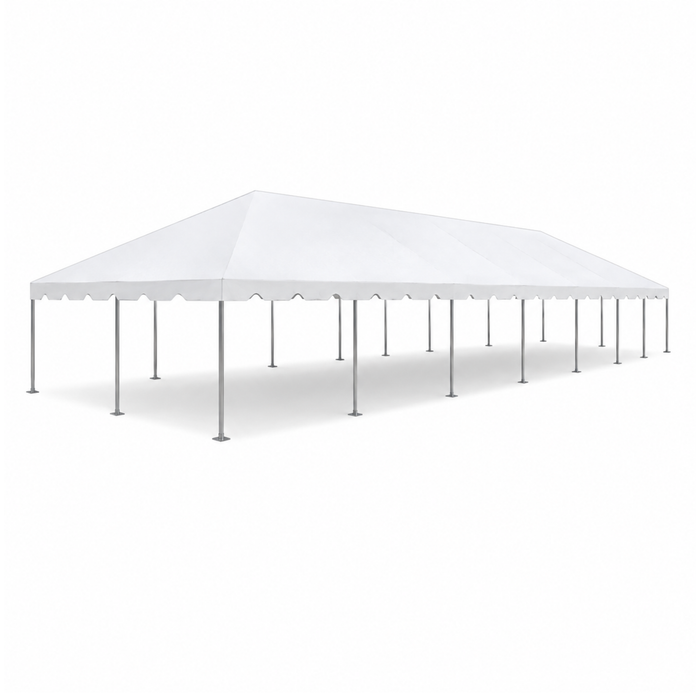

The 20x70 West Coast Frame Tent gives rental operators 1400 sq ft of commercial-grade covered space enough for 12-14 vendor stations, a seated dinner of 140, or a cocktail reception for 200+ guests. With both 7' and 8' eave height options, you can match the tent profile to your venue requirements and event type. The 8' eave option adds headroom and a more spacious feel for upscale events.
The 2" anodized aluminum West Coast Frame system goes up on any surface without a center pole interrupting the interior. The 16 oz / 540 gsm PVC blockout vinyl top handles sun, heat, and rain, keeping your guests and vendors protected through full-day and multi-day events. Single Tube and Double Tube rafter options are available to match your load and permit requirements.
Why it Works for Rental Operators
No center pole: The full 1400 sq ft is open and usable, run vendor rows, banquet tables, or mixed layouts without obstructions.
7' or 8' eave height options: Match your tent profile to the venue and event type. The 8' eave creates a more spacious, airy feel for upscale events.
6-8-person setup: The West Coast Frame system is designed for efficient assembly with a lean commercial crew.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 fire-retardant certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet, no freight surprises.
Technical Resources & Downloads
| Size |
20 ft x 70 ft |
| Square Footage |
1400 sq ft |
| Eave Height |
7 ft or 8 ft |
| Overall Peak Height |
12 ft (7' eave) or 13 ft (8' eave) |
| Pitch |
5 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Frame Options |
Single Tube or Double Tube (select at checkout) |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop (Velcro) Attachment |
| Replaceable Sidewall Rope |
Yes |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
6-8 People |
| Commercial Grade |
Yes |
| Made in the USA |
YES |
| Min/Max Handling Time |
4-6 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
12-14 Stations |
| Banquet Seating (60" rounds) |
140 Guests |
| Theatre / Ceremony Seating |
233 Guests |
| Standing / Cocktail Reception |
200 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$1,700 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$51,000 / year |
| Feature |
Beyond Tent 20x70 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Vendor Market |
12-14 side-by-side vendor stations under one commercial canopy |
| Seated Outdoor Dinner |
Banquet layout for up to 140 guests |
| Outdoor Ceremony |
Ceremony canopy for up to 233 guests theatre-style |
| Festival Food Court |
Multi-vendor food and beverage section at large events |
| Corporate Outdoor Event |
Client entertainment, awards, or outdoor conference coverage |
| Wedding Reception |
Cocktail or seated reception for groups up to 200+ standing |
| Community or School Event |
Large outdoor coverage for fairs, festivals, or graduations |
| Equipment Staging |
Protected zone for staging large event logistics |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 20x70 West Coast Frame Tent
What is the footprint of the 20x70 West Coast Frame Tent?
The 20x70 West Coast Frame Tent covers 1400 sq ft of ground space. With no center pole, the entire interior is open and usable for vendors, seating, or mixed-use layouts.
How many people can fit under a 20x70 frame tent?
The 20x70 accommodates 140 guests banquet-style, 233 in theatre seating, or 200 for a standing cocktail reception. For vendor setups, it supports 12-14 stations.
What eave and peak heights are available for the 20x70?
The 20x70 is available in 7 ft or 8 ft eave height. Overall peak height is 12 ft (7' eave) or 13 ft (8' eave), with a pitch of 5 ft. Single Tube and Double Tube rafter options are available for increased load capacity.
Can the 20x70 tent be set up on concrete or asphalt?
Yes. The West Coast Frame system installs on any surface. Use weight bags for hard surfaces like concrete and asphalt, and ground stakes for grass or dirt.
Is the 20x70 frame tent NFPA 701 fire-resistant certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified, required for most commercial events, venues, and permitted installations.
What frame material is used in the 20x70 frame tent?
The frame is 2" anodized aluminum, corrosion-resistant, lightweight, and built for repeated commercial use across many rental seasons.
How long does it take to set up the 20x70 frame tent?
With a 6-8 person crew, setup typically takes 4-6 hours depending on surface conditions and crew experience.
Does the 20x70 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 20x70 is fully sidewall-compatible using hook-and-loop (Velcro) attachment with a replaceable sidewall rope.
How does the 20x70 frame tent ship?
The 20x70 ships via LTL freight on a pallet directly to your facility. LTL freight is the standard delivery method for commercial-grade tents of this size.
Is the 20x70 frame tent expandable?
Yes. The West Coast Frame Tent system is expandable, you can add sections to extend the length as your rental inventory grows. Call for a quote on custom configurations.
Can I get custom printing on the 20x70 frame tent?
Yes. Custom printing is available on the 20x70 canopy top. Popular for branded events, sponsor logos, and corporate activations. Contact us for a quote.
What anchoring options are available for the 20x70?
Ground stakes for grass and dirt, and weight bags for concrete or asphalt. Always follow local safety regulations and permit requirements.
What fabric is used in the 20x70 frame tent?
16 oz / 540 gsm PVC blockout vinyl, water repellent, UV resistant, mold and mildew resistant, and NFPA 701 certified. Blocks 99% of light for maximum heat and glare control.
How many people are needed to set up the 20x70?
A crew of 6-8 people is recommended for safe and efficient assembly. Larger tents require more hands for frame assembly and canopy installation.
What warranty does the 20x70 West Coast Frame Tent come with?
The 20x70 comes with a 1-Year Commercial Warranty covering manufacturing defects. Contact sales@beyondtent.com or 866-296-3868 for support.
