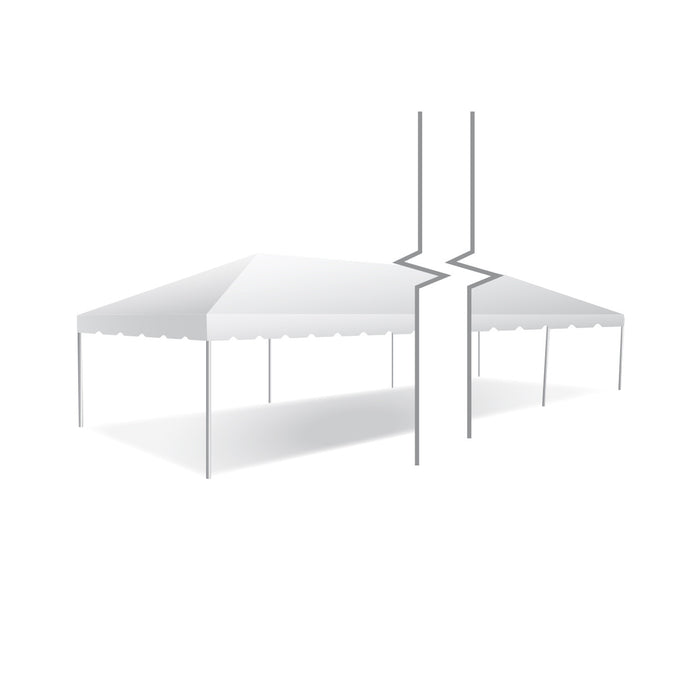

The 15x60 West Coast Frame Tent is the largest in the 15-wide lineup, covering 900 sq ft of commercial-grade, pole-free event space. With capacity for 90 banquet guests, 150 in theatre seating, or more than 125 standing, the 15x60 competes directly with wider tents — while fitting in narrower venue corridors and tighter footprints.
Available in 7' or 8' eave heights, the 15x60 gives you the clearance options you need for different venue types and event styles. The 2" anodized aluminum West Coast Frame system deploys on any surface, and the 16 oz / 540 gsm PVC blockout vinyl handles full-day weather exposure across any season.
Why it Works for Rental Operators
No center pole: The full 900 sq ft is open and usable — run vendor rows, banquet tables, or mixed layouts without obstructions.
7' or 8' eave height options: Match your tent profile to the venue and event type. The 8' eave creates a more spacious, airy feel for upscale events.
3–4 person setup: The West Coast Frame system is designed for efficient assembly with a lean commercial crew.
Commercial-grade vinyl: 16 oz / 540 gsm PVC blockout fabric is NFPA 701 fire-retardant certified, UV resistant, and mold & mildew resistant.
LTL freight delivery: Ships directly to your facility on a pallet — no freight surprises.
Technical Resources & Downloads
| Size |
15 ft x 60 ft |
| Square Footage |
900 sq ft |
| Eave Height |
7 ft or 8 ft |
| Overall Peak Height |
11 ft (7' eave) or 12 ft (8' eave) |
| Pitch |
4 ft |
| Center Pole |
No — Frame Tent Design |
| Frame Style |
West Coast Frame Tent |
| Frame Material |
2" Anodized Aluminum |
| Pole Material |
2" Anodized Aluminum |
| Complete Weight |
626 lbs |
| Longest Component |
14'4" |
| Fabric Material |
16 oz / 540 gsm PVC Blockout Vinyl |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (Light Block) |
| Water Repellency |
Yes |
| Flame Retardant |
Yes — NFPA 701 Certified |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Perimeter Sidewall Rope |
Hook-and-Loop (Velcro) Attachment |
| Replaceable Sidewall Rope |
Yes |
| Fail-Safe Hardware |
Yes |
| Ideal Ground Setup |
Grass, Dirt, Asphalt, Concrete |
| Long Term Installation Capability |
Yes (with proper permitting) |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes (Grass/Dirt) — Weight Bags (Hard Surfaces) |
| Expandable |
Yes (Call for Quote) |
| Custom Printing Available |
Yes (Contact for Quote) |
| Set Up Crew |
3–4 People |
| Commercial Grade |
Yes |
| Made in the USA |
YES |
| Min/Max Handling Time |
2–3 Hours |
| Shipping Method |
LTL Freight |
| Assembled |
No — Setup Required |
| Warranty |
1-Year Commercial Warranty |
| Configuration |
Estimated Capacity |
| Vendor / Service Station |
6 Stations |
| Banquet Seating (60" rounds) |
90 Guests |
| Theatre / Ceremony Seating |
150 Guests |
| Standing / Cocktail Reception |
129 Guests |
💰 Rental Operator ROI Estimate
| Estimated Rental Rate per Event |
$1,100 |
| Break-Even Point |
5 Rentals |
| Estimated Annual Revenue (30 events) |
$33,000 / year |
| Feature |
Beyond Tent 15x60 |
Standard Pop-Up Canopy |
| Frame Material |
✔ 2" Anodized Aluminum |
✘ Thin Steel or Plastic |
| Fabric Weight |
✔ 16 oz / 540 gsm PVC |
✘ 150–300 gsm Polyester |
| Center Pole Free |
✔ Yes |
✘ Often has center obstructions |
| NFPA 701 Fire Rating |
✔ Certified |
✘ Rarely Certified |
| Any-Surface Install |
✔ Grass, Dirt, Concrete, Asphalt |
✘ Limited to soft ground |
| Sidewall Compatible |
✔ Yes |
✘ Usually not |
| Commercial Warranty |
✔ 1-Year Commercial |
✘ Limited or None |
| LTL Freight Delivery |
✔ Palletized |
✘ Standard parcel only |
| Use Case |
Details |
| Six-Vendor Market Row |
Six full vendor stations under one continuous canopy |
| Large Seated Dinner |
Banquet layout for up to 90 guests |
| Grand Outdoor Ceremony |
Theatre-style seating for up to 150 guests |
| Festival Main Stage Canopy |
Full-coverage structure for festival vendor or food zones |
| Corporate Gala |
High-capacity formal outdoor dining or award ceremonies |
| Large Wedding Reception |
Standing cocktail or seated dinner for 100+ guests |
| Multi-Day Event Coverage |
Long-duration commercial structure for festivals or fairs |
| Full Logistics Base |
Large protected crew and equipment staging headquarters |
Browse the Full West Coast Frame Tent Lineup
Frequently Asked Questions — 15x60 West Coast Frame Tent
What is the footprint of the 15x60 West Coast Frame Tent?
The 15x60 West Coast Frame Tent covers 900 sq ft of ground space. With no center pole, the entire interior is open and usable for vendors, seating, or mixed-use layouts.
How many people can fit under a 15x60 frame tent?
The 15x60 accommodates 90 guests banquet-style, 150 in theatre seating, or 129 for a standing cocktail reception. For vendor setups, it supports 6 stations.
What eave and peak heights are available for the 15x60?
The 15x60 is available in 7 ft or 8 ft. Overall peak height is 11 ft (7' eave) or 12 ft (8' eave), with a pitch of 4 ft.
Can the 15x60 tent be set up on concrete or asphalt?
Yes. The West Coast Frame system installs on any surface. Use weight bags for hard surfaces like concrete and asphalt, and ground stakes for grass or dirt.
Is the 15x60 frame tent NFPA 701 fire-resistant certified?
Yes. The 16 oz / 540 gsm PVC blockout vinyl is NFPA 701 certified — required for most commercial events, venues, and permitted installations.
What frame material is used in the 15x60 frame tent?
The frame is 2" anodized aluminum — corrosion-resistant, lightweight, and built for repeated commercial use across many rental seasons.
How long does it take to set up the 15x60 frame tent?
With a 3–4 person crew, setup typically takes 2–3 Hours depending on surface conditions and crew experience.
Does the 15x60 frame tent include sidewalls?
Sidewalls are not included with the base tent but are available as an add-on. The 15x60 is fully sidewall-compatible using hook-and-loop (Velcro) attachment with a replaceable sidewall rope.
How does the 15x60 frame tent ship?
The 15x60 ships via LTL freight on a pallet directly to your facility. Given the weight of 626 lbs, LTL freight is the standard delivery method.
Is the 15x60 frame tent expandable?
Yes. The West Coast Frame Tent system is expandable — you can add sections to extend the length as your rental inventory grows.
Can I get custom printing on the 15x60 frame tent?
Yes. Custom printing is available on the 15x60 canopy top. Popular for branded events, sponsor logos, and corporate activations. Contact us for a quote.
What anchoring options are available for the 15x60?
Ground stakes for grass and dirt, and weight bags for concrete or asphalt. Always follow local safety regulations and permit requirements.
What fabric is used in the 15x60 frame tent?
16 oz / 540 gsm PVC blockout vinyl — water repellent, UV resistant, mold and mildew resistant, and NFPA 701 certified. Blocks 99% of light for maximum heat and glare control.
How many people are needed to set up the 15x60?
A crew of 3–4 people is recommended for safe and efficient assembly. At minimum two people are needed for frame assembly and canopy installation.
What warranty does the 15x60 West Coast Frame Tent come with?
The 15x60 comes with a 1-Year Commercial Warranty covering manufacturing defects. Contact sales@beyondtent.com or 866-296-3868 for support.
