How to Properly Stake a Commercial Event Tent on Grass or Gravel

How to Properly Stake a Commercial Event Tent on Grass or Gravel

When installing a commercial event tent, few things are more important than making sure it is properly staked to the ground. Whether you're hosting a wedding on a lawn or setting up a vendor booth on a gravel lot, securing the tent correctly ensures safety for guests and longevity for your equipment. Improper staking is one of the leading causes of tent accidents—and fortunately, it's also one of the easiest problems to avoid when you understand the right techniques and equipment.

Below, we’ll walk through how to properly stake your commercial tent on both grass and gravel, including a professional anchoring method called gang staking with stake plates that’s especially effective for large tents or high-wind areas.

Why Proper Staking Matters

Commercial tents are engineered to rely on tension. The frame or pole structure holds the canopy in place, while stakes and ratchet straps anchor the system against uplift, lateral loads, and wind shear. Without sufficient anchoring, even a mild gust of wind can turn a loose tent into a dangerous situation.

Tools and Materials You’ll Need

Before starting the installation, make sure you have the following:

• Heavy-duty steel stakes (24” to 42”, depending on soil conditions)

• Sledgehammer or stake driver

• Ratchet straps

• Stake plates (for gang staking)

• Tape measure and chalk line

• Optional: ground drill (for gravel or compacted soil)

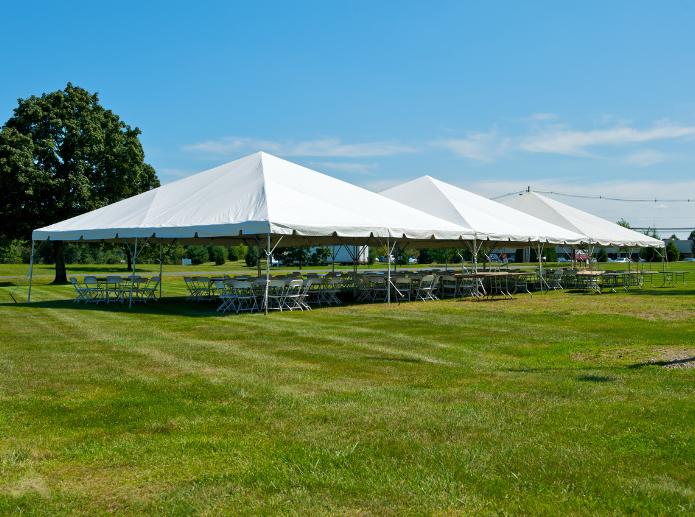

How to Stake a Tent on Grass

Grass is the ideal surface for staking. The soil offers good holding strength while allowing deep penetration for stakes.

1. Mark Out Your Tent Footprint
Use a tape measure and chalk to mark where each leg or anchor point of your commercial tent will go.

2. Drive Stakes Vertically
Using a hammer or stake driver, insert your stakes vertically into the ground at each anchor point. A general rule is that at least 75% of the stake should be underground. For example, a 36-inch stake should go in at least 27 inches deep.

3. Attach Ratchet Straps
Secure each leg or rope to its stake using heavy-duty ratchet straps, and apply even tension to ensure stability.

How to Stake a Tent on Gravel

Gravel can be trickier, as it lacks the dense root system and cohesion of grass. Follow these added precautions:

1. Pre-Drill If Necessary
In compacted gravel, consider pre-drilling pilot holes with a rotary hammer or ground auger to prevent bending the stake.

2. Use Longer or Thicker Stakes
Choose stakes that are 36–42 inches long for gravel applications, and drive them at a slight angle (15–30° away from the tent) to increase resistance.

3. Double Up When Needed
If you're unsure about the holding power of the ground, use two stakes per anchor point with a cross-strap or upgrade to gang staking for maximum holding power.

Advanced Technique: Gang Staking with Stake Plates

Gang staking is a method that uses multiple stakes and a stake plate to significantly increase holding strength in high-load zones.

When to Use It:

• For large commercial tents

• In high-wind regions

• On uncertain or loose ground

• When required by local codes or engineers

How It Works:

1. Place the Stake Plate: A stake plate is a steel plate with multiple holes designed to hold 2–4 stakes in one location. Place it at the base of the leg or anchor line.

2. Drive Multiple Stakes: Insert 2–4 stakes through the plate at a 15°–30° angle away from the tent. This multiplies the anchoring strength significantly.

3. Attach the Ratchet Strap: Connect your ratchet strap or guy line directly to the plate or through the loop designed for tying off. Tighten evenly.

Gang staking is widely used for frame tents larger than 40 feet, or for installations that will be left up for several days or weeks.

Additional Best Practices

• Call Before You Dig: Always check with local utility services before driving stakes.

• Use Stake Caps or Covers: These help prevent trip hazards or damage to surrounding areas.

• Inspect Frequently: For multi-day events, reinspect stakes and ratchets daily.

• Follow Manufacturer Guidelines: Each tent will have specific recommendations for anchoring based on size and design.

Staking a commercial event tent might seem simple, but doing it right requires the correct technique, the right stakes, and sometimes advanced anchoring like gang staking with stake plates. Whether you're setting up on soft grass or rough gravel, taking the time to properly secure your tent ensures safety, protects your investment, and creates peace of mind for you and your clients.
