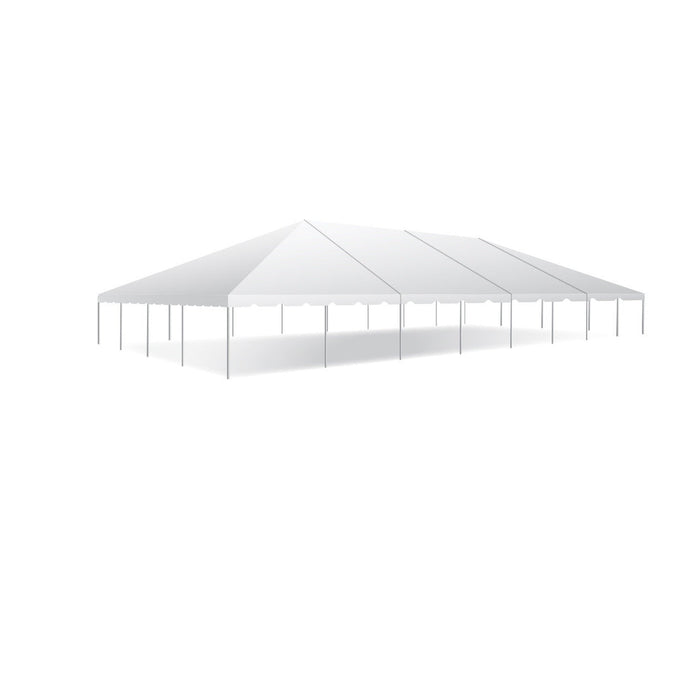

When you need more than coverage — when you need presence — the 40'x80' Classic Series West Coast Frame Tent delivers it. At 40 feet wide, 80 feet long, and a peak height of 17 to 18 feet, this tent creates an interior volume that no 30-wide can match. The steep 10-foot pitch lifts the roofline dramatically above guests' heads, creating an open, grand atmosphere that's visibly different from anything in the Classic Series below it. At 3,200 square feet, it seats 320 for dinner and 533 for cathedral seating — all unobstructed, no center poles, floor to roof.
Beyond Tent specializes in commercial-grade event tents for rental operators and event professionals. Our focus on heavy-duty commercial inventory means expert guidance, direct support, and pricing that reflects what the industry demands.
Why the 40-Wide Format Is Different
A fundamentally taller tent. The 40x80 peaks at 17 feet standard — 2.5 feet taller than a 30-wide tent at the same eave height. That extra height isn't just structural; it creates a genuinely different interior atmosphere. Guests feel the space. Lighting rigs have room to breathe. Chandeliers hang correctly. High-end events at this tent look and feel different from those at a 30-wide.
40 feet of clear span — a wider room than any 30-wide. While 30-wide tents give you a floor plan that's roughly as wide as a large living room, the 40-wide opens up to something closer to a proper ballroom footprint. Layout designers have 10 more feet of lateral space to work with, which opens up completely different table configurations, stage placements, and dance floor arrangements.
Expandable for even larger events. Connect additional 40-wide sections end-to-end to scale to 40x120, 40x160, or beyond — using the same frame system as your base tent.
Technical Specifications
| Size |
40 ft x 80 ft |
| Square Footage |
3,200 sq ft |
| Eave Height |
7 ft standard · 8 ft optional |
| Overall Peak Height |
17 ft standard · 18 ft with 8' legs |
| Pitch |
10 ft |
| Center Pole |
No — fully open interior |
| Frame Style |
West Coast (industry standard) |
| Frame Material |
2" Aluminum Pipes and Aluminum Fittings |
| Pole Material |
Anodized Aluminum |
| Complete Weight |
2,095 lbs |
| Longest Component |
21'10.5" |
| Fabric Material |
PVC Coated Polyester |
| Fabric Thickness |
16 oz / 540 gsm |
| Fabric Translucency |
Blockout (95%+ light block) |
| Water Repellency |
Waterproof |
| Flame Retardant |
NFPA 701, California State Fire Marshal |
| UV Resistant |
Yes |
| Mold & Mildew Resistant |
Yes |
| Sidewall Compatible |
Yes |
| Sidewall Connection |
Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope |
7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware |
R-Pins or Pin & Bail |
| Ideal Ground Setup |
Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability |
6 months or more |
| Minimum Temperature Level |
40°F |
| Anchoring System |
Stakes on grass / Ballast weights on hard surfaces |
| Expandable |
Yes — add sections to extend length |
| Custom Printing Available |
Yes |
| Set Up Crew |
4–8 Persons |
| Commercial Grade |
Yes |
| Made in the USA |
Yes |
| Min/Max Handling Time |
Ships in 1-3 business days |
| Shipping Method |
LTL Freight |
| Assembled |
Assembly Required |
| Warranty |
1 Year |
Capacity Guide — How Many Guests Fit?
| Sit-Down Dinner (60" rounds) |
~320 guests |
| Banquet / Buffet Style |
~400 guests |
| Cathedral / Ceremony Seating |
~533 guests |
| Cocktail / Standing Reception |
Up to 480 guests |
| Dance Floor + Dinner Combo |
~250–280 guests (with full stage & dance floor) |
Tip: The 40-wide footprint opens up layout configurations that aren't possible in a 30-wide — wider table clusters, broader dance floors, and true head-table staging with full depth behind it. Contact us for a layout consultation at sales@beyondtent.com.
Common Use Cases for Rental Operators
| Large Weddings & Black-Tie Galas |
The 40x80 is the tent of choice when clients want a grand indoor-like experience outdoors. The 17-foot peak creates genuine visual drama — chandeliers, market lighting, and uplighting all work differently in this volume than in a lower 30-wide tent. |
| Corporate Conferences & Product Launches |
When a company needs an outdoor event space for 300–400 attendees that doesn't look like an outdoor event space, the 40x80 delivers the expansive footprint and height that makes branded events look intentional rather than improvised. |
| County & State Fairs |
Fair operators use 40-wide tents for their marquee covered exhibits — the extra width accommodates wider display layouts, carnival-style attractions, and large-format installations that don't fit in a 30-wide footprint. |
| Large Outdoor Concerts & Festivals |
The 40x80 covers a substantial audience area or serves as a premium VIP pavilion at multi-stage events. The height accommodates PA rigging, lighting trusses, and stage backdrops without the clearance constraints of narrower tents. |
| Government & Emergency Operations |
Municipalities and emergency management agencies deploy 40-wide tents for large-scale temporary facilities — medical staging, community distribution events, and emergency operations that require maximum covered square footage in a single structure. |
| High-End Event Venue Installations |
Outdoor venues and private estates use the 40x80 as a semi-permanent event structure that transforms outdoor spaces into all-weather event venues. Long-term installation capability makes it a practical alternative to permanent construction for seasonal operations. |
Frequently Asked Questions: 40'x80' Classic West Coast Frame Tent
1) Is the 40'x80' Classic West Coast Frame Tent fire-rated for public event permits?
Yes, it is fully fire-rated. The 40'x80' Classic Series West Coast Frame Tent meets or exceeds NFPA 701 standards. Every tent canopy features a permanently attached flame-retardant label, providing exactly the documentation fire marshals require for public assembly permits — essential for events with 300+ attendees.
2) Can the 40'x80' be set up on asphalt or concrete?
Yes. This is a freestanding aluminum structure — on hard surfaces, you use heavy-duty concrete blocks or water weights instead of ground stakes. The 40-wide footprint requires more ballast weight than narrower tents; plan your anchoring accordingly for the full perimeter.
3) How much wind can the 40'x80' withstand?
It handles moderate winds well. While it does not carry a formal engineered stamp, the commercial-grade aluminum framework offers significantly higher stability than pop-up canopies. At this width and height, robust and evenly distributed anchoring across all perimeter legs is critical.
4) Is the 40'x80' snow resistant?
No. This non-engineered frame structure is not designed to support accumulated snow weight. For winter or extended installations, actively heat the interior to melt buildup or take the tent down before heavy snowfall.
5) How long does it take to process my order?
It takes 1 to 3 business days. We recommend calling us at 866-296-3868 before placing your order to confirm freight routing and site delivery requirements for a tent of this size.
6) How long will it take for my order to arrive?
It takes 7 to 10 business days depending on your location. At this weight and size, freight routing requires coordination. A representative will contact you to confirm delivery scheduling and on-site unloading equipment.
7) Does the 40'x80' require interior center poles?
No. The West Coast frame is entirely freestanding — all 3,200 square feet of interior space is 100% unobstructed. The 40-foot clear span and 17-foot peak create an open interior volume that no center-pole tent can match.
8) How does the 40-wide tent differ from a 30-wide tent?
Width, height, and interior volume. The 40-wide is 10 feet broader than the 30-wide and peaks 2.5 feet taller at the same eave height (17 feet vs 14'6"). That height difference is dramatic in person — it creates a ballroom-like interior atmosphere rather than the lower ceiling of a 30-wide. The 40-wide also enables wider table clusters and stage layouts that simply don't fit in a 30-foot span.
9) Is the 40'x80' expandable?
Yes. The 40x80 Classic Series is engineered to expand by adding additional 40-wide sections end-to-end. This allows you to configure 40x100, 40x120, 40x160, or longer setups using the same frame system — scaling for larger events without replacing your investment.
10) How is the 40'x80' shipped and delivered?
It ships via LTL freight on multiple pallets. Delivery requires a forklift or loading dock, and an authorized representative must be present to inspect and sign. Document any shipping damage with photos before signing.
11) How do I clean and maintain the 16oz vinyl top?
Wash with warm water and mild soap — never bleach or abrasive chemicals. Always ensure the canopy is completely dry before folding for storage to prevent mold and mildew. Inspect seams and connections regularly during long-term deployments.
12) What are the benefits of the anodized aluminum frame?
Anodized aluminum completely prevents rust and oxidation. The protective coating ensures no dark staining on your white vinyl during setup and teardown — and the frame holds up structurally across years of commercial use and multi-month outdoor deployments.
13) Are replacement parts available?
Yes. The West Coast system uses universally available components. Contact us at sales@beyondtent.com with your specific part need and we'll get you sorted quickly.
14) How many crew members are needed for setup?
You will need 4 to 8 people. Build the roof skeleton on the ground in sections, lace the vinyl top over the framework, then lift the structure to insert the perimeter legs. Experienced crews typically complete a 40x80 in a full day.
