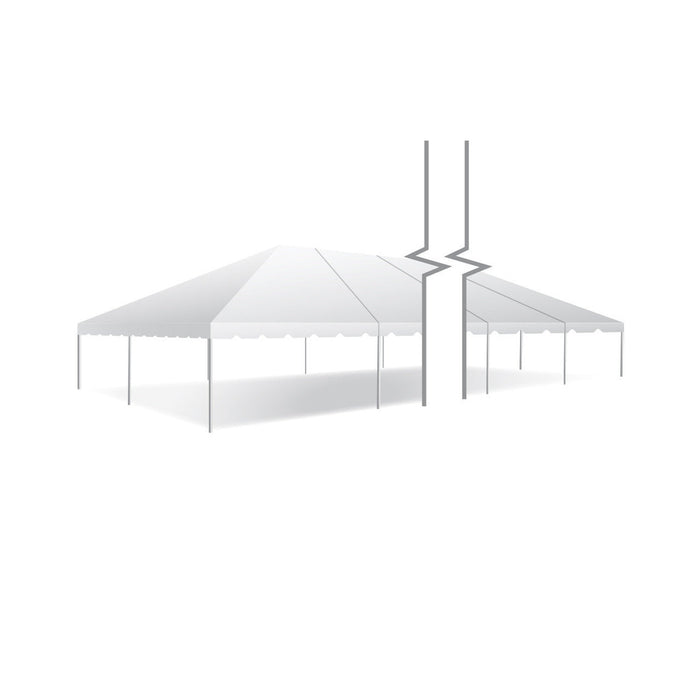

30x90 Classic Series Frame Tent

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Width 30 ft. / 9.1m
Length 90 ft. / 27.4m
Area 2700 ft² / 249.3 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 14'6" / 4.4m 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight Aluminum 1593 Lbs. / 723 Kg. 1609 Lbs. / 730 Kg.
Complete Weight Aluminum Hybrid 1974 Lbs. / 895 Kg. 2008 Lbs. / 911 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 21'10.5" / 6.7m
Persons required for setup 4-8
Occupancy 270 Sit Down Dinner - 450 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
