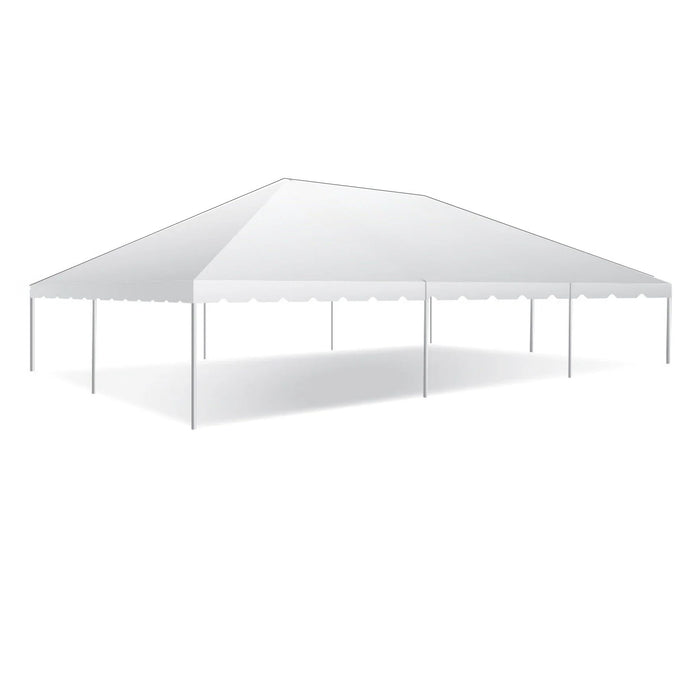

30x45 Classic Series Frame Tent

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Width 30 ft. / 9.1m
Length 45 ft. / 13.7m
Area 1350 ft² / 124.7 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 14'6" / 4.4m 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight Aluminum 878 Lbs. / 398 Kg. 888 Lbs. / 403 Kg.
Complete Weight Aluminum Hybrid 1153 Lbs. / 523 Kg. 1173 Lbs. / 532 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 21'10.5" / 6.7m
Persons required for setup 3-6
Occupancy 135 Sit Down Dinner - 225 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
