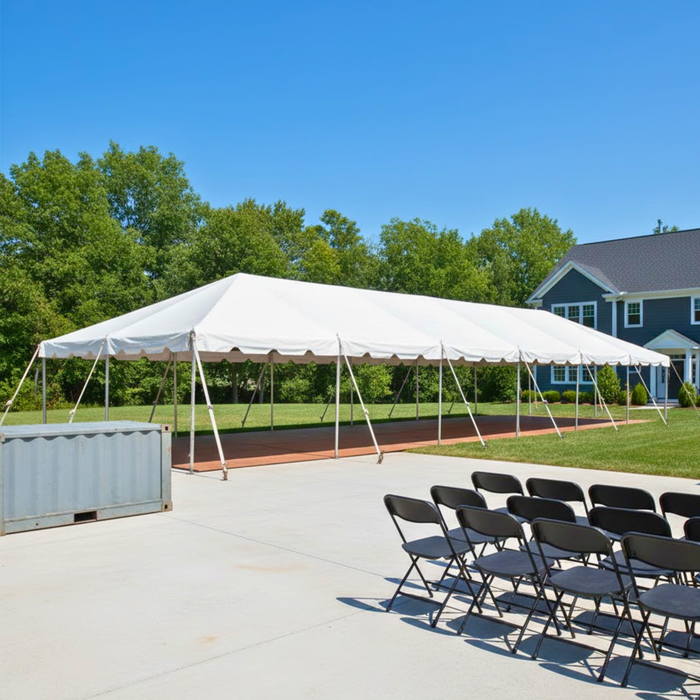

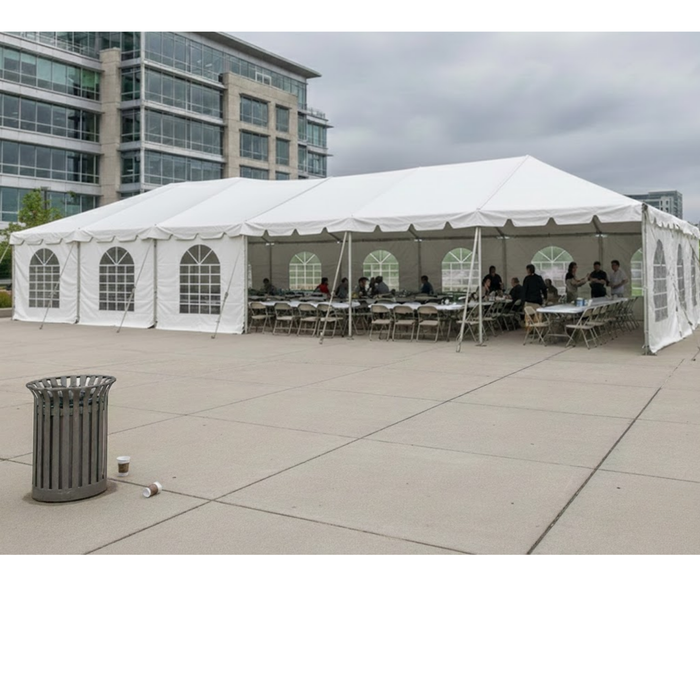

20x60 Classic Series Frame Tent

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Width 20 ft. / 6.1m
Length 60 ft. / 18.3m
Area 1200 ft² / 111.6 m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 12' / 3.7m 13' / 4.06m
Pitch 5' / 1.5m
Complete Weight Aluminum 1005 Lbs. / 456 Kg. 1053 Lbs. / 478 Kg.
Complete Weight Galvanized 1207 Lbs. / 547 Kg. 1231 Lbs. / 558 Kg.
Complete Weight Aluminum Hybrid 1387 Lbs. / 629 Kg. 1419 Lbs. / 644 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 3-6
Occupancy 120 Sit Down Dinner - 200 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty
