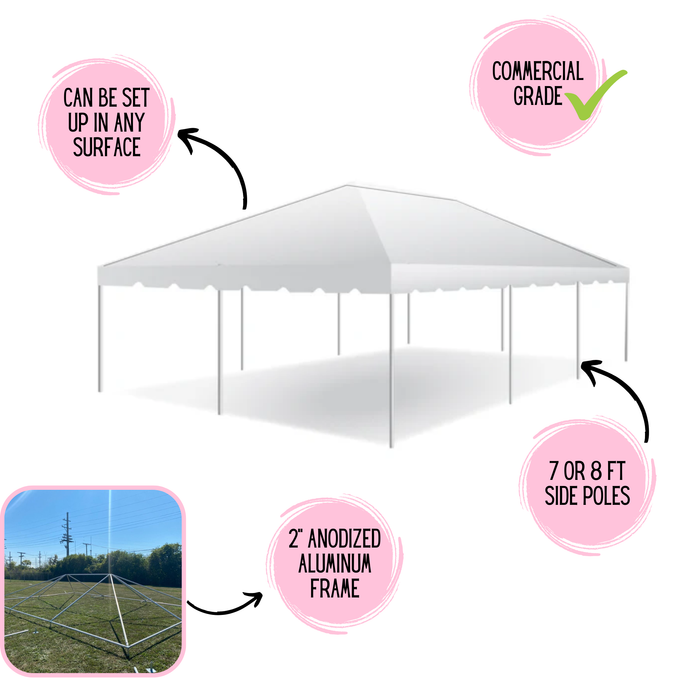

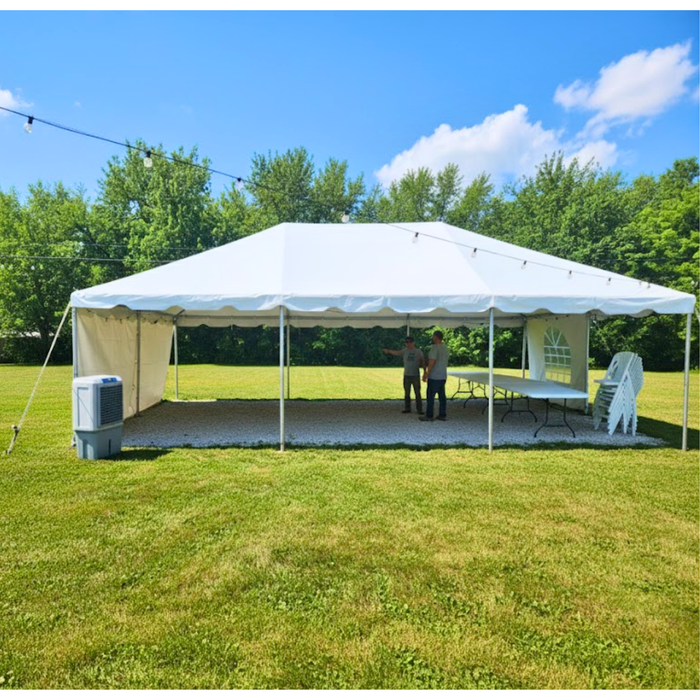

20x30 Classic Series Frame Tent

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Width 20 ft. / 6.1m
Length 30 ft. / 9.1m
Area 600 ft² / 55.5m²
Eave Height 7' / 2.1m 8' / 2.4m
Overall Height 12' / 3.7m 13' / 4.06m
Pitch 5' / 1.5m
Complete Weight Aluminum 572 Lbs. / 259 Kg. 599 Lbs. / 271 Kg.
Complete Weight Galvanized 691 Lbs. / 313 Kg. 706 Lbs. / 320 Kg.
Complete Weight Aluminum Hybrid 762 Lbs. / 346 Kg. 782 Lbs. / 355
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum OR Galvanized
Longest Component 14'4" / 4.4m
Persons required for setup 3-5
Occupancy 60 Sit Down Dinner - 100 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
