20'x20' Hexagon Pinnacle Frame Tent

SKU
Original price $2,889.99 - Original price $3,599.99
Original price
$2,889.99
$2,889.99 - $3,599.99
Current price $2,889.99

The 20'x20' Hexagon Pinnacle Frame Tent is a shining example of innovation in tent design. This tent is part of our Pinnacle High Peak Cross Cable series, known for its clever and practical features. Here's why the Hexagon Pinnacle Frame Tent stands out:

1. Innovative Central Peak Tube: At the heart of this tent is a prominent central peak tube. This tube serves as a sturdy and eye-catching focal point for the tent, creating a distinctive appearance that's perfect for special events.

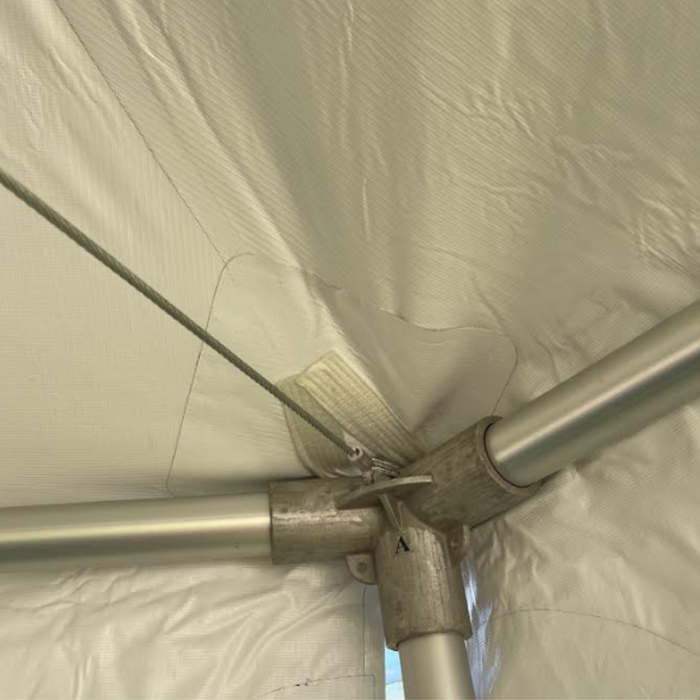

2. Cross Cable Support: Cross cables extend from each corner tube to the central peak tube. These cables provide exceptional stability to the tent, eliminating the need for interior frames or support poles. This design choice not only enhances the tent's aesthetic appeal but also maximizes the unobstructed space beneath the tent, making it ideal for various occasions.

3. Simplified Setup: The Hexagon Pinnacle Frame Tent is designed for ease of use. Setting up the tent is a breeze, and it often requires only two individuals. Thanks to the reduced hardware requirements compared to traditional frame or pole tents, the installation process is more straightforward and efficient.

4. Transportation and Storage: This tent is built with transportation and storage in mind. Its clever design reduces the amount of hardware needed, making it easier to transport and store when not in use. This can be a significant advantage for event planners and rental companies.

5. Versatile Applications: Whether you're planning a wedding, corporate event, trade show, or any other gathering, the Hexagon Pinnacle Frame Tent is a versatile choice. Its elegant appearance and functional design make it suitable for a wide range of occasions.

With its innovative features and practical design, the 20'x20' Hexagon Pinnacle Frame Tent offers a unique and hassle-free solution for your outdoor event needs. Whether you're looking for style, stability, or ease of use, this tent has you covered.


Width 20 ft. / 6.1m
Length 17 ft. / 5.2m
Area 244 ft² / 22.7 m²
Eave Height 8' / 2.4m
Overall Height 15'9" / 4.8m
Pitch 6'9" / 2.1m
Complete Weight 327 Lbs. / 148 Kg.
Series / Brand Pinnacle
Class Cross Cable
Center Pole No
Style / Shape High Peak
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant Yes
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum
Longest Component 9'3" / 2.8m
Persons required for setup 2-3
Occupancy 40 Sit Down Dinner - 67 Cathedral Seating

We guarantee this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
