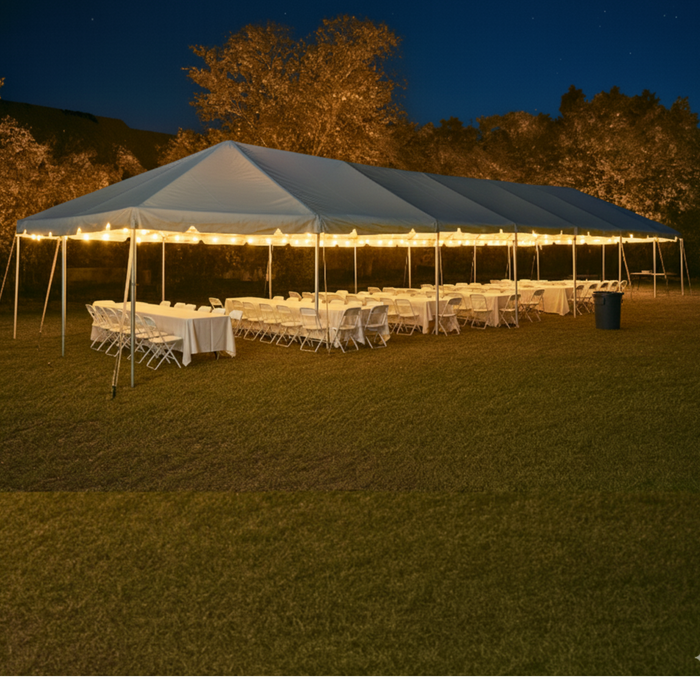

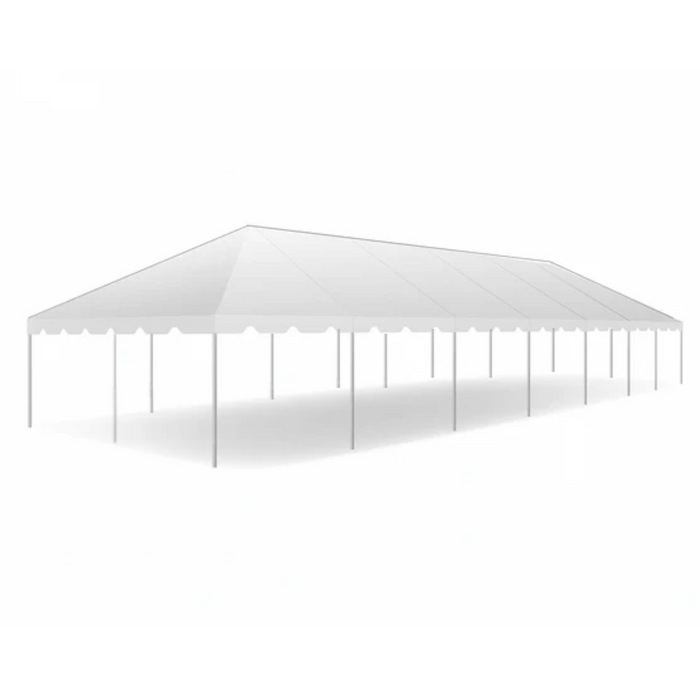

Beyond Tent's 20'x70' Classic Series West Coast Frame Tent delivers 1,400 square feet of completely clear-span, center-pole-free event space on a proven 2-inch anodized aluminum West Coast frame. Commercial-grade 16 oz blockout vinyl, NFPA 701 certified, any-surface setup — the commercial standard trusted by rental operators and event professionals across the country.
Beyond Tent specializes in commercial-grade event tents for rental operators and event professionals. Our focus on heavy-duty commercial inventory means expert guidance, direct support, and pricing that reflects what the industry demands.

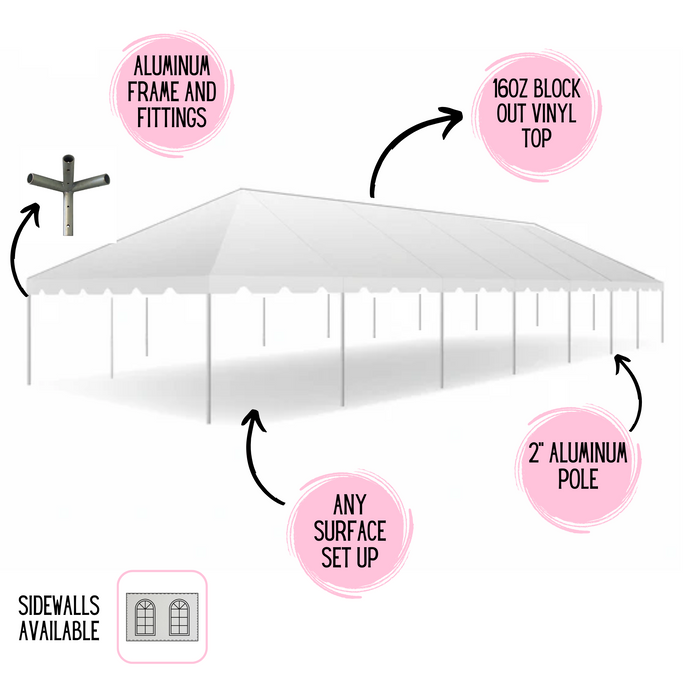

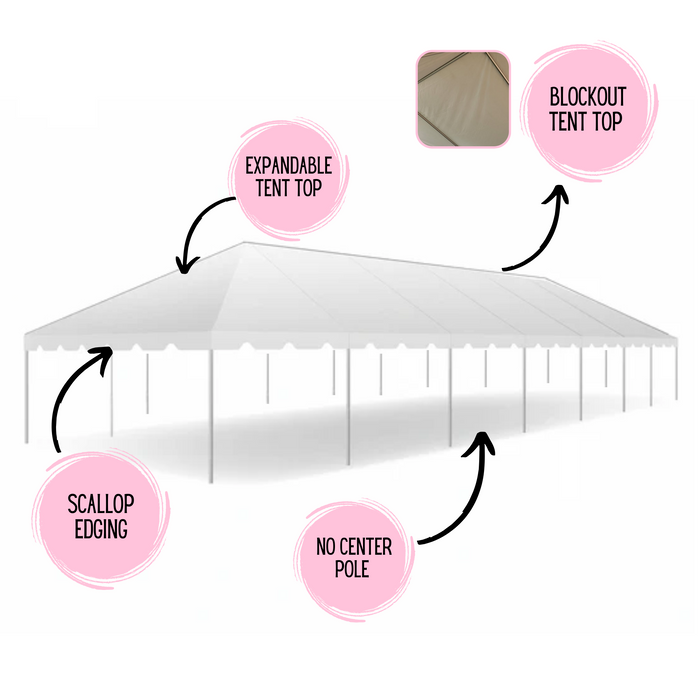

No center poles — open floor throughout. The West Coast frame supports the canopy entirely from the outside, keeping every square foot of that 1,400 sq ft open and usable. Guests move freely; no tables rerouted around structural poles.
Any-surface deployment. Stake into grass or ballast-weight onto concrete, asphalt, or any hard surface. The same tent, the same setup, any venue.
NFPA 701 certified for permitted events. Every canopy ships with a permanently attached flame-retardant label — the documentation fire marshals require for public assembly permits.
| Size | 20 ft x 70 ft |
|---|---|
| Square Footage | 1,400 sq ft |
| Eave Height | 7 ft standard · 8 ft optional |
| Overall Peak Height | 12'3" standard · 13'3" with 8' legs |
| Pitch | 4'3" |
| Center Pole | No — fully open interior |
| Frame Style | West Coast (industry standard) |
| Frame Material | 2" Aluminum Pipes and Aluminum Fittings |
| Pole Material | Anodized Aluminum |
| Complete Weight | ~975 lbs |
| Longest Component | 19'4" |
| Fabric Material | PVC Coated Polyester |
| Fabric Thickness | 16 oz / 540 gsm |
| Fabric Translucency | Blockout (95%+ light block) |
| Water Repellency | Waterproof |
| Flame Retardant | NFPA 701, California State Fire Marshal |
| UV Resistant | Yes |
| Mold & Mildew Resistant | Yes |
| Sidewall Compatible | Yes |
| Sidewall Connection | Internal Perimeter Tent Top Rope |
| Replaceable Sidewall Rope | 7/32" Polyester Sidewall Rope |
| Fail-Safe Hardware | R-Pins or Pin & Bail |
| Ideal Ground Setup | Asphalt, Blacktop, Soft Surface, Concrete, Grass |
| Long Term Installation Capability | 6 months or more |
| Minimum Temperature Level | 40°F |
| Anchoring System | Stakes on grass / Ballast weights on hard surfaces |
| Expandable | Yes — expandable via sectional tops |
| Custom Printing Available | Yes |
| Set Up Crew | 3–6 Persons |
| Commercial Grade | Yes |
| Made in the USA | Yes |
| Min/Max Handling Time | Ships in 1-3 business days |
| Shipping Method | LTL Freight |
| Assembled | Assembly Required |
| Warranty | 1 Year |

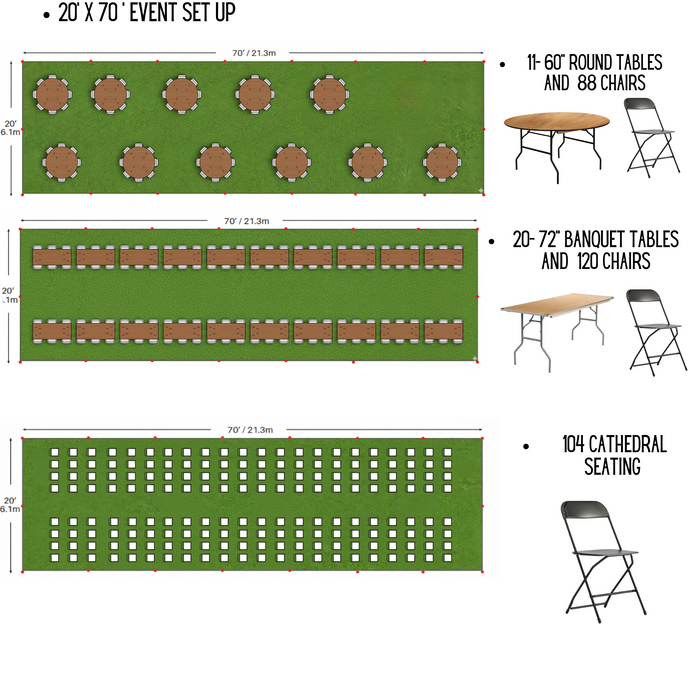

| Sit-Down Dinner (60" rounds) | ~140 guests |
|---|---|
| Banquet / Buffet Style | ~175 guests |
| Cathedral / Ceremony Seating | ~233 guests |
| Cocktail / Standing Reception | Up to 208 guests |
| Dance Floor + Dinner Combo | ~91 guests (with dance floor area reserved) |
| Large Wedding Receptions (120–140 guests) | At 1,400 sq ft, the 20x70 comfortably seats 140 guests at dinner rounds with room for a full dance floor, bar area, and head table — the right size for a full outdoor wedding reception without stepping up to a 30-wide structure. |
|---|---|
| Corporate Outdoor Banquets & Award Ceremonies | The 20x70 covers 140 dinner guests or 230 standing for corporate award dinners, team celebrations, and company retreats — deployable on any surface with zero structural obstructions inside the event space. |
| Festival Vendor Rows & Beer Gardens | The elongated 70-foot length makes the 20x70 ideal for vendor row configurations and covered beer gardens at festivals — creating a long covered aisle with multiple vendor stations under one continuous structure. |
| Military & Government Field Operations | At 1,400 sq ft with any-surface anchoring capability, the 20x70 serves as a field operations tent, briefing shelter, or staging area for military deployments, emergency management, and government field operations. |
| Outdoor Trade Shows & Expo Events | Trade shows and outdoor expos use the 20x70 to create structured exhibition lanes — the 70-foot length accommodates multiple exhibitor booths in a straight-line layout under a single commercial-grade covered structure. |
| Tent Rental Company Fleet Step-Up | Operators stock the 20x70 as their large 20-wide offering — capturing events that outgrow the 20x60 while serving clients who prefer a longer structure over the wider footprint of a 30-wide tent. |
