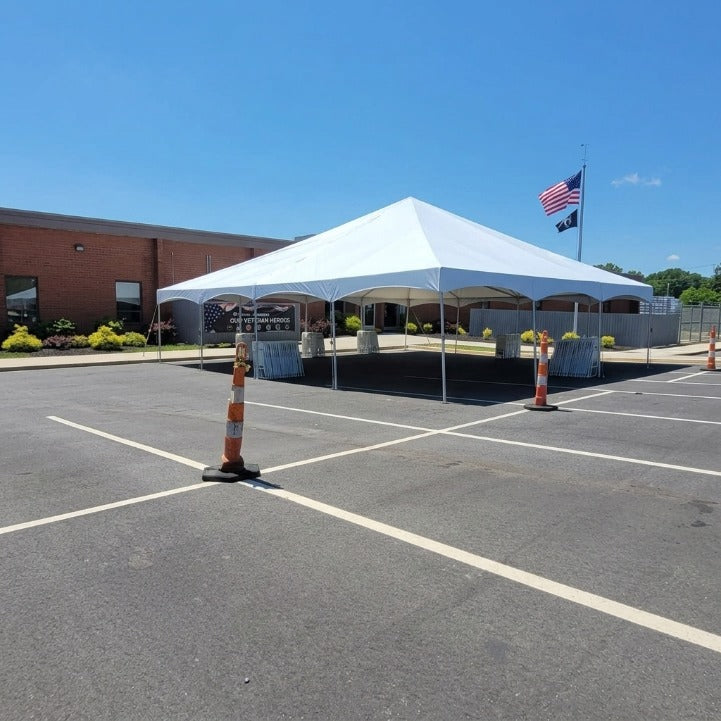

How to Anchor a Frame Tent on Concrete, Asphalt, or Any Hard Surface

Setting up a frame tent on grass is straightforward — drive your stakes, attach your ratchet assemblies, and you're done. But a large portion of commercial tent events don't happen on grass. They happen on asphalt parking lots, concrete venue pads, brick pavers, rooftop terraces, and hard-pack dirt surfaces where a standard stake won't penetrate more than a few inches.

Hard-surface tent anchoring is one of the most common technical questions rental operators face, and one where the stakes — literally — are highest. An improperly anchored tent in any wind event is a safety hazard. This guide covers everything you need to know to anchor a West Coast frame tent safely and compliantly on any hard surface.

Why frame tents work on hard surfaces when pole tents don't

This is the first important point: not all tent types are equally suited for hard-surface deployment. Pole tents rely on ground stakes for their structural integrity — the stakes provide the outward tension that holds the entire canopy system in shape. Without deep stake penetration, a pole tent is structurally compromised.

West Coast frame tents work differently. The frame is a self-supporting rigid structure — the aluminum pipes and steel fittings create a stable skeleton that holds its shape independent of what's happening at the base. The anchoring system on a frame tent isn't holding the structure together; it's preventing the entire structure from moving laterally in wind. This distinction makes frame tents far more adaptable to hard surface deployment, because the anchoring requirement is different — and achievable with ballast rather than stakes.

Understanding ballast anchoring

Ballast anchoring means using heavy weight at each tent leg base instead of ground stakes. The weight creates enough downward force to resist the lateral and uplift forces that wind creates on a tent canopy.

The critical question is: how much ballast weight do you need per leg?

The honest answer is that the correct number depends on variables that no general guide can fully capture: your tent size, local wind speed design requirements, canopy fabric weight, and any local ordinances or fire marshal requirements that apply to your specific event. That said, industry practice for commercial West Coast frame tents generally uses these starting points:

• Small tents (10x10 to 20x20): 40–100 lbs per leg
• Mid-size tents (20x30 to 30x40): 100–200 lbs per leg
• Large tents (30x60 and above): 200–400+ lbs per leg

These are working estimates, not engineering specifications. For any large tent or public event, consult the ballast requirements specified by your tent manufacturer, your local fire marshal, or a licensed structural engineer familiar with temporary structures.

Types of ballast systems

Water barrels and water weights

Collapsible water barrels or water weight bags are the most practical ballast solution for most rental operators. They ship and store empty (lightweight), fill at the event site from any water source, and provide a predictable weight once filled — a 55-gallon barrel weighs approximately 458 lbs when full. Multiple smaller water bags give you more flexibility to distribute weight exactly where it's needed.

Concrete ballast blocks

Solid concrete blocks — typically 25 to 50 lbs each — can be stacked at each tent leg base. They're inexpensive and available at any hardware or masonry supply store. The disadvantage is transport weight: for a large tent with 12 legs requiring 200 lbs each, you're moving 2,400 lbs of concrete in addition to the tent itself. Practical for local deployments, impractical for operators who transport tent equipment long distances.

Dedicated tent ballast plates and frame weights

Purpose-built tent ballast plates attach directly to the tent base plate and accept stacked weight plates similar to gym weights. These are the cleanest professional solution — they keep the weight concentrated precisely at the leg base, they look intentional rather than improvised, and they don't require sourcing water or hauling concrete blocks. Beyond Tent stocks tent anchoring accessories designed for this application.

The setup process: anchoring on asphalt or concrete

Here's the step-by-step process for deploying a West Coast frame tent on a hard surface:

Step 1: Lay out and mark your footprint. Before assembling anything, mark the exact position of every tent leg base using chalk or tape. Getting the footprint right before assembly prevents the need to shift a partially assembled tent — which is both difficult and potentially damaging to your frame components.

Step 2: Assemble the roof skeleton on the ground. Build the full roof skeleton at ground level — all rafters, crowns, and side tees connected — directly on the marked footprint. The tent top gets laced over the frame at this stage before any legs are inserted.

Step 3: Insert legs and lift. With the roof assembled and the top laced, insert the perimeter legs into their fittings. The crew then lifts the structure simultaneously — walking it up from the perimeter inward — until all legs are vertical and the tent is at full height.

Step 4: Place base plates and attach ballast. With the tent standing, position your base plates flat on the hard surface and begin attaching or stacking your ballast system at each leg. Ensure the weight is bearing directly down on the base plate, not leaning or offset in a way that would allow the leg to shift.

Step 5: Tension and check. With ballast in place, check the full perimeter for level, proper rafter angle, and consistent tension on the sidewall rope if sidewalls are being installed. A frame tent on a hard surface should look and feel as stable as one staked into grass — if it feels loose or shifts under light lateral pressure, add more ballast weight before the event begins.

Fire marshal requirements for ballast anchoring

If your event requires a fire marshal inspection — which any permitted public assembly tent event does — your ballast anchoring system will be part of that inspection. Fire marshals in most jurisdictions want to see:

• Documentation or manufacturer specifications for the minimum ballast weight required per leg for your specific tent model
• The actual ballast in place at each leg base at the time of inspection
• No obstructed emergency exit paths around the tent perimeter

Some jurisdictions have specific ballast weight requirements written into their temporary structure codes. Check with your local fire marshal before the event to confirm compliance requirements specific to your area. Beyond Tent tents come with NFPA 701 certification labels that fire marshals specifically look for — but ballast compliance is a separate operational requirement that's your responsibility at setup.

Common hard-surface anchoring mistakes

Underestimating wind load. A clear, calm morning at setup does not predict afternoon conditions. Size your ballast for the wind conditions that could occur at any point during the event, not just the conditions at setup time.

Using ballast that can shift or tip. Stacked loose concrete blocks without containment, water bags that aren't fully filled, or any ballast system that isn't mechanically attached to the tent leg base is a risk. Ballast that shifts or tips is worse than insufficient ballast — it creates a false sense of security before failing.

Not accounting for uplift. In high-wind conditions, a tent canopy generates significant upward lift force. Your ballast must address both lateral (sideways) and uplift (upward) forces simultaneously. This is why ballast weight requirements are higher than most operators initially expect.
